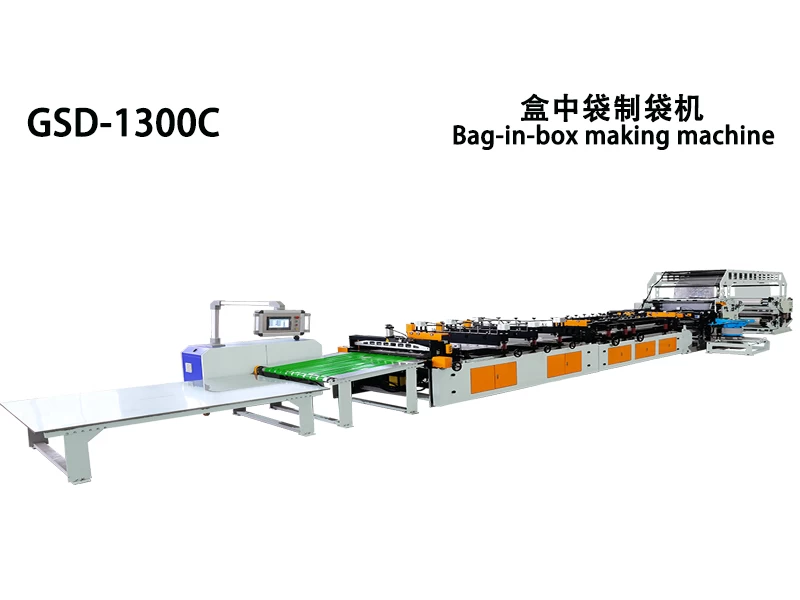

Four side sealing & Six Layers Unwinding Valving Machine for Bag-in-Box Bag
●Application:

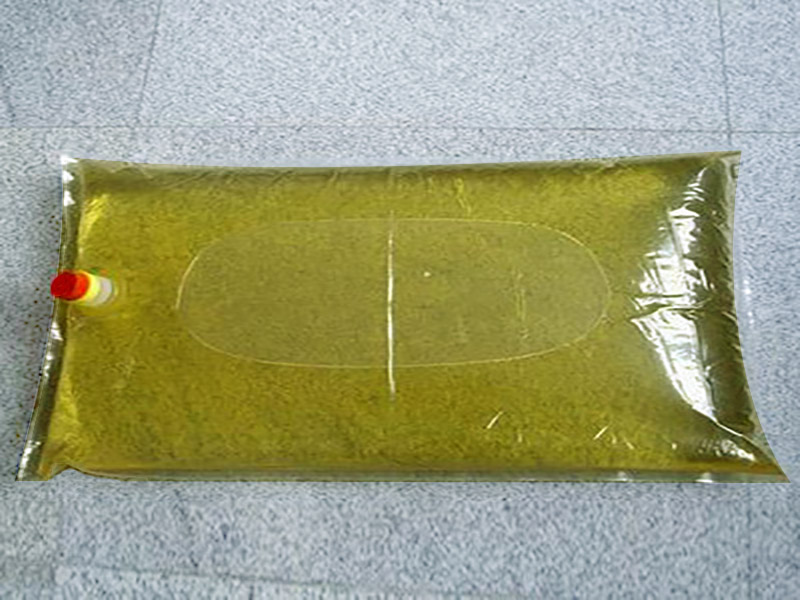

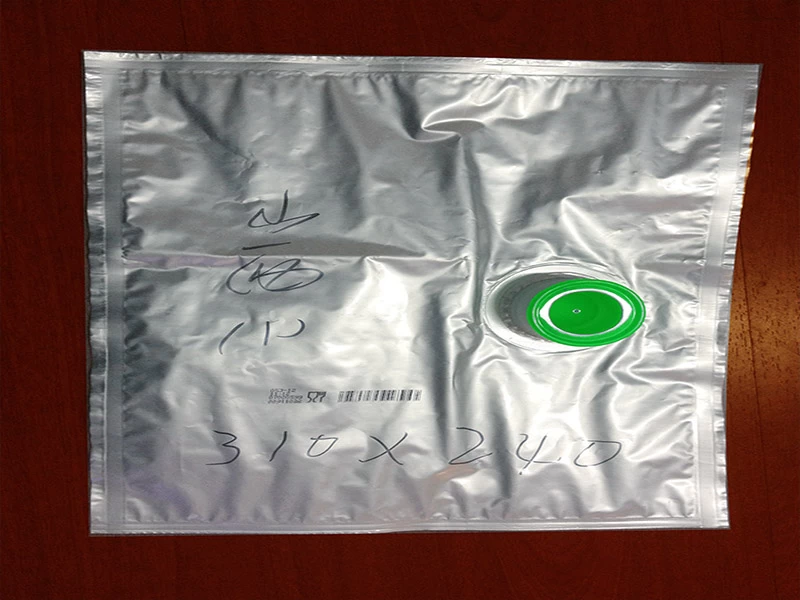

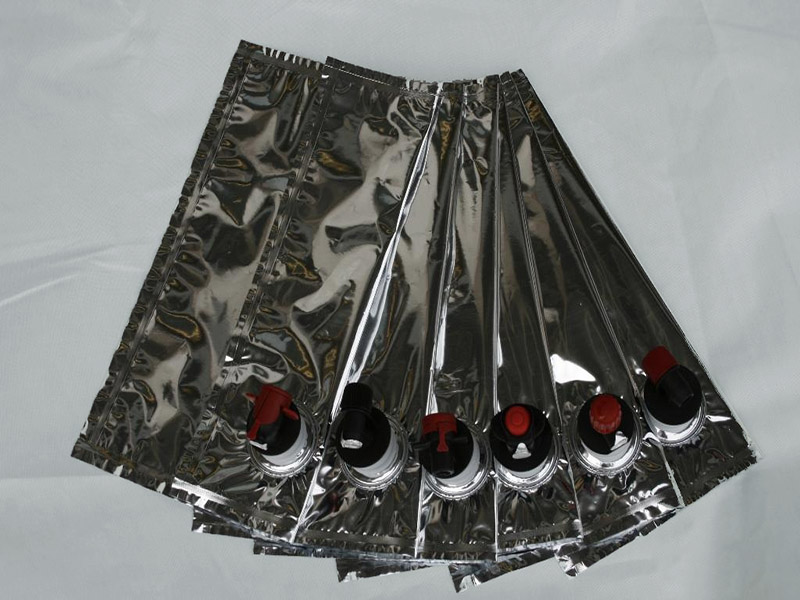

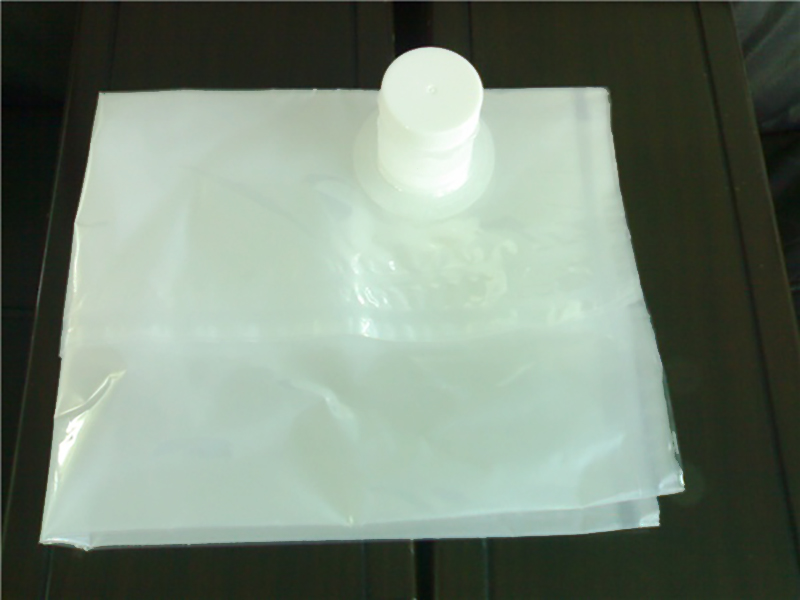

GSD-1300C four side sealing and six layers unwinding valved bag machine is widely used to produce bag in box for wine, fruit juice, spring water and others to ensure the good safety and make transportation convenient. Bag in box made in our machine has advantages in tightness and flexibility to protect goods well.
●Electrical equipment configuration:
1. 10-inch touch screen of WEINVIEW in Taiwan and Panasonic PLC control system
2. 2kw servo motor and drivers for 3 sets
3. Deviation correction controllers for unwinding for 6 sets
4. Unwinding control system in variable frequency (including variable frequency machines in 0.75kw for 6 sets)
5. Unwinding tension controllers (to control magnetic powder brakes) for 6 sets
6. Temperature control in 12 lines and two sets of independent temperature-control modules
7. Main motor in power of 5kw and servo motor
8. Shaking-head control cabinet for one set
●Technical parameters:
Machine configuration: type 1300 six-multiple-material & three-axle bag machine
Machine function: four-side-sealing bag-in-box making machine
Suitable base material: plastic laminated film such as BOPP, COPP, PET, PVC and nylon, as well as multilayer laminated film, aluminium laminated film, paper plastic laminated film, pure aluminium foil laminated film and bag-in-box bag
Max pouch-making speed: machine speed for 30 pcs/min (range by pouch-making length and type)
Max linear speed of unwinding:≤20 m/min (range by pouch-making length and type)
Pouch-making dimension: Length: 600mm N=1, 2, 3, 4, 5, 6 (multiple material feeding) Width: 1260mm
Max material roll dimension:￠700*1300 (diameter * width)
Positioning accuracy:≤±0.3mm
Numbers of hot knives and cooling knives: 20 units
Numbers of temperature control lines: 12 lines
Temperature setting range: room temperature∽400℃
Total power: 65kw
Machine dimension: 18500*3000*2200mm (length*width*height)
Color: body of stainless steel cover in silvery white
Control system type: GS high-speed bag machine control system
I Equipment configuration and parameters
●Unwinding devices
Structure type: horizontal station (composed of magnetic powder brake, cylinder, swing roll, frequency converter, motor, sensor for drawing roller and control system)
Drive devices: discharging motor & reduction gearbox & sprocket wheel & roller drive
Feeding shaft: air shaft with pneumatic locking units
Feeding way: manual charging with pneumatic locking
●Discharging tension
Control mode: automatic control in unit
Conditioning drive: PID conditioning, PWM drive
Detection mode: conductive linear position sensor and rotary encoder
●Deviation correction devices: ultrasonic deviation correction
Structure: adjustment towards left and right by screw pair
Drive: low speed & synchronous motor of correction controller drive
Control mode: single & dual photoelectric sensors control
Detection mode: test by reflective photoelectric sensor
Tracking accuracy:≤0.5mm
Adjustment range: 150mm
Search range of photoelectric sensor:±50mm, adjustable, section of limit switch
●Opposite-sidepiecesin upper and lower
Structure: pressed structure with single-end spring slotted adjustable rubber roller
Adjustment: manual adjustment (by hand wheel)
●Longitudinal-sealing devices
Structure: hot pressing devices for three sets and cooling devices for three sets, both arranged in longitudinal and bridge structure
Drive: main motor drives power rod
Transmission: eccentric mechanism with connecting rod’s vertical movement
Numbers: the former and the latter respective for three groups
Length: 1340mm for heat sealing and 650mm for cool sealing
●Traverse-sealing devices
Structure: bridge structure with hot pressing devices arranged in horizontal
Drive: main motor drives power rod
Transmission: eccentric mechanism with connecting rod’s vertical movement
Numbers: 2 groups
Length: 1340mm
●Film tractiondevice
Structure: pressed & friction structure with rubber roller
Drive: digital AC servo system
Transmission: synchronous belt and synchronous pulley running at gear ratio of 1∶3
Traction: friction drawing & intermittent motion from two groups of rubber rollers in upper and lower
Control mode: PLC centralized control, synchronous fixed length and middle tension control
Detection mode: the proximity switch provides signals such as upper and lower limit of frame
●Main transmission devices
Structure: push-pull four-bar linkage structure with crank rocker
Drive: main motor of 4kw & servo motor
Transmission: main drive motor moves Taiwan Planetary gear motor of 1∶30
Control mode: PLC centralized control
Motion pattern: main motor drives frame into vertical motion
●Automatic positioning devices
Photoelectric detection accuracy: 0.01-0.25mm
Positioning precision of servo motor: 0.1mm
Integrated positioning accuracy:≤±0.3
Photoelectric search range: 0-10mm (set by computer)
Rectification range: 0-10mm (set by computer)
Positioning rectification mode: current compensation for servo tracking
●Temperature control devices
Detection mode: test by type E thermocouple
Control mode: PLC centralized & modular control, SSR(solid state relay) drive
Temperature setting range: room temperature∽400℃
Temperature measurement points: the middle of electric heating block
●Cutter
Structure: servo slide cutter device
●Multiple materialfeedingdevice
Structure: motion of fixed cylinder
Control mode: PLC centralized control
Drive: DC 24V drive solenoid valve with short-circuit protection
Action mode: combined motion by four groups of traverse-sealing
Multiple in-feed number: 2-6 times (set it on touch screen)
●Punching device
Numbers: two sets of basic configuration
II Supportingfacilities(prepared by clients)
Power supply: three-phase alternating current for 380V±10%, 50Hz
Capacity:＞65kw
Air supply: 40 L/min (0.6Mpa)
Cooling water: 10/min
III Optionalequipment (not included in quotation)
1. Adding punch
If you want an extra group of punch different from punch devices of basic configuration, please inform us in advance
2. Irregular sealing cutter
Customized by client’s requirements
3. Air compressor
Clients purchase it according to requirements
IV Packing
Plain & moisture proof packaging
V Random accessories
|
No
|
Name
|
Specification
|
Unit
|
Quantity
|
Note
|
|
1
|
Slotted screwdriver
|
6”
|
pc
|
1
|
|
|
2
|
Phillips screwdriver
|
6”
|
pc
|
1
|
|
|
3
|
Allen key
|
|
set
|
1
|
|
|
4
|
Adjustable wrench
|
10”
|
pc
|
1
|
|
|
5
|
Oil can
|
|
pc
|
1
|
|
|
6
|
Cutter
|
|
pc
|
1
|
|
|
7
|
Silica gel cap
|
10
|
pc
|
4
|
|
|
8
|
Thermocouple wire
|
Type E
|
pc
|
2
|
|
|
9
|
Winding machine
|
Type 500
|
set
|
2
|
|
|
10
|
Technical document
|
|
set
|
1
|
|
