Automatic Garage Roller Shutter Door Roll Forming Machine

The Automatic Garage Roller Shutter Door Roll Forming Machine is rolling forming steel sheet into shutter door pieces with strong joint all small pieces together, no fall down chance.


  • Encoder BrandOmron
  • Cutting TypeBlanking
  • Cutting Blade MaterialCr12
  • Shaft Diameter65mm
  • Driving Motor4KW
  • Forming Station15
  • Covered Width76
  • Material Width136mm
  • Material Thickness0.6-1.0mm

Steel metal doors forming machine, garage door roll forming machines, door rails forming machines are acceptance for customizing.


Product name: Automatic Garage Roller Shutter Door Roll Forming Machine

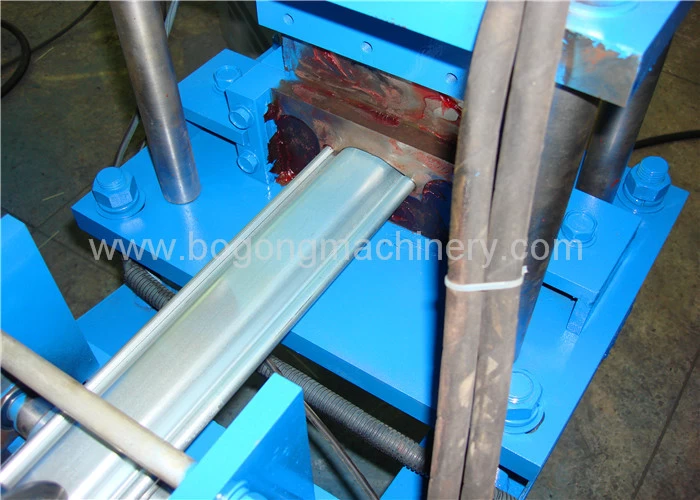

Sheet Sample

This Automatic Garage Roller Shutter Door Roll Forming Machine can roll forming the door pieces for garage doors, shop doors, storage room doors and used in other steel construction building doors. The raw material width is 122mm, suit for 0.6-1.0mm thickness galvanized sheet. See below sample for reference.

galvanized rolling shutter door roll forming machine


Main Machine Details

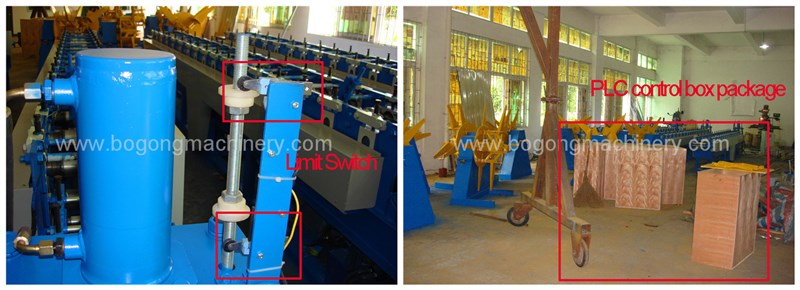

 In order to keep safe, all the Automatic Garage Roller Shutter Door Roll Forming Machine  cutting end has installed limited switch for tracking upper cutting blade working action won't  go up or go down too much. This Limited switch is controlled by electric system, full intelligent to tracking cutting action.

Before loading into container inside, all the PLC control box will be well packed by plywood case, so there is not accident for PLC control system during the way for buyer's site.

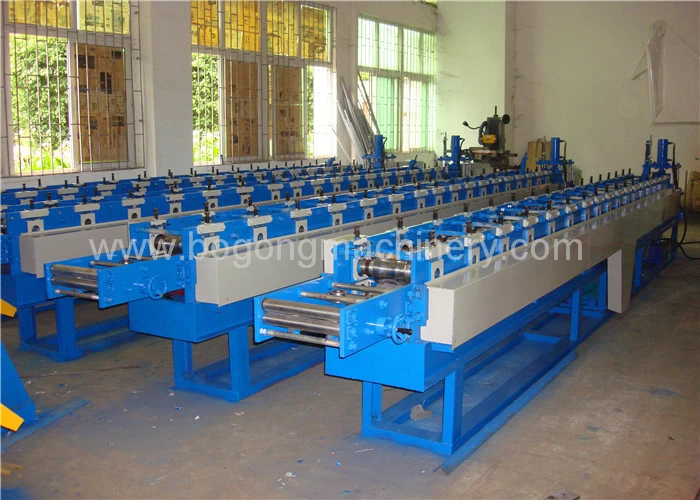

garage door roll forming machine

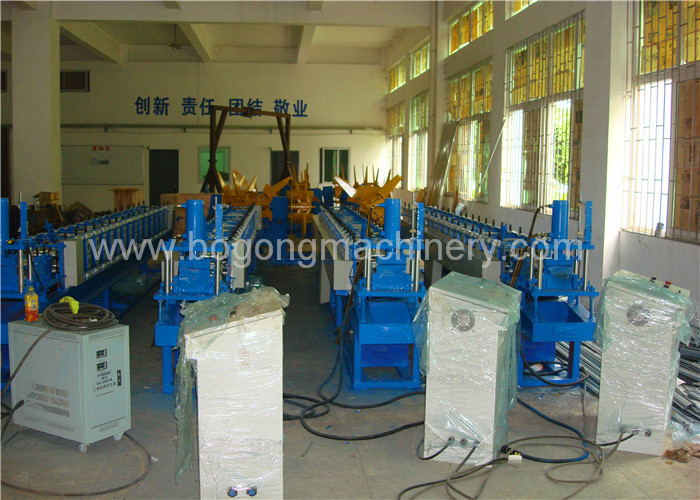

We Bogong Machinery has plenty of experience to manufacture Automatic Garage Roller Shutter Door Roll Forming Machine well, and we know how to ensure the important position of whole shutter door samples, so batch and batch shutter door roll forming machines have been shipped to the world market

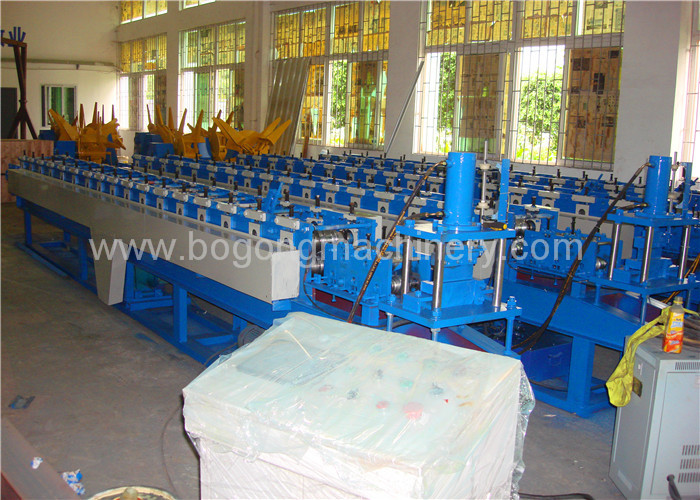

automatic roller shutter door roll forming machine

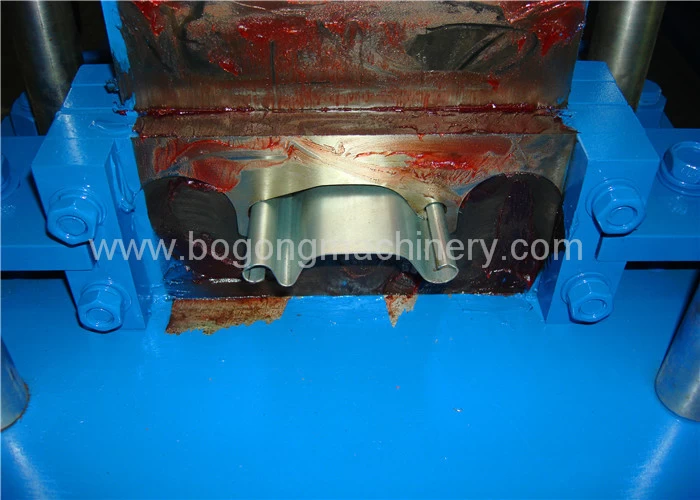

For Automatic Garage Roller Shutter Door Roll Forming Machine, the most important is to produce good effective joint shutter door panel, see below jointed effect picture and design drawing, no matter positive direction or negative direction, all should keep the overlap is good, never fall down from other pieces.

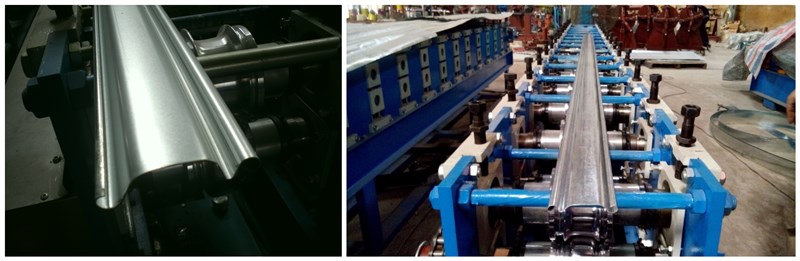

steel shutter door roll forming machine



Technical Parameters

Parameters

Specification

Voltage

380V/50HZ/3PH or customized

Driving Motor

4KW

Forming Steps

 15steps

Working Speed

10-15m/min

Thickness for Steel

0.6-1.0mm

Shaft Diameter

65mm

Shaft Material

High grade 45# forged steel

Roller Material

G45# steel, CNC lathe,polished and chrome plated

PLC Cabinet

Schneider, Delta

Encoder

Omron

Sprocket Wheel

45 steel high-frequencies quench

Cut-off System

Post cutting, no waste cutting

Cutting Blade Material

Cr12 steel

Machine Frame Material

Fine welded structural steel;

Raw Material

Galvanized steel

Painted Color

Blue+Orange Or Customization

Overall Size

7500*950*1050mm

Weight

2500KGS
