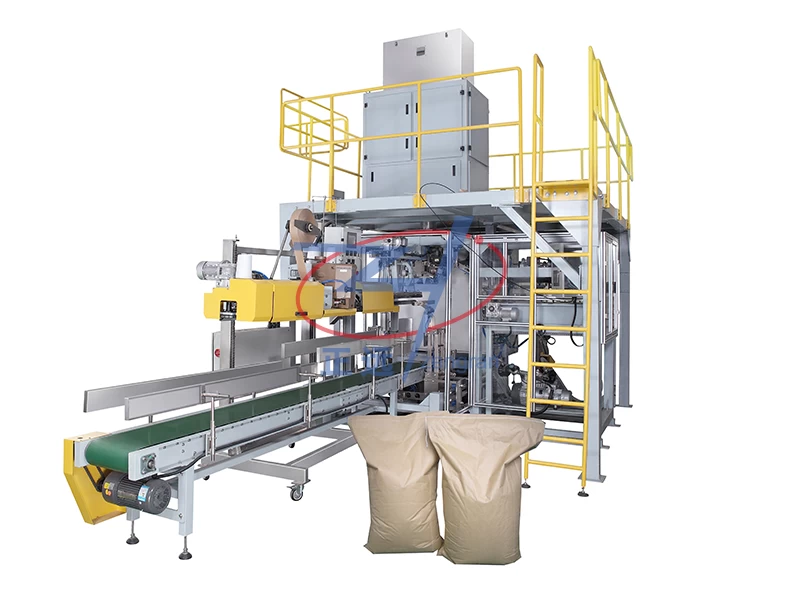

Automatic GFCK50 Granule Heavy Bag Packaging Machine

1

This fully-automatic bulk bag packing machine includes one set of DT2 bucket elevator, one set of servo weighing, one set of GFCK50 granule heavy bag packaging machine, one set of sewing/sealing machine.

2

This machine integrates the functions of feeding, weighing, filling, bag-feeding, bag-opening, conveying, sealing/sewing, etc.

3

The machine has good sealing performance and can meet customer’s hygienic requirements.

4

All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.

Material of premade bag

Compound plastics film ,paper bag etc. ( the bag material can be assimilated by our bag feeding machine )

1

Packaging speed

5kg~10kg; (15-20 bags/min)

10kg-25kg;  (12-15 bags/min)

25kg~50kg; (10-12bags/min)

2

Weighing accuracy

±0.1- 0.2%;

3

Power supply

380V±10%  50Hz   5.5KW

4

Machine weight

2000kg

5

Machine size

6000*2000*4900mm

6

Air supply source

0.6MPa, 0.5m³/min
