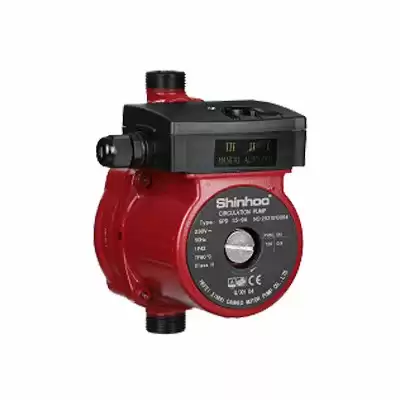

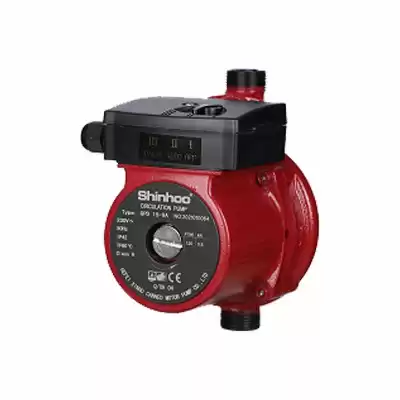

Automatic GPD15-9A Boosting Pump

The centrifugal pump has the outstanding advantages of small volume, simple operation and long service life.A recirculation pump that suitable for domestic water pressure boosting in single- and two-family houses is suitable for drinking water with a corrosion-resistant pump housing. Automatic start and stop facilitate your use.Low energy consumption help save the energy and protect environment.With automatic flow swith the pump works automatically when the tap is opened, to get comfortable water pressure.Simple and compact structure, small volume and light weight gives you an excellent use experience.



Shinhoo GPD15-9A is a domestic booster designed for pressure boosting of drinking water and domestic water supplied from an external source in residential homes. The booster pumps increase the pressure of domestic water to make the required pressure available at showers, taps and other tapping points.

Port-to-port l.: This pump has an inlet and outlet port of 3/4. The pressure rating of the pump corresponds with PN 10 and a port-to-port length of 160 mm.
The GPD15-9A provides the comfort of constant water pressure with automatic start and stop. This is controlled by the integrated flow switch ensuring optimal start/stop of the booster pump according to demand. The design is robust and built upon corrosion-free materials and catachresis-coated cast iron pump housing to ensure a long lifetime. The pump is a canned rotor pump type where pump and motor form an integral unit without shaft seal. This pump must always be installed with horizontal motor shaft.

  • Integrated flow switch: Automatic start and stop according to demand
  • Low noise level
  • Easy installation: plug and pump compact inline booster
  • Integrated non-return valve
  • Improved corrosion resistance
  • Copper connectors in the delivery



GPD15-9A Boosting Pump


Model:   GPD15-9A

Power:  120w

Voltage: 230w

Frequency: 50hz

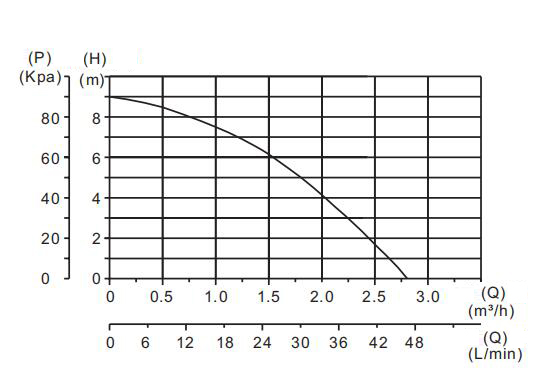

Max Flow: 1.78m3/h

Max Head: 9m

Rated Head: 7.5m

Diameter:  15mm

IP Grade: IP42

Temperature: 2 -60℃


Product Tags Booster pump system          Water pressure booster pump          Domestic water booster pump          Automatic pressure booster          booster pump for central heating          Canned Motor Pump
