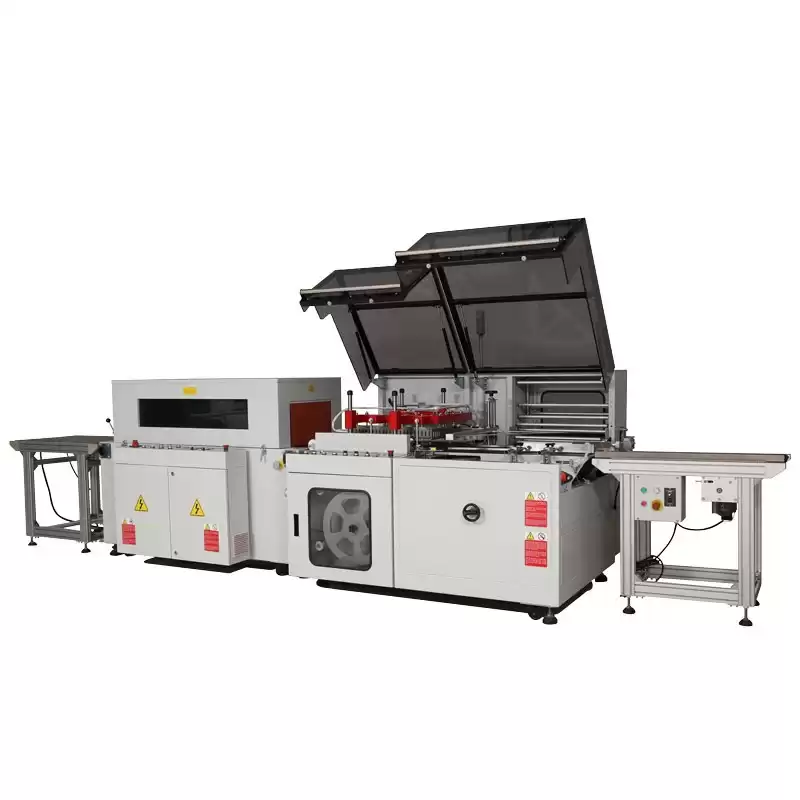

Automatic Heat Pof Pe Pvc Shrink Film Wrapping Packaging Machine
Customized And OEM Service Available
I. Product Description:
Film shrink wrap machine with heat tunnel is ok for packing many kinds products. Such as commodities, cosmatics products, some goods in small box,book, wooden board and so on
A heated arm is raised and lowered as products pass underneath. Shrink film is then heated and sealed around the product.
Shrink wrap packaging machine is mainly use in foods industries,supermarket, a small shop, even other industries.
II. Technology Parameters of Automatic Shrink Wrap Machine
Mechanical dimensions: L1685*W828*H1480mm Power supply: 1PH 220V 50HZ 2.5KW
Use External Gas Source (kg/cm²): 6.0-8.0 (Provided by Factory, Connected to Outer Diameter 10mm Trachea)
Maximum packing size: length + height < 430mm wide + height < 400mm Packing speed: 0-15 (piece/minute) (varying according to product size) Horizontal height of feed belt: 800+50mm
III. Feature of box shrink wrap machine
Customized Shrink Tunnel Length
High Temperature Resistance and Stickness Proof
Anti-Cutting Device
Up to 40 pcs/min
NO Operator
Stainless Steel Heating Tube
IV. automatic sealing and cutting machine
|
Items
|
Details
|
|
Film feeding system
|
Electric machinery
|
packaging film uniform, stable
|
|
Induction switch
|
"OMRON" Brand, Accurate Control of Film Delivery
|
|
Roller
|
Nickel plating on steel drum
|
|
Punch
|
Adjustable pinhole number
|
|
Conveying system
|
Belt
|
PU Conveyor Belt, Increase Close Connection Device
|
|
Electric machinery
|
"ZD" brand, it ensures smooth conveying with automatic conveying function
|
|
Product testing
|
"BANNER" brand, For accurate and sensitive detection of product positioning in the process of delivery
|
|
Sealing system
|
Heat source
|
Stainless steel heating tube, fast heating, long service life
|
|
Sealing knife
|
Applying an alloy steel knife with anti-sticking and high temperature resistance, the knife is coated with Teflon non-stick layer outside.
|
|
Sealing knife temperature control
|
"OMRON" Digital Display Temperature Controller and Thermal Sensitivity Should be Controlled, Temperature Adjustable 0-200 C
|
|
Seal protection
|
"OMRON" effectively prevents wrapping objects from being sliced by mistake and ensures operator's safety.
|
|
Cylinder
|
"Longyun" Brand, Accurate Control of Sealing Speed, Guarantee Sealing Quality
|
|
Recovery system
|
Electric machinery
|
"ZD" Brand, Guarantee Accurate and Uniform Recycling of Waste
|
|
Induction switch
|
Using "SICK" to accurately control waste recovery time
|
|
Control system
|
PLC
|
"OMRON" Brand
|
|
Intermediate relay
|
"OMRON" Brand
|
|
Emergency switch
|
"SCHNEIDER" Brand
|
|
Power switch
|
"SCHNEIDER" Brand
|
