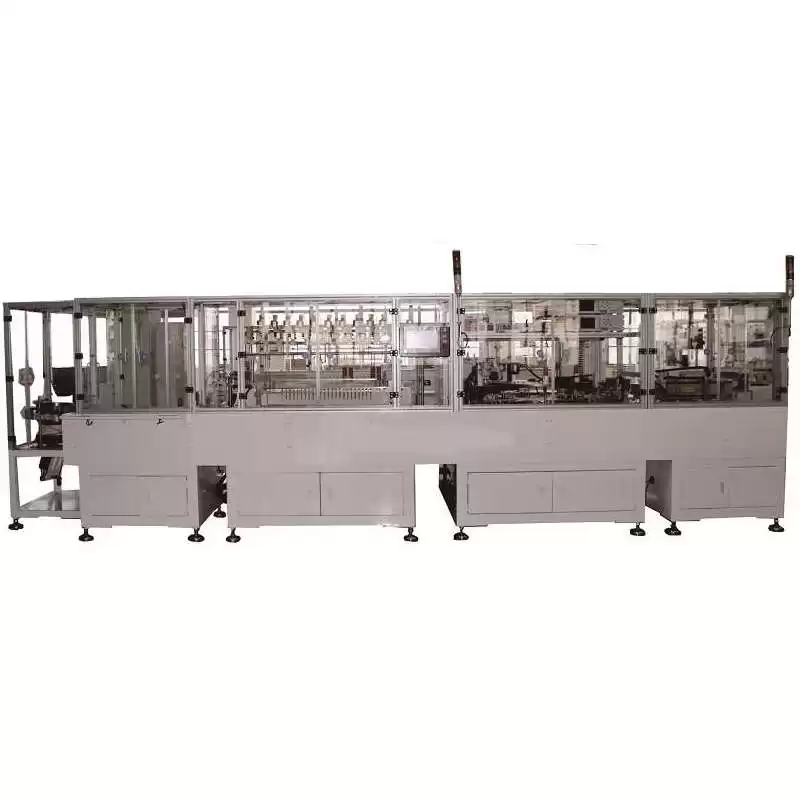

High Precision Densely Packed Winding Production Line
Machine Features：
1. This Coil Winding Production Line is applicable for large size bobbins, such as contactor coil and solenoid valve coil.
2. Multiple processes can be completed on the line including automatic vibration feeding, winding, taping, soldering, testing, terminal reforming ,laser marking ,printing, palletizing and so on.
3. There are three types of soldering processes: dip soldering, Frequency Welding, Resistance Welding and LBM(Laser Beam Welding). They are determined based on the coil specifications
4. The Automatic Winding Machines with big pitch can be connected in parallel to improve capacity and efficiency.
5. The state-of –the-art controller of MECHATROLINK-II is employed to equip the winding machine.
Technical Parameters:
|
Model #
|
STC-1909
|
|
Control System
|
YASKAWA MECHATROLINK-II FCS (Fieldbus Control System)
|
|
Spindle Number
|
8,12,16,24,32
|
|
Spindle interval
|
25,30,40,50,60,80,100,120mm
|
|
Spindle speed
|
Standard: 1,000RPM, MAX:3,000RPM
|
|
Moving precision
|
±0.01mm
|
|
Wire diameter
|
Ф0.2-Ф0.6mm
|
|
Number of layers
|
Max 30
|
|
Spindle motor power
|
1.8KW/2KW/3KW/4KW/5KW
|
|
Total motor power
|
3KW/4KW/5KW/6KW/7KW
|
|
Revolution angle
|
± 1°
|
|
End processing number
|
Not limited
|
|
Max swing diameter
|
Ф20mm,Ф25mm,Ф35mm,Ф45mm,Ф55mm,Ф75mm,Ф95mm,Ф115mm
|
|
Power supply
|
AC 380V 50HZ
|
|
Air pressure
|
0.4-0.6Mpa
|
