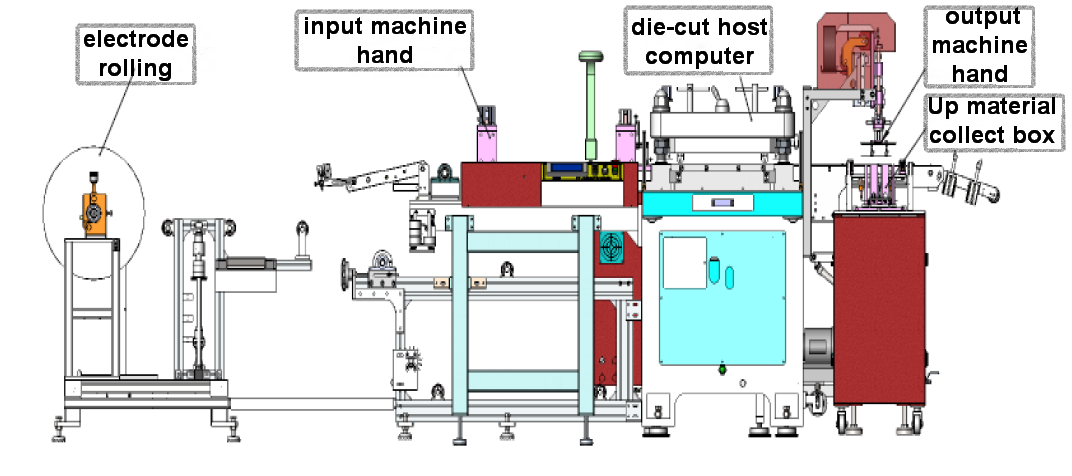

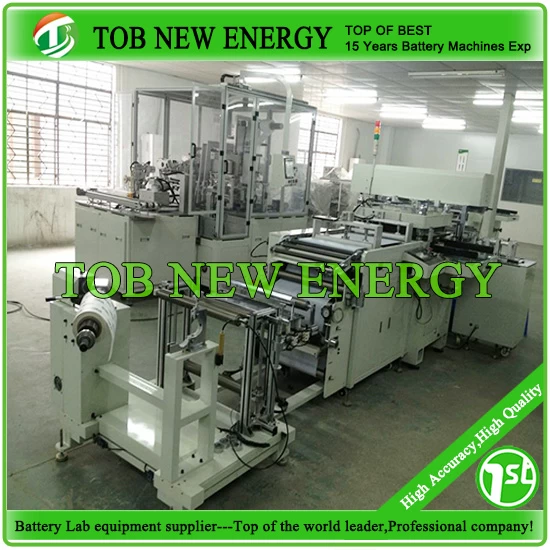

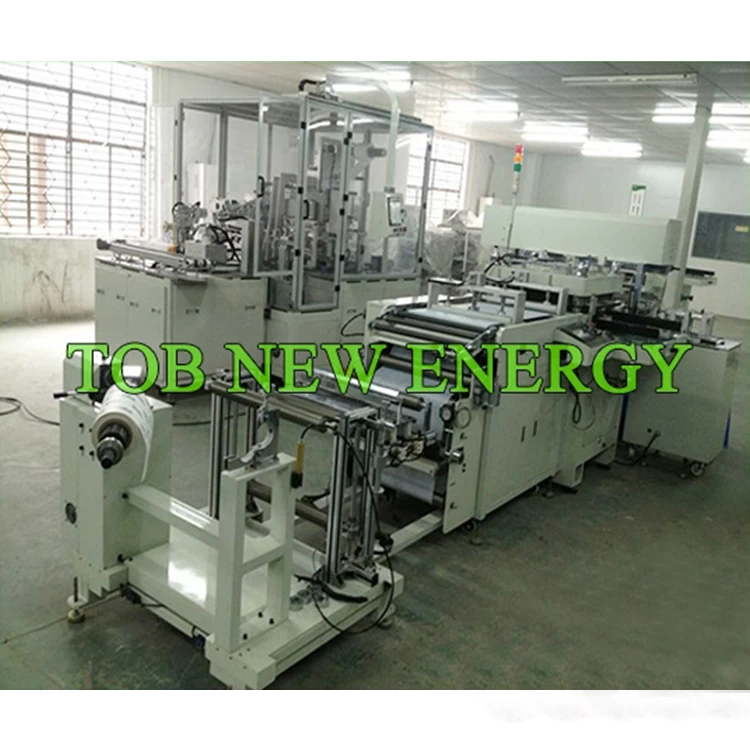

Automatic high-precision electrode forming machine
SPECIFICATIONS
TOB-LPC520 series machine technical parameters:
|
Forming speed
|
20-30 punching per minute.
|
|
Maximum electrode width
|
520mm (actual maximum 540mm)
|
|
The largest size electrode forming
|
500mm*500mm
|
|
Electrode thickness
|
0.06 ~ 0.25mm
|
|
Cutter life
|
about 30,000 times
|
|
Forming burr
|
≤0.015mm
|
|
After punching the edges dusting
|
≤0.15 mm
|
|
PET conveyor belt life
|
recycling approximately 10,000~30,000 times
|
|
Electrode box size
|
according to customer-supplied
|
|
Failure rate of the device
|
≤5% (only caused by the equipment failure)
|
|
Power required
|
6.0KW
|
|
Voltage
|
AC380V ± 10%
|
|
Air pressure required
|
0.5 ~ 0.7Mpa
|
|
Vacuum required
|
-90Kpa ~ -60Kpa
|
|
Weigh
|
4000KG
|
|
Dimension
|
(approx) length: 4300MM * Width: 2000MM
* High: 1850MM
|
|
Other: According to electrode specifications provided by the customer,
provide a laser sheet die cutter free.
|
