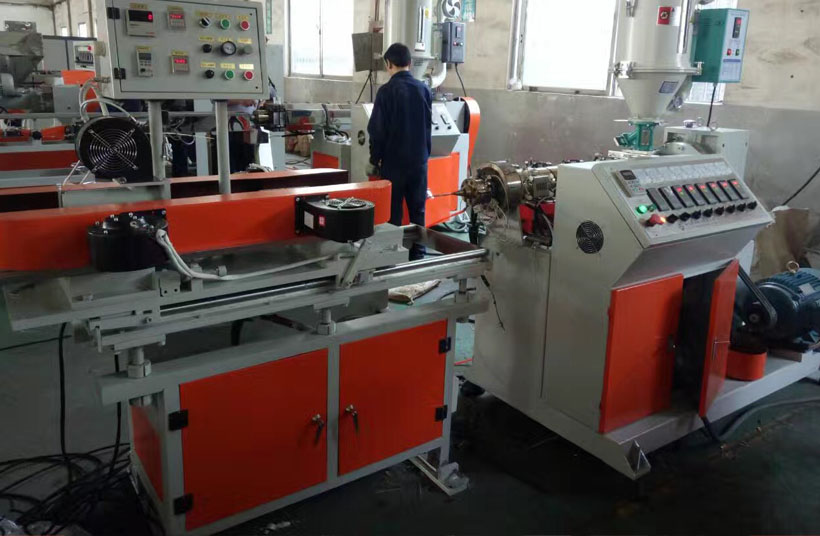

Automatic High pressure hose pipe making machine
1.The whole equipment configuration
mono-screw lining extrusion system ,cooling device ,haul-off ,braiding machine ,mono-screw outer extrusion system ,cooling device, automatic stacking system
2.Achieving fast extruding and winding uniform reactive
3.Can configure corresponding mould can also manufacture various specifications of soft special -shaped steel tubes.
Quick details:
|
Plastic Processed:
Plastic granule/pellet/grain
|
Application:

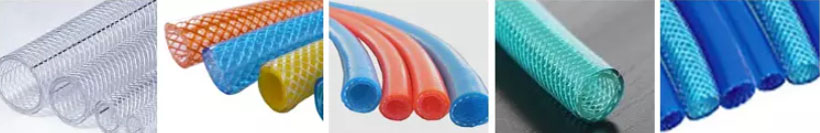

Reinforced pressure tube
|
Screw Design:
Single-screw
|
Dimension(L*W*H):
10 x 1 x 1.6(m)
|
Voltage:
Customized
|
Weight:
1-10t
|
Color:
Customizable
|
Warranty:
1 Year
|
Usage:
Plastic tube
|
Product:
Reinforced pressure tube
|
Product details:

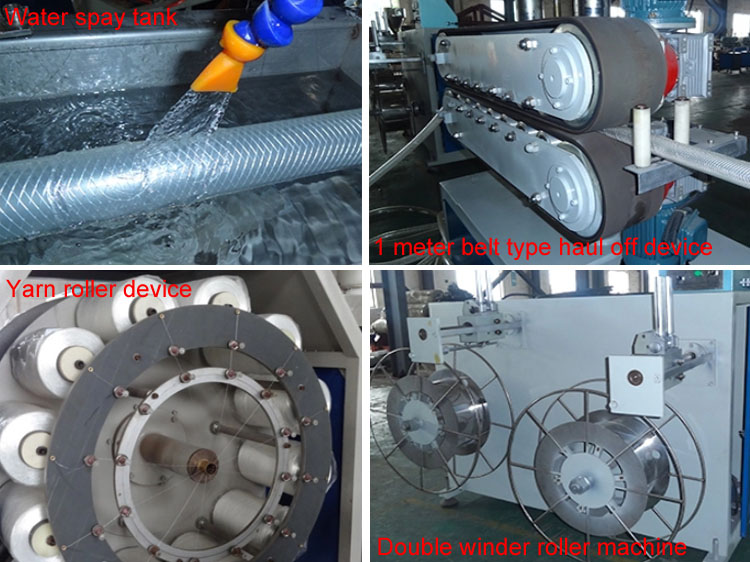

Part 1:Water spay tank
5.5 meter recycle water tank totally enough for cooling the plastic water pipe , and good quality stainless steel material is very durable and it's special design can recycle use the water and water is normal tap water.
Part 2: 1 meter belt type haul off device
A.using two special AC motor speed and high performance drives and encoder feedback torque and speed double set,can maintain a constant tension when zero velocity
B.a floating on the track ,dual pressure adjust alone ,can keep accurate damping force freduce the deformation of products
C.improve the safety protection measure
Part 3: Yarn roller device
PVC package yam tube extruder.adopts frequency control of motor speed, intelligent high precison thermometer,belt type tractor, the machine running balance , low fault rate and easy operation ,by winding machine adopts American technology, the demotic winding machine performance is better ,dont fly when winding yam yarn.high-speed line when the machine smoothly no vibration.uniform winding effect closely production speed can be easily reached 10m/min.
Part 4:Double winder roller machine
This machine is suitable for winding the plastic pipe which is pulled out of the front road, which adopts automatic winding, adjusting the winding speed, winding tension mode: with two sets of alternate winding to ensure continuity. The pneumatic opens or closes, and equipped with cable rod, automatic cable to cable uniform, regular coiling, compact structure, high degree of automation.
Supply Ability: 40 Set/Sets per Month
Application:
1.Suitable for pressure ,corrosive ,sound insulation ,adiabatic requirements for the gas ,liquid conveyor
2.Widely used in machinery , mining petroleum ,chemical , agricultural irrigation ,building and civilian (solar water ,heater ,gas cylinder )etc
Factory And Machine
Forming machine

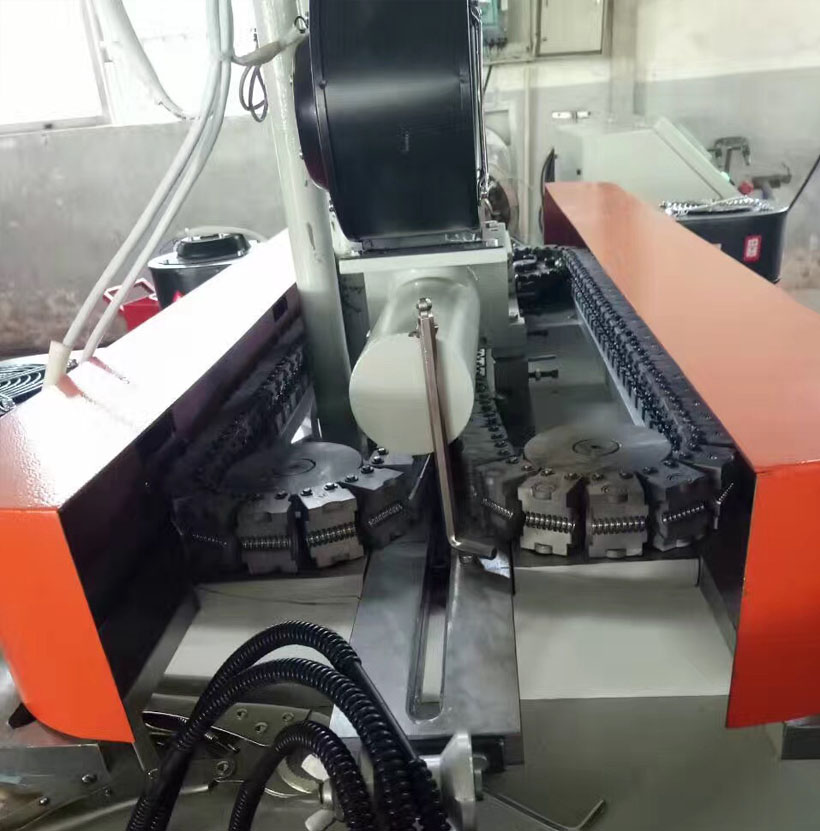

Corrugated pipe forming machine
Plastic corrugated pipe forming machine is domestic initiative,suitable for all kinds of plastic products factory producing all kinds of wire,double wall corrugated pipe,corrugated cable threading pipe,decorative lamps and lanterns,washing machine water,hotel building,etc. applicable material with polyethylene,polyethylene,polypropylene and other thermoplastic vinyl record material.

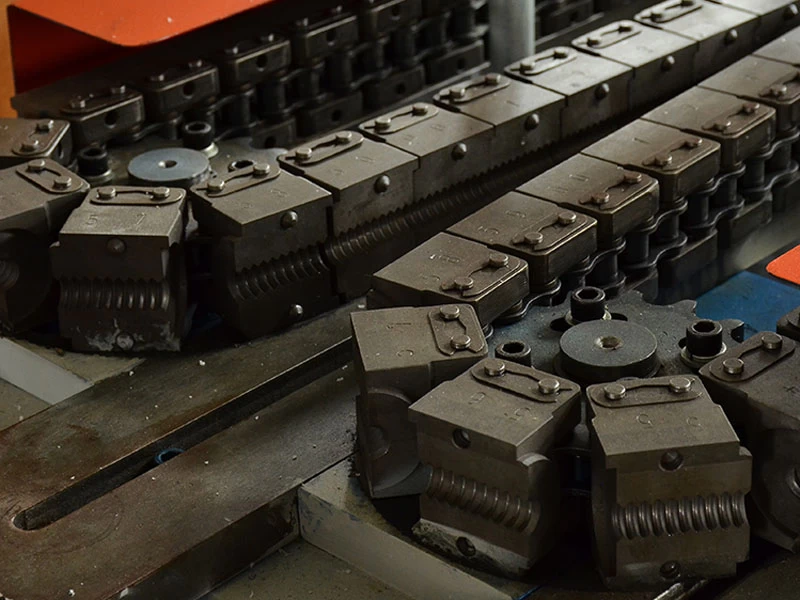

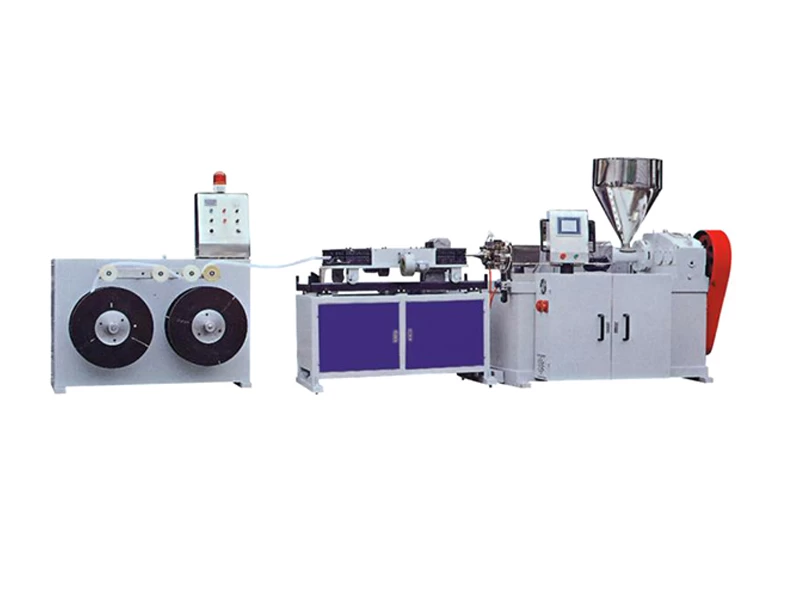

Main extruder corrugated pipe extruder equipment composition
1.plastic extruder
2.special precison extrusion of bellows

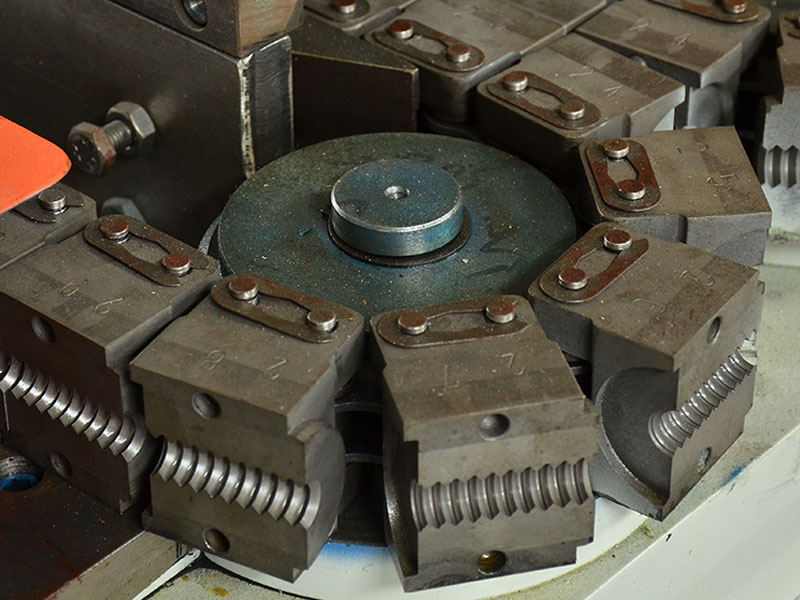

3.bellows forming machine
4.double station winding machine

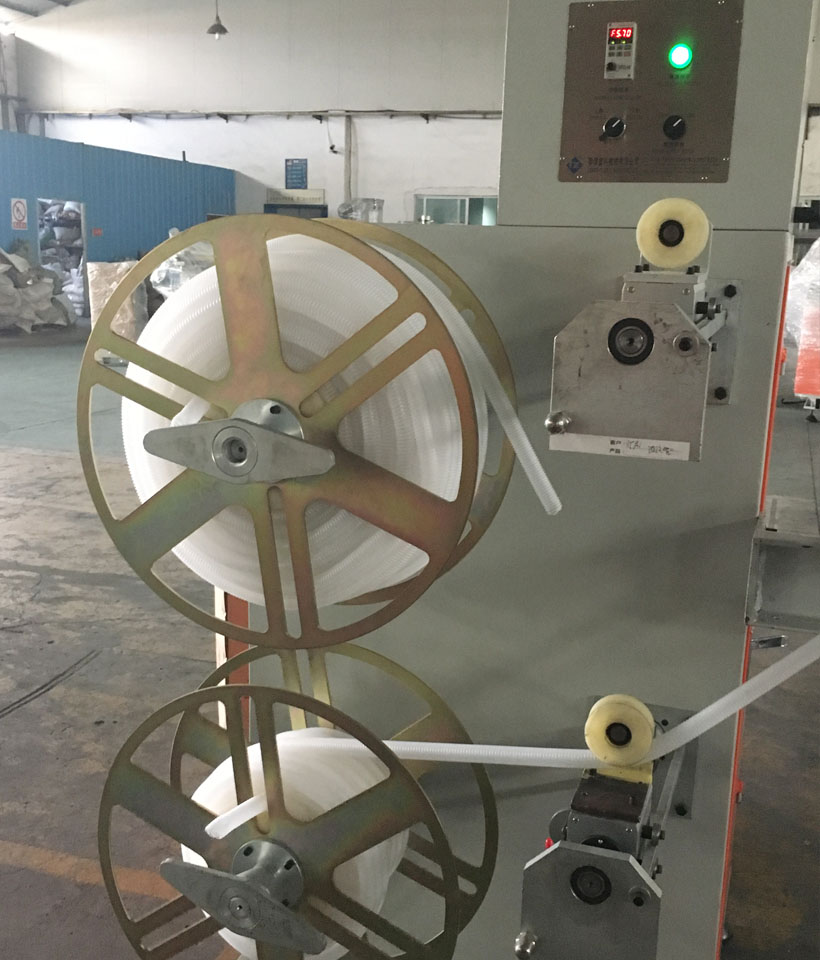

Two winder roller device
This machine is mainly used in PVC,PE,PPR pipe production without cuttings cutting,the cutting product section is smooth and the raw material of the product is saved,the cutting of the products can be synchronized at any time.
|
Model
|
Screw Dia(mm)
|
Screw L/D
|
Main Power(KW)
|
Forming machine power(kw)
|
Winding machine power(kw)
|
Capacity(kgs/hr)
|
|
LXSJ-45
|
45
|
28
|
11
|
2.2
|
1.5
|
20-35
|
|
LXSJ-50
|
50
|
28
|
15
|
3.0
|
2.2
|
35-45
|
|
LXSJ-65
|
65
|
28
|
18.5
|
3.0
|
3.0
|
45-60
|
Why Choose Us
FAQ
Q: Are you a factory or trading company?
A: We are a factory in Guangzhou, welcome to visit and check at any time.
Q: What’s the lead time for a whole production line usually?
A: About 25-60days or depends on different production lines.
Q: Will your company offer install and guide service door to door?
A:Yes, oversea installation service is available.
Q:How to deal with the machine problem after 1 year free warranty?
A:1. 24 hour telephone technical service
2. Offer spare part with cost price
3. Door to door service again .
Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
If you are interested in our Plastic Corrugated pipe extruder machine,Contact now! Tell us the details of your needing.
