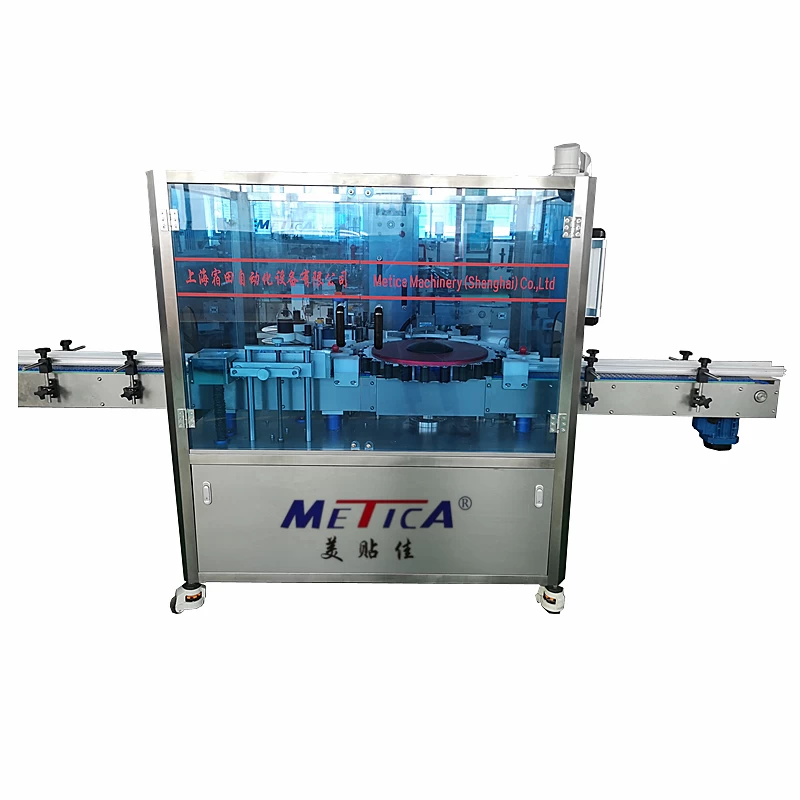

Automatic High Speed Labeling Machine For Round Bottle MT-200H
Labeling Application
- Label Adhesive Paper Sticker to round bottles or Cylinder Products
- Widely used in chemical, cosmetics, pharmaceuticals, food industries, provide solutions for the packaging line
- Products Applicable: round, cylindrical, tapered bottle or products
- Labels Applicable: adhesive paper sticker
Labeling Machines Features

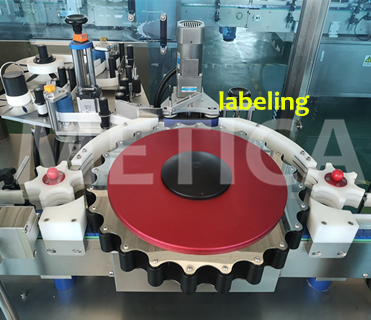

- Labels wipped on the products by a turning soft belt
- Labeling machine produced accordance with GMP Standard and CE certificated
- With Rail and Dispenser for Bottles Feeding
- Automatic Labeling,work independently or connected to a production line, save labors
- Easy to operate on Touch Screen, labeling controlled by PLC, no products, no labeling
- Labeling Steadily, strong S/S frame construction, all the electronics parts are imported from Germany, Japan, France, USA
- High Labeling Speed and Labeling Accuracy
- Customization is available
Options Function for the Labeling Machine
- Coder Printer to print batch number, production date, expiry date and so on on the label when labeling
- Clear Label sensor for round labeling
Labeling Machine Technical Parameters
| Production capacity |
9000-12000 BPH(Related to product size) |
| Labeling precision |
+-1 mm(exclude product and label error) |
| Product size applicable |
20mm≤product diameter ≤280mm; Height≤200mm |
| Label size appilcable |
10mm≤width≤150mm; Length≥10mm |
| Power supply |
220V 50Hz, 1KW |
| Weight |
300KG |
| Machine size |
2000*1200*1500mm³ |
| Feature |
PLC, touch screen control |

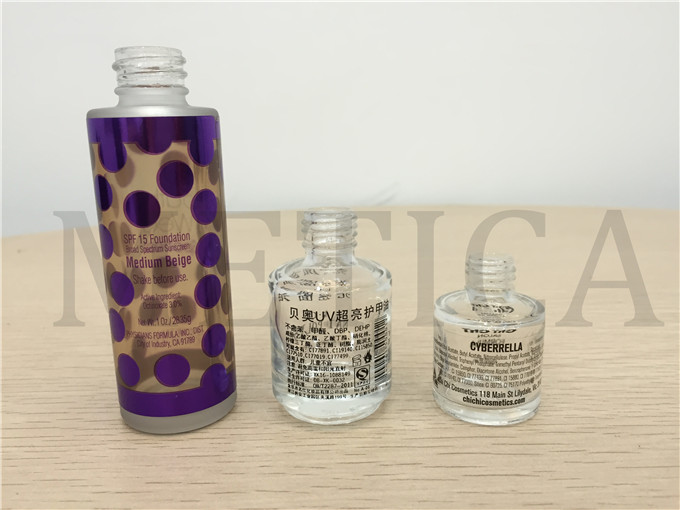

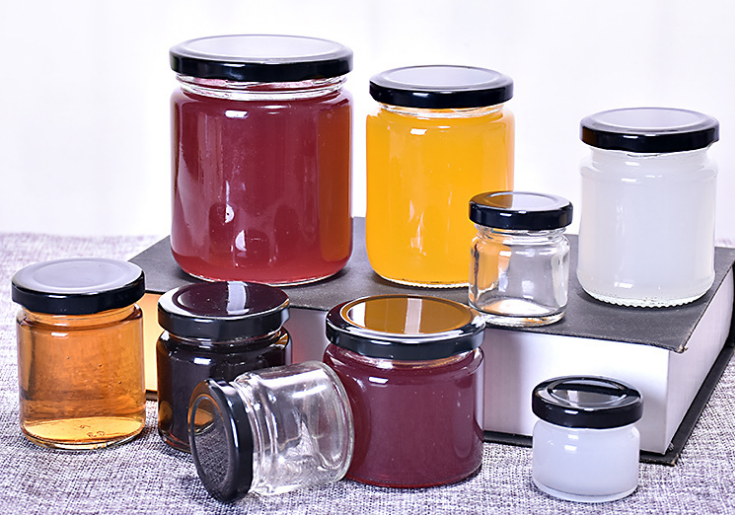

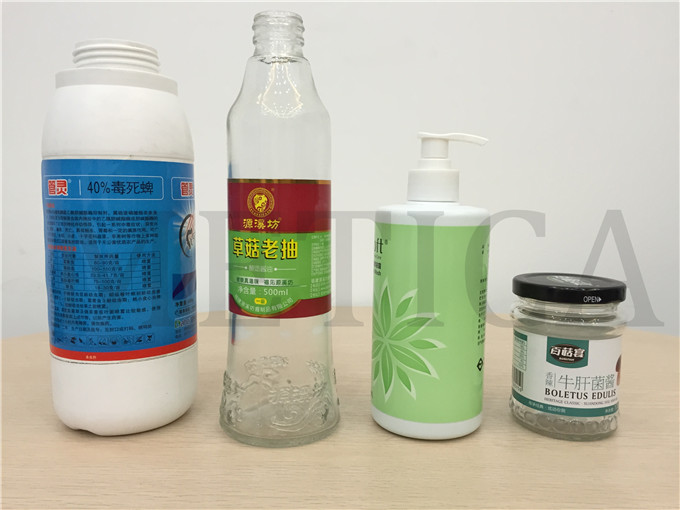

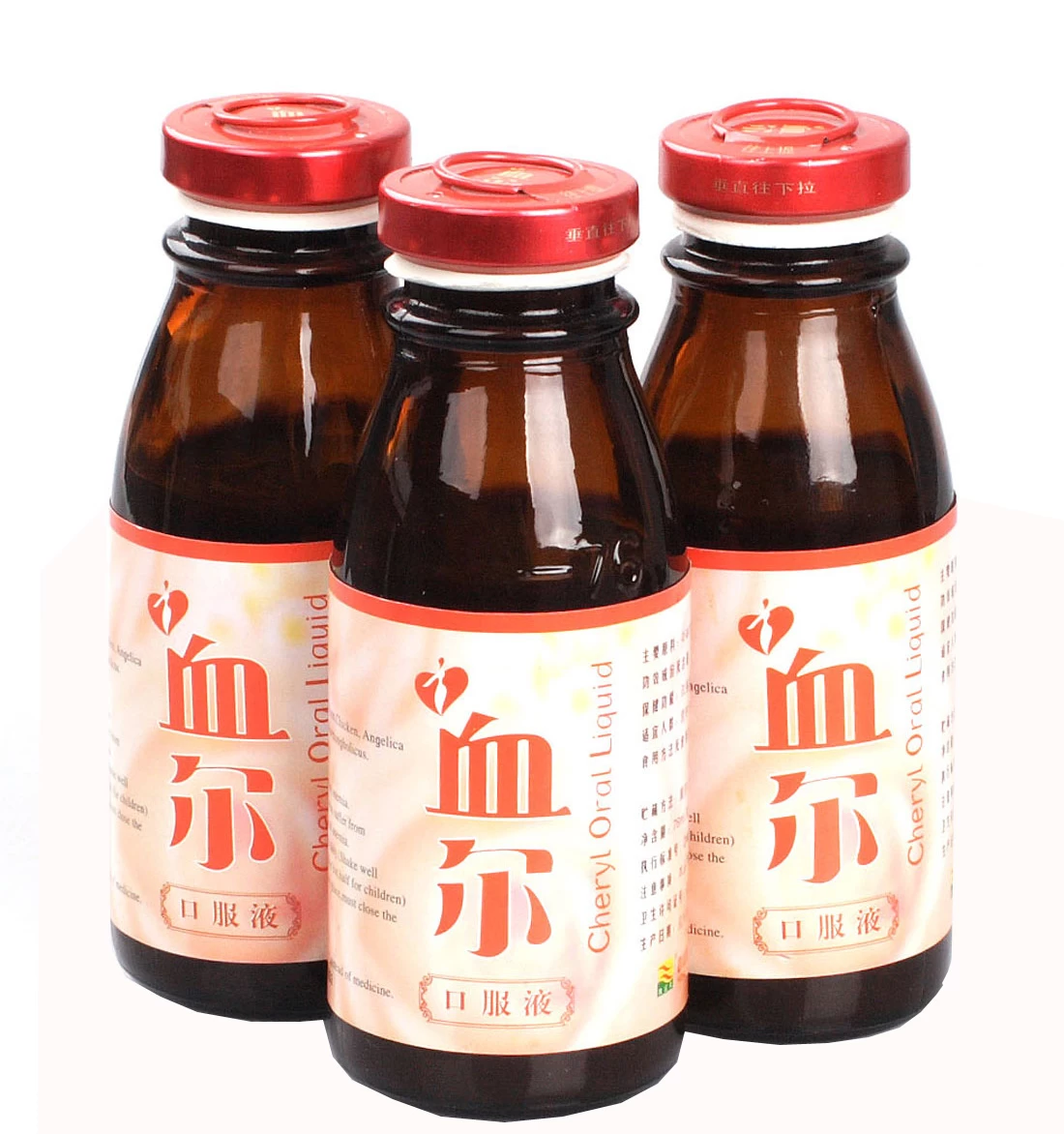

Labeling Project Examples
