Features
◆ with mechanical driving rotary indexer, automatic loading & unloading systems and combined with PLC control system.
◆ Adopted main components from Rexroth, Schneider, SMC, Mitsubishi etc. mechanical parts are made by CNC directly from CAD design.
◆ Adopted touch screen interface. Quick setup & quick toolings change over.
◆ Equipped with No-object No-printing system, auto counter, safety guard, out of order alarm device.
◆ Heat transfer unit with servo motor right-left registration, Automatic loading system,auto hoper for caps and other customizations due to order.
Technical Data
Model:SF-AHR80S
Product size:φ（16-60）x L(50-240)mm
Max. speed:80pcs/min
Air pressure:5-7bar
Power:AC380V 50/60Hz 15Kw
Dimensions:3550x1600x1800mm

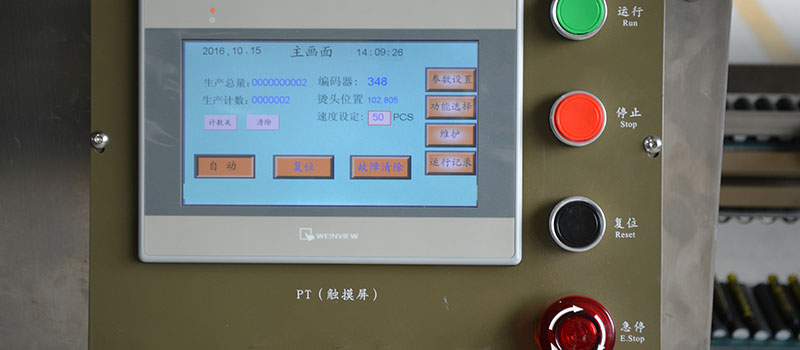

PLC

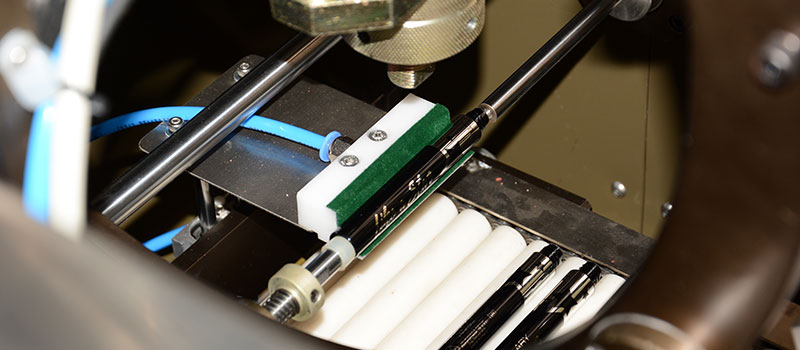

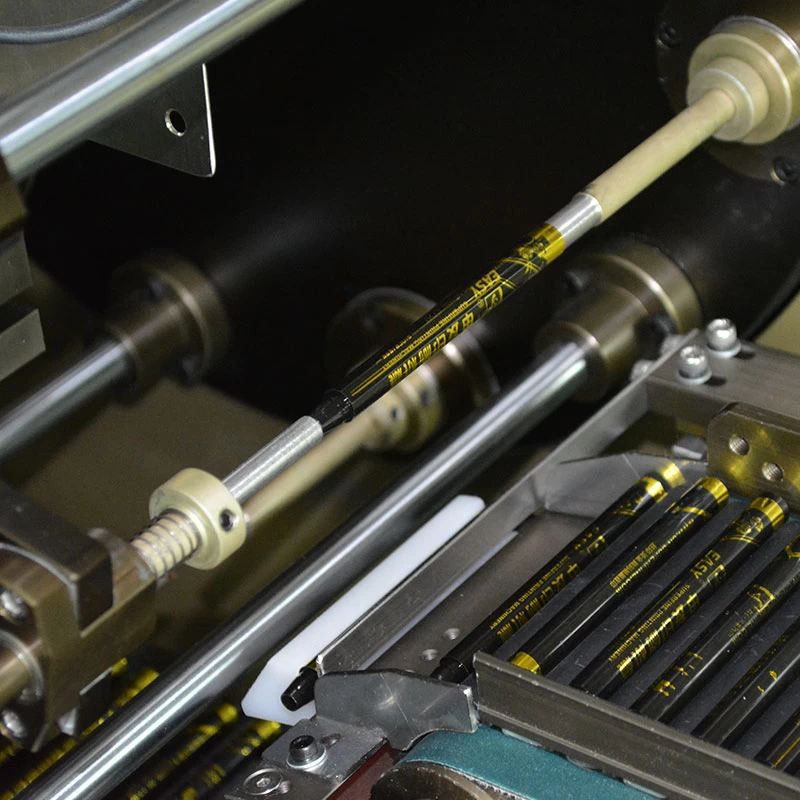

Loading Device
Anti-static System

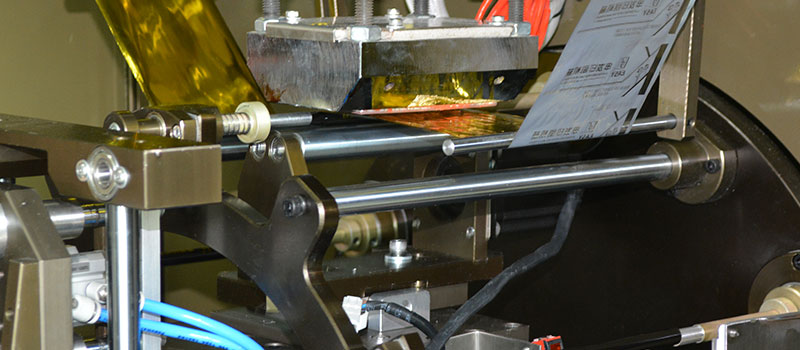

Stamping system

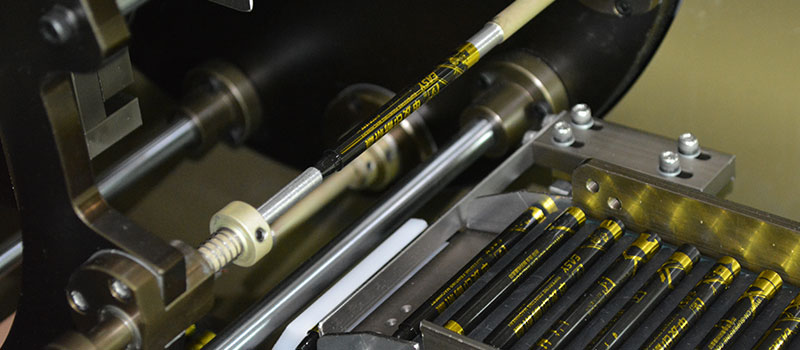

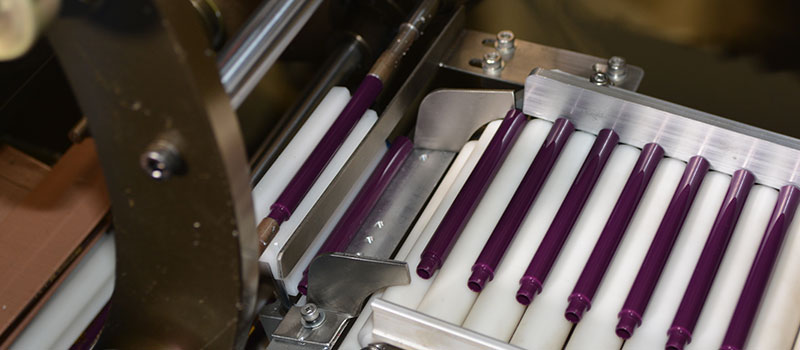

Unloading Device

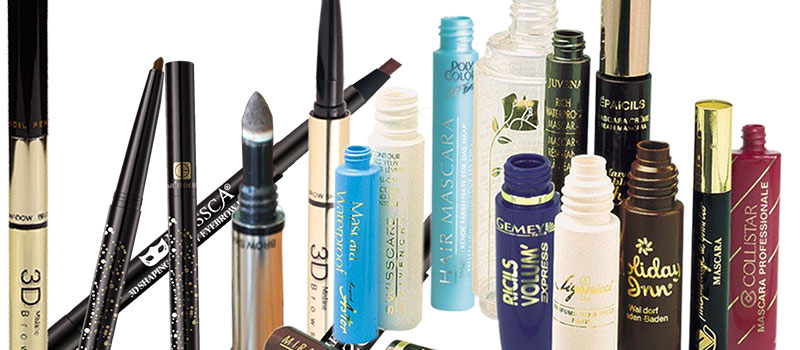

Printing samples
Machine running video
