Automatic Hydraulic Press Tea Cake Tea Brick Pressing Machine used for press molding of cake tea, brick tea, bowl tea, etc. make the tea more compact and the shape of the tea is good.
Tea cake brick pressing machine can used for many kinds tea, such as puer tea, brick tea and other tea.
1.The integrated design, the appearance of the large enclosure, with the moving bottom wheel, the overall appearance is beautiful and practical;
2.The main structural steel plate of the whole machine adopts Q345B high-strength steel plate;
3.Stainless steel plates are used in contact with the materials to ensure hygiene compliance;
4.Fully automatic control system and pressure sensing device make operation easier.
DL-6CY315 tea cake brick pressing machine specification:
|
Model
|
DL-6CY315
|
|
Dimensions (length × width × height)
|
1710×760×1700 mm
|
|
Input Power(voltage / frequency)
|
380/50 V/HZ
|
|
Pressing work stroke
|
≥200 mm
|
|
Pressurization method
|
Hydraulic
|
|
Number of stations
|
3
|
|
Maximum pressure
|
≥120 kN
|
|
Driving Power
|
3 kW
|
|
Motor Speed
|
1400 r/min
|
|
Rated Voltage
|
380 V
|
|
|
|
Packing
|
Put tea in mold
|
|
|
|
Pressing
|
Finished
|
|

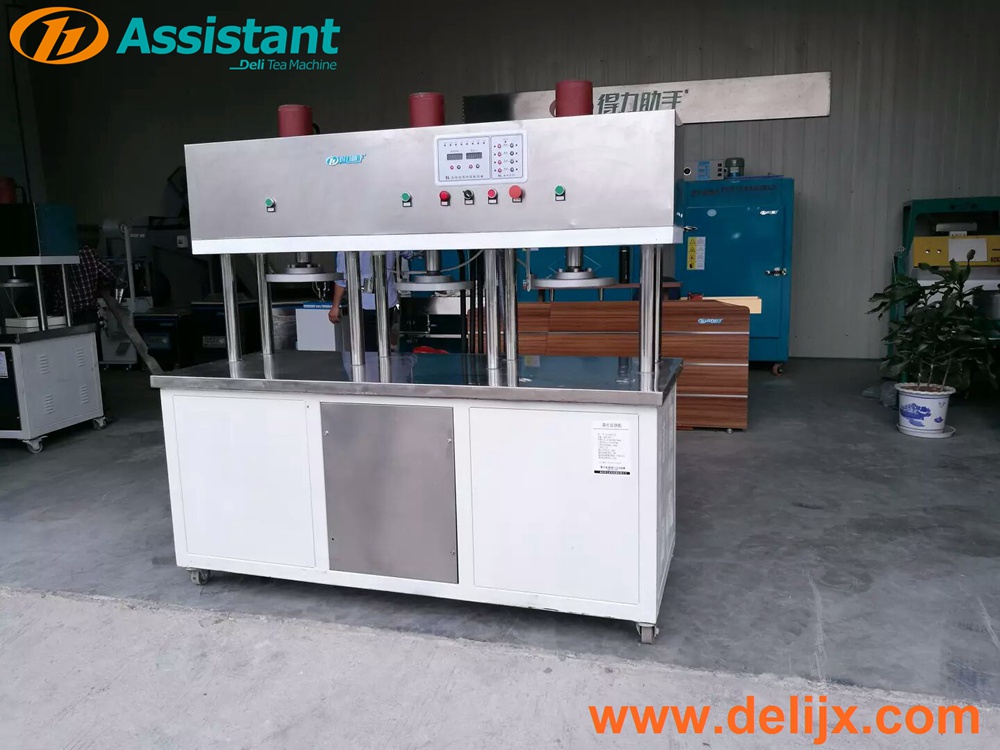

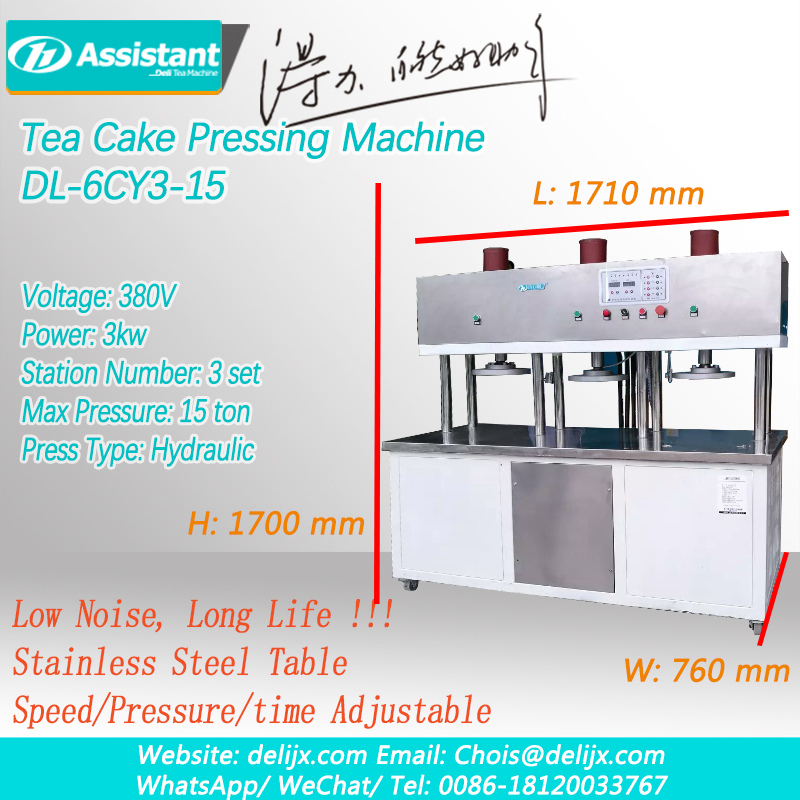

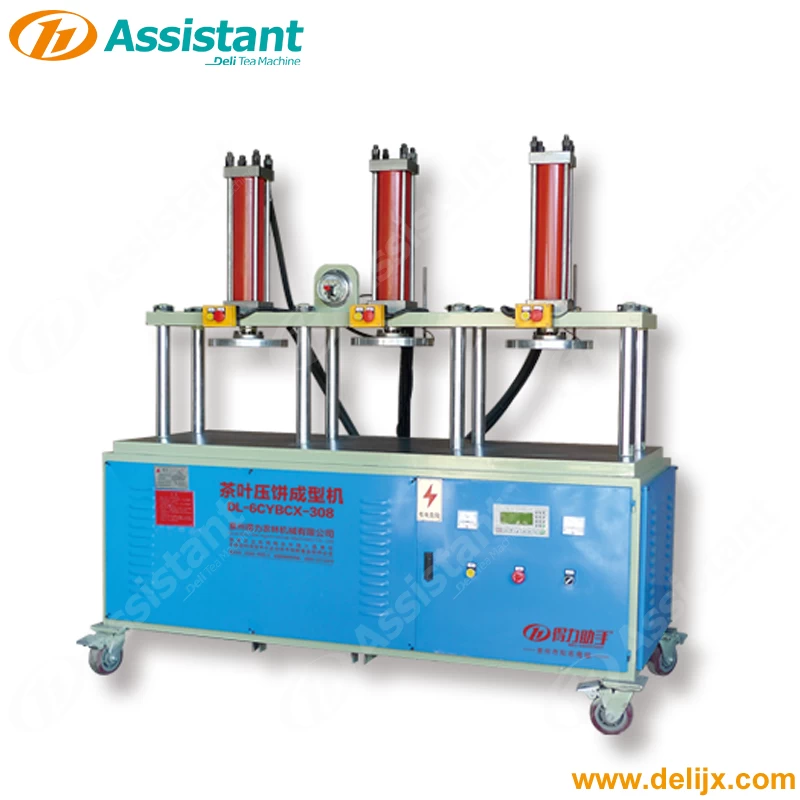

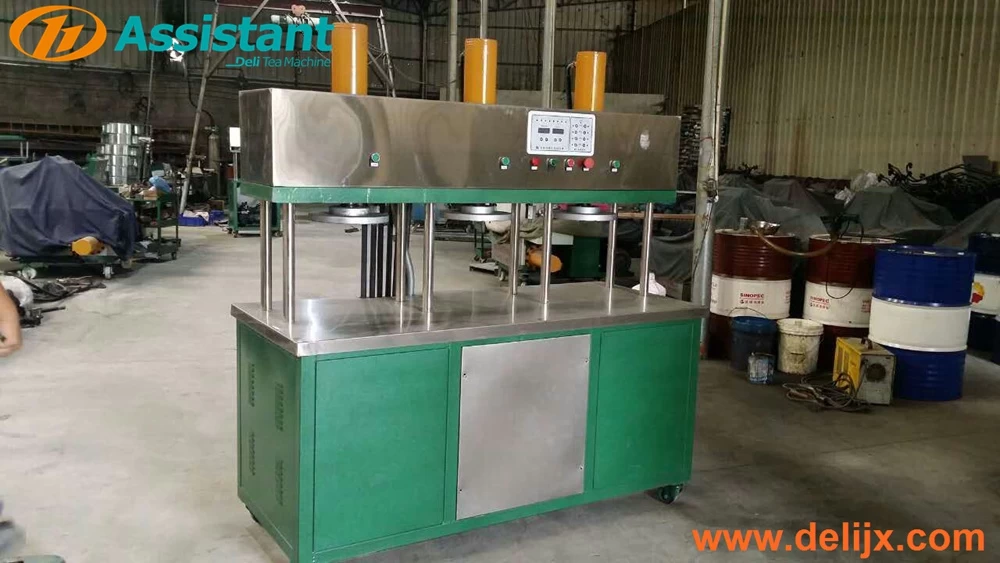

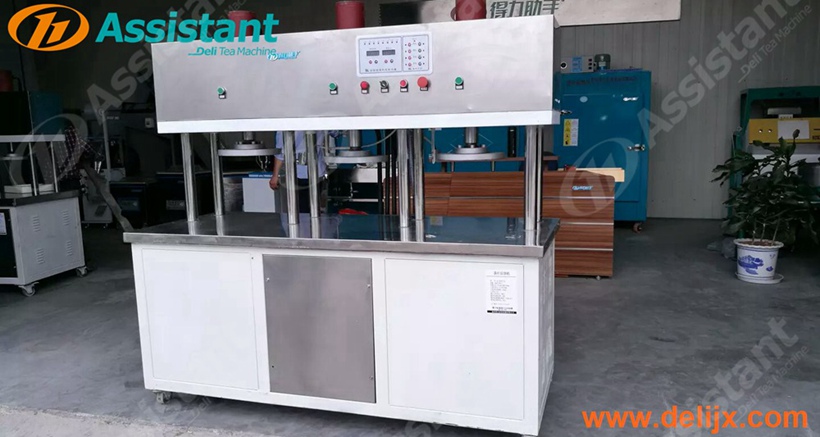

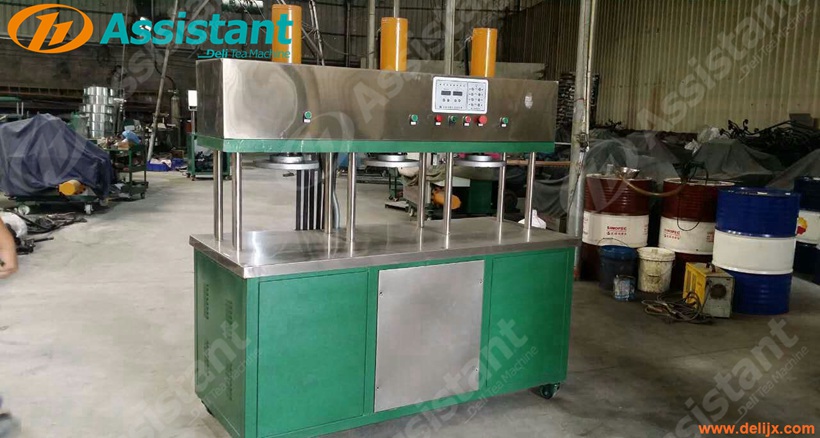

DL-6CY3-15 tea cake tea brick press molding machine photos:
|
