Features
◆with mechanical driving rotary indexer, automatic loading & unloading systems and combined with PLC control system.
◆ Adopted main components from Rexroth, Schneider, SMC, Mitsubishi etc. mechanical parts are made by CNC directly from CAD design.
◆ Adopted touch screen interface. Quick setup & quick toolings change over.
◆ Equipped with No-object No-printing system, auto counter, safety guard, out of order alarm device.
◆ Heat transfer unit with servo motor right-left registration, Automatic loading system,auto hoper for caps and other customizations due to order.
Technical data

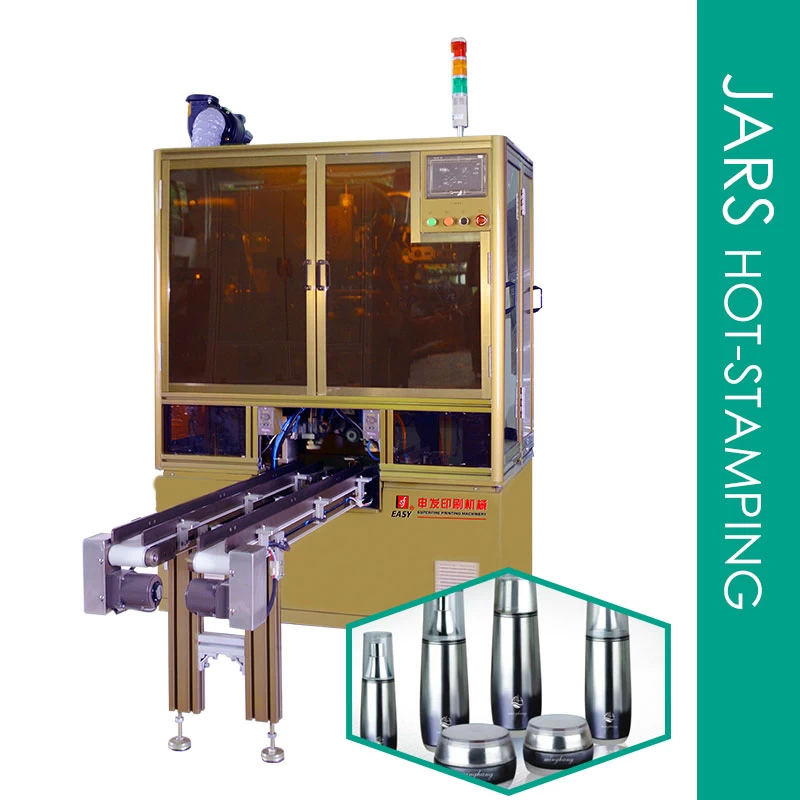

Model:SF-AHR80BG
Product size:φ（25-70）x L(25-70)mm
Max.speed:50pcs/min
Air pressure:5-7bar
Power:AC380V 50/60Hz 6Kw
Dimensions:1400x2500x1800mm

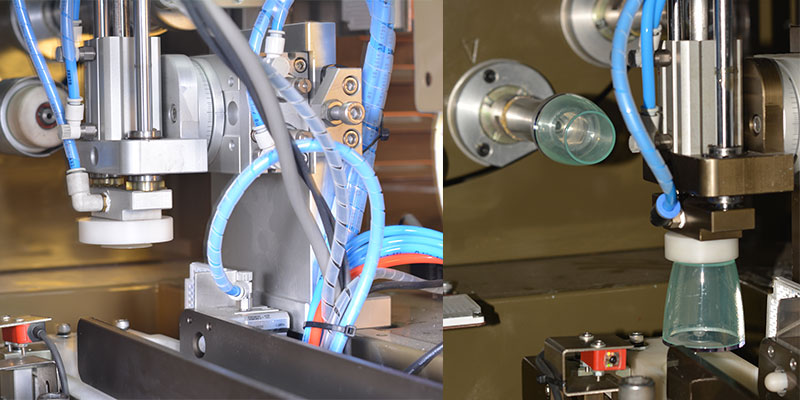

90º Rotating loading and unloading
Anti-static System Flaming System

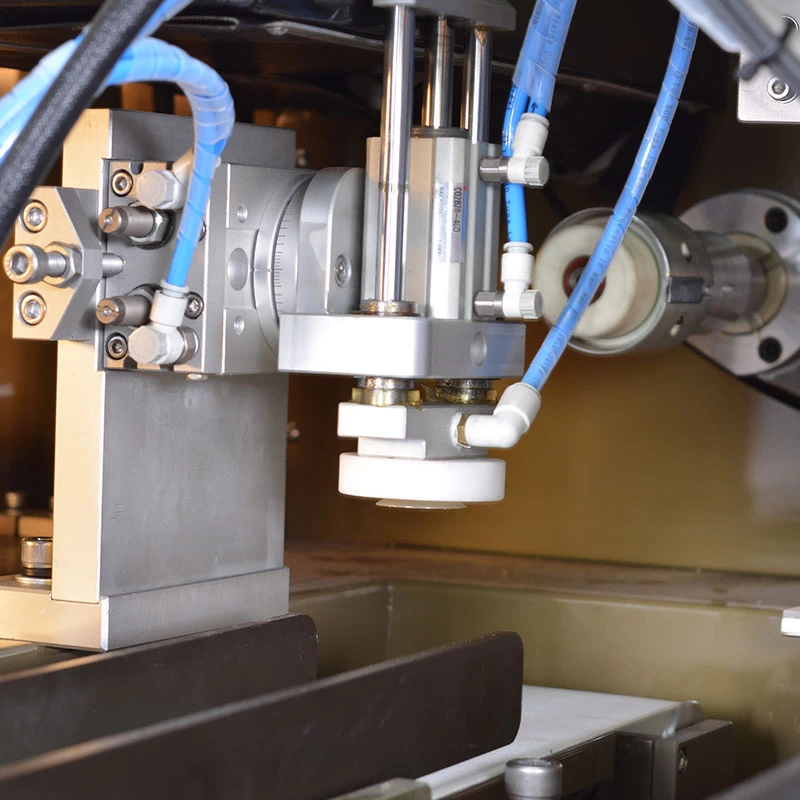

Stamping System
Printing samples
Machine running video
