Products detail:
Widely Used For Medicine, Food, Toy, Cosmetic Industry
label application: self-adhesive label, adhesive sticker, electronic supervision code, barcode;
Features:
1.Powerful functions: this machine can do single sticker labelling for round bottle and tube objects. optional circumference registration detecting mechanism can do labelling on circumference to required position;
2.High contact ratio: equipped with lower support mechanism, combined with 3 axle, registration mechanism, so as to avoid bottle fluctuations, increase labelling precision;
3. Automatic bottle separation automatically, adopts intermittent loading mechanism, pushes the bottles into tooling, so as to assure registration precision and labelling effect;
4.PLC control: human-computer interaction interface has operation and training function, parameter modification easy and clear, all functions shift easily.
Technical date:
Model SF-ALB12
Product size φ(25-60)x(70-220)mm
Label size L(10-150)xW(40-170)mm
Speed 40-55pcs/min
Power AC380V 50/60HZ 2KW
Air pressure 5-7bar

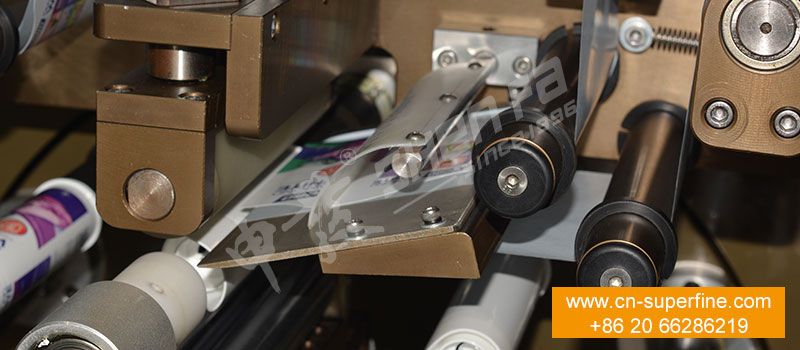

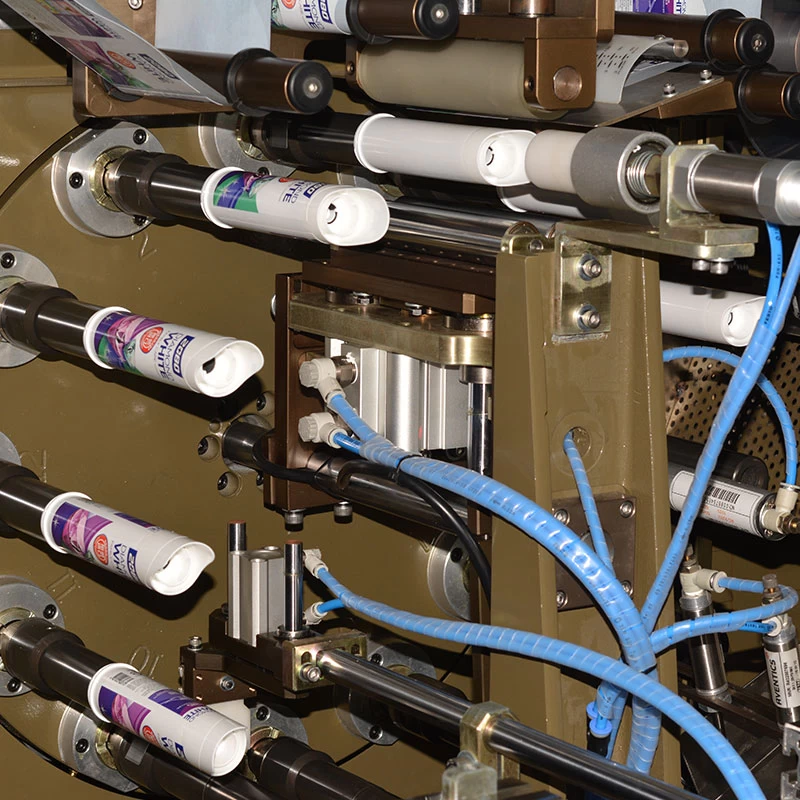

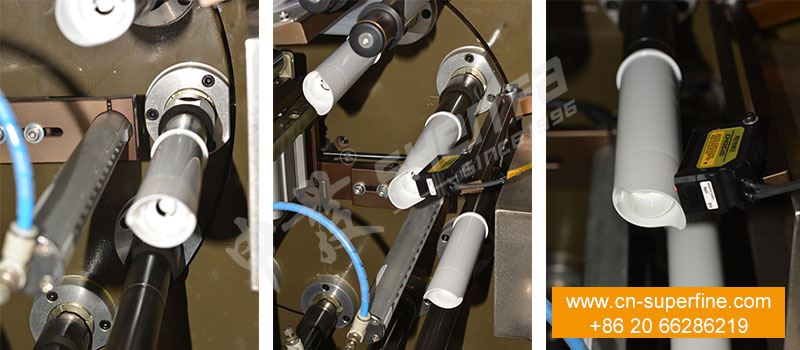

Product Detail:

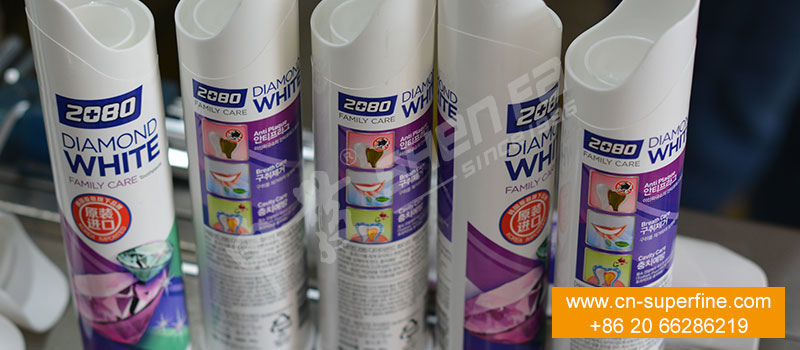

Samples:
Machine running video:
