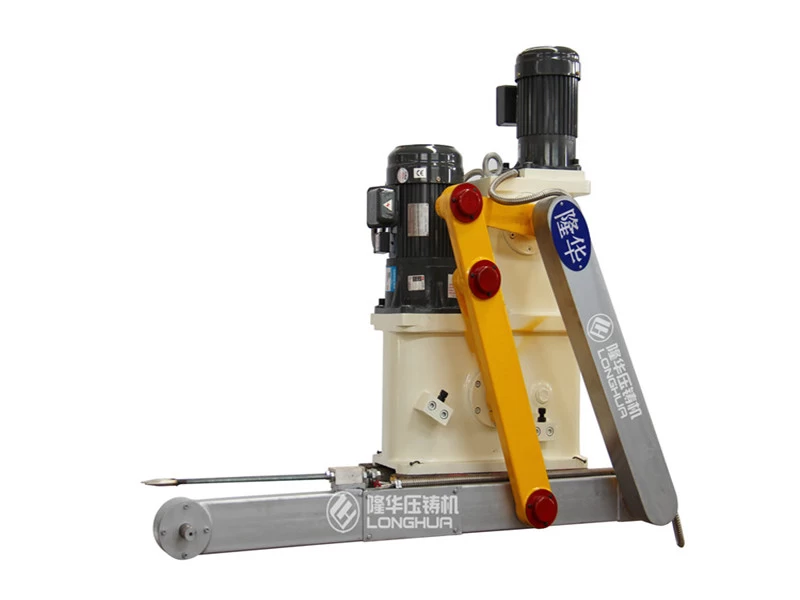

Automatic ladling machine for pouring liquid aluminum
Product Description
Product Features
1.The four connecting rods are driveb by worm gear,and the transducer is adjusted to make the arm run faster and smoothly.
2.The use of imported PLC and frequency converter is used to control the positioning of the soup arm.
3.Human-machine interface touch-screen,can be convenient to set various parameters,real-time monitoring of machine status and fault self-diagnosis display function,make the operation and maintenance is very convenient.
4.The fuselage transmission parts are used in NSK bearing,stable performance and long service life.
5.With probe line alarm function,use safer.
6.The soup is controlled by the encoder and the soup is more precise. The amount of soup can be added and reduced.under manual/automatic condition ,which can reduce the defective rate.
Product parameters
|
MODEL
|
LH-1
|
LH-2
|
LH-3
|
LH-4
|
LH-5
|
LH-6
|
|
FOR DIE CASTING MACHINE
|
125T-200T
|
250T-400T
|
450T-550T
|
630T-1000T
|
1250T-1600T
|
1800T-3500T
|
|
THE MAXIMUM AMOUNT OF LIQUID ALUMINUM
|
1KG
|
4.5KG
|
6.5KG
|
8KG
|
18KG
|
30KG
|
|
LIQUID ALUMINUM SUPPLYING PRECISION
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
|
SEND LIQUID FARTHEST DISTANCE
|
1600MM
|
1740MM
|
1900MM
|
1970MM
|
2300MM
|
2400MM
|
|
ARM MOTOR
|
1.5KW
|
1.5KW
|
1.5KW
|
1.5KW
|
2.2KW
|
2.2KW
|
|
LADLE MOTOR
|
0.4KW
|
0.4KW
|
0.4KW
|
0.4KW
|
0.75KW
|
0.75KW
|
|
POWER SUPPLY CAPACITY
|
380V/1KV
|
380V/1.2KV
|
380V/1.2KV
|
380V/1.2KV
|
380V/2KV
|
380V/2KV
|
|
CYCLE TIME
|
10SEC
|
12SEC
|
15SEC
|
16SEC
|
20SEC
|
22SEC
|
