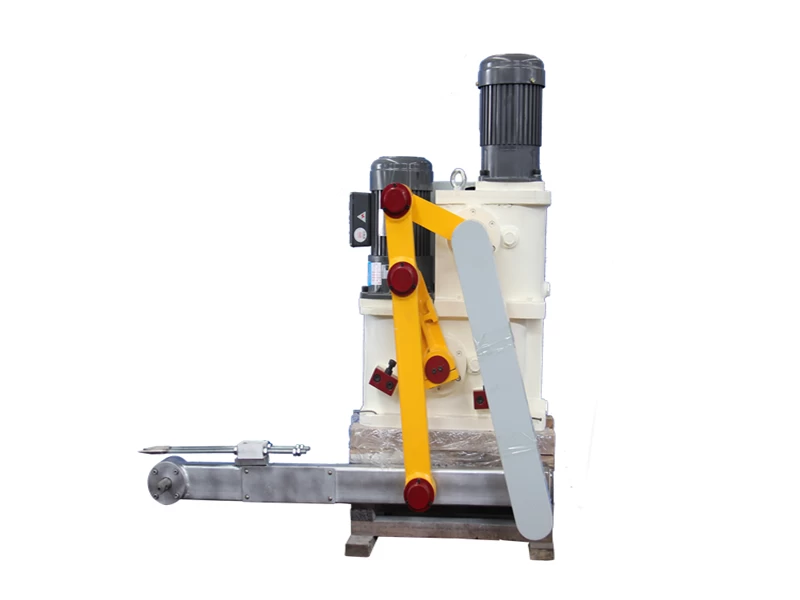

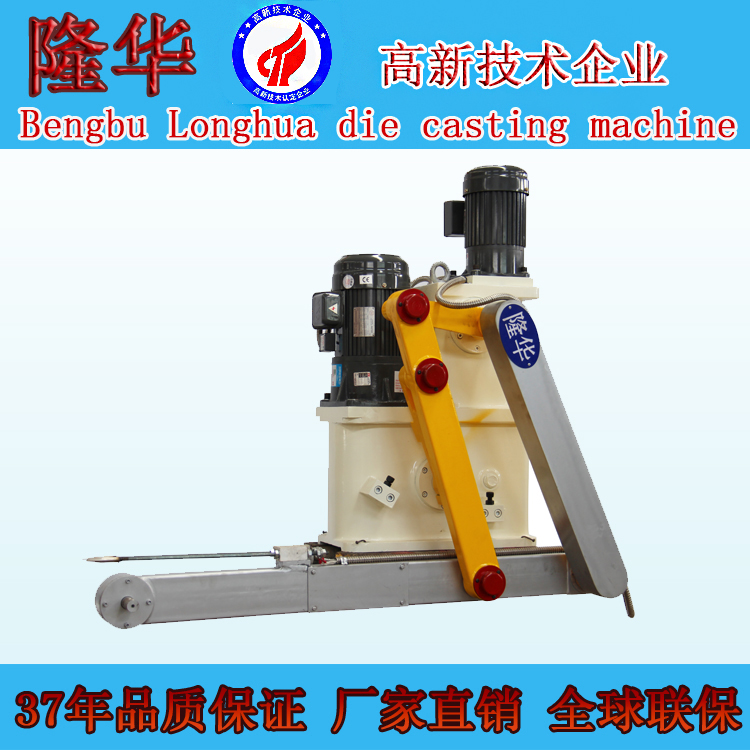

Automatic Ladling Machine

Automatic Ladling Machine

Give soup manipulator use:

Feeding the molten metal soup into the feed inlet of the die casting machine.

Give soup manipulator features:

1. Smooth motion, stable and accurate soup, easy to operate.

2. When the arm is driven, the arm speed can be controlled by the knob, which can be switched between high and low speed.

3. Note the position of the soup, the stopping precision is high, the one-arm type is given to the soup, the amount of the soup is fixed, and the defective rate of the finished product is reduced. The forward/backward of the soup machine arm and the soup/take soup are controlled by the independent frequency converter to increase the speed of the soup. Increase production speed, low failure rate and easy operation.

4. Advance/reverse the soup machine arm and soup/take soup, controlled by independent frequency converter, improve the speed of the soup, increase the production speed, low failure rate and easy operation.

1. The main parts are all imported from the fir, with low failure rate and long service life.

2. The soup arm and the spoon drive gearbox adopt the integral casting box body to be processed by the CNC machining center in one time, and the high-precision worm gear drive makes the arm travel more quickly and smoothly.

3, using PLC and inverter control, so that the arm position is more accurate, using Chinese man-machine interface, can easily set various parameters, monitor the machine status, with fault self-diagnosis display function, use and maintenance very convenient.

4. The fuselage transmission part adopts imported bearings and high-temperature self-lubricating bearings, which are easy to maintain and have a long service life.

5, diversified standby mode, complex and variable, cored mold can also be freely coupled, there are manual / automatic two-way operation mode, three standby modes and front standby / rear standby and linkage control.

6. The soup volume is controlled by Japanese/German imported encoders. In the manual/automatic state, the amount of soup can be increased or decreased, the amount of soup is stable, the repeatability is good, and the product defect rate is reduced.
