Automatic Li ION Battery Pack Assembly Line Equipment for
Power/ EV/ Electric Bike Battery Assembly
Introduction

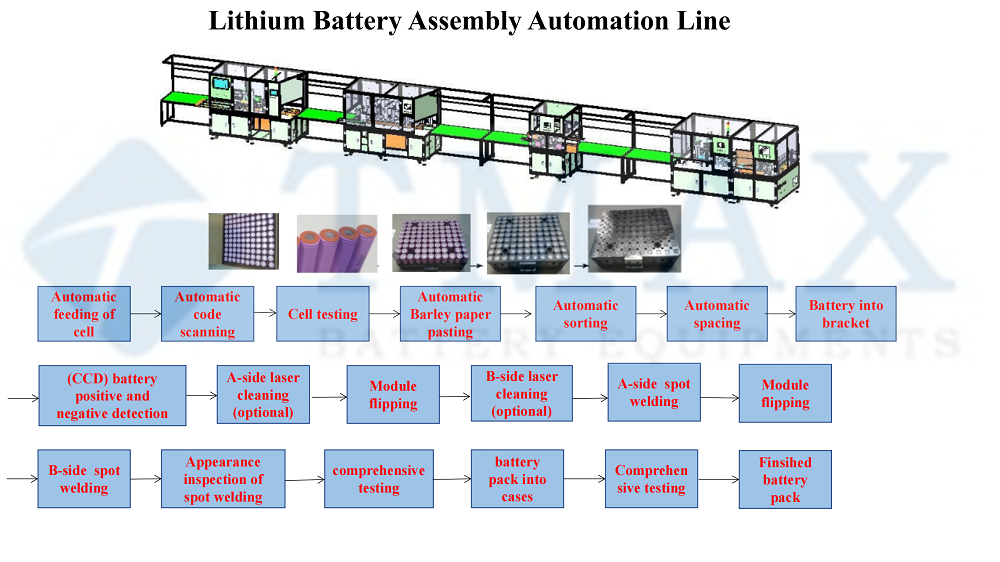

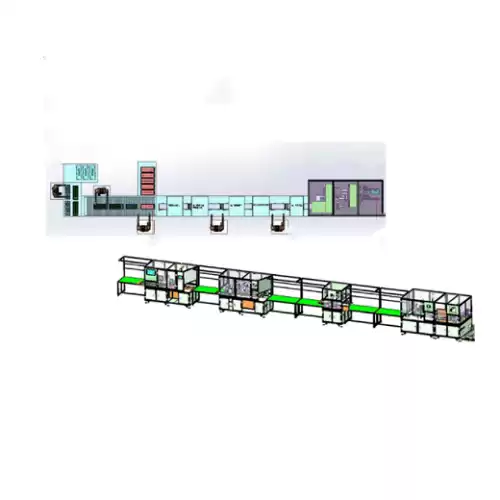

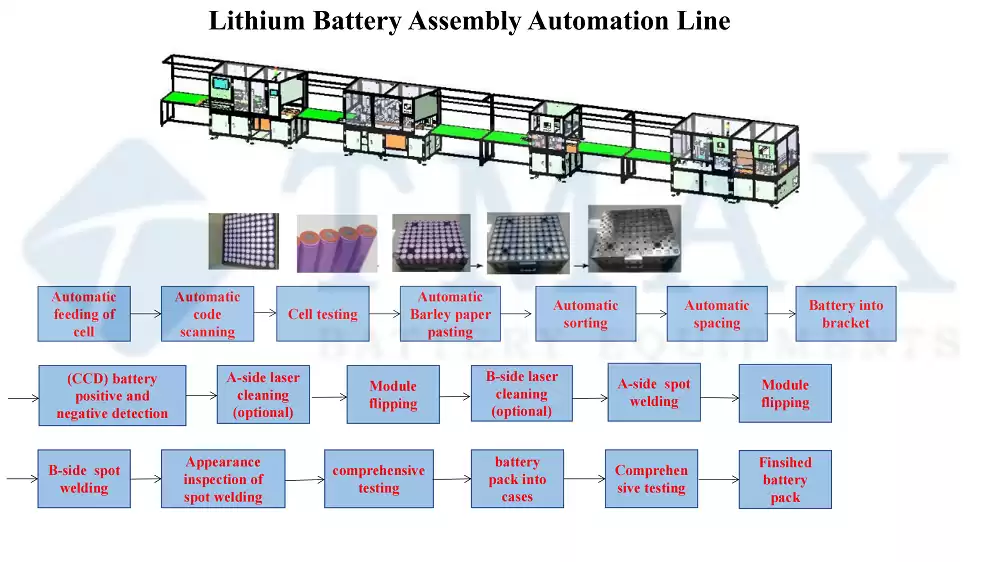

New energy lithium battery pack automatic assembly line system With the extensive application of 18650 and other cylindrical battery new energy fields, automation equipment has become one of the core competitiveness of enterprises. Tmax has independently developed the lithium battery pack line system. The system consists of lithium battery sticker system, sorting test system, battery automatic assembly system, CCD vision detection system, automatic spot welding system, automatic sorting system, etc. While ensuring the consistency of the cell used in the product, it can automatically scan and select the cell bar code, and classify it with the pack bar code, then bind and record it. Combined with the MES system, it can completely trace the data information of the product manufacturing.We provide a full ranges of Battery Pack Line.
Specification
|
Size
|
11500*3000*1800mm
|
|
Weight
|
2300kg
|
|
Power supply
|
220V
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Efficiency
|
80 packs/hour
|
|
Testing parameters
|
internal impedance, voltage
|
|
Paper Pasting speed
|
4000-4200pcs/hour
|
|
Application
|
Various cylindrical cell
|
|
Sorting speed
|
60-70PPM,4500pcs/hour
|
|
Sorting channel
|
Optional
|
|
CCD Testing station
|
1
|
|
Code scanning station
|
1
|
|
Automatic testing station
|
1
|
|
OCD testing station
|
1
|
|
Number of files that can be stored
|
99
|
|
Spot Welding travel
|
customized
|
|
Welding thickness
|
0.12-0.2mm
|
|
Welding power supply
|
Inverter DC 5000A/8000A;
Transistor welding power supply:5000A/6000A/10000A
|
