Automatic Li-ion Lead Acid Battery Charger For Electric Forklift 80V 200A
1.Product Introduction:
1. **Touchscreen Interface:**
- Intuitive touchscreen interface for easy operation.
- Set output voltage and current with a simple touch.
2. **Scheduled Charging:**
- Convenient pre-scheduled charging feature.
- Configure charging parameters based on the specific voltage and current requirements of the forklift.
3. **Data Export and Fault Display:**
- Export charging data for analysis and record-keeping.
- Fault codes are displayed on the screen for quick and easy troubleshooting.
4. **Smart Self-Developed Main Power Module:**
- Our self-developed main power module is certified by TUV Rheinland and UL, ensuring safety and reliability.
- Modular construction and digital power technology.
- All internal components within the module are imported brands compliant with North American standards (USA/Canada).
5. **Power Charging Module:**
- Advanced APFC (Active Power Factor Correction) technology.
- Three-phase Vienna rectifier circuit and DSP digital control technology for precise power factor correction.
- Achieves a power factor (PF) greater than or equal to 0.99 under rated load.
- DSP digital technology is used in the DC/DC section, employing interleaved full-bridge LLC resonant circuit topology.
- ZVS switching for the full-bridge MOSFET and ZCS turn-off for the rectifier diode reduce stress on power devices and optimize system efficiency.
6. **Integrated Magnetic Component Technology:**
- Utilizes integrated magnetic component technology for standardization of output power and current through series and parallel combinations.
- Achieves balanced voltage stress and thermal stress for magnetic components.
2.Technical Parameters：
|
input technical parameters :
|
|
Input voltage
|
Three-phase four-wire system (AC480Vac±10%)
|
|
Input voltage range
|
432Vac ~ 528Vac
|
|
Input maximum current
|
38A
|
|
Breaker specifications
|
C60A
|
|
Maximum power
|
22.5kW
|
|
Frequency
|
60Hz
|
|
Power factor
|
≥0.99
|
|
output parameters :
|
|
Maximum output voltage
|
100VDC
|
|
Minimum output voltage
|
40VDC
|
|
Maximum output current
|
200A
|
|
Minimum output current
|
20A
20.0kW
|
|
Maximum output power
|
|
|
Current limiting range
|
10% ~100% Continuous
|
|
Working efficiency
|
≥93%
|
|
Voltage regulation accuracy
|
≤±0.5%
|
|
Current regulation accuracy
|
≤±1%
|
|
Current sharing coefficient
|
≤±5%
|
|
Condition and Environment :
|
|
Operating temperature range
|
-20℃ ~ 45℃
|
|
Storage Temperature
|
-20℃ ~ 50℃
|
|
Relative humidity
|
5～95% , non-condensing
|
|

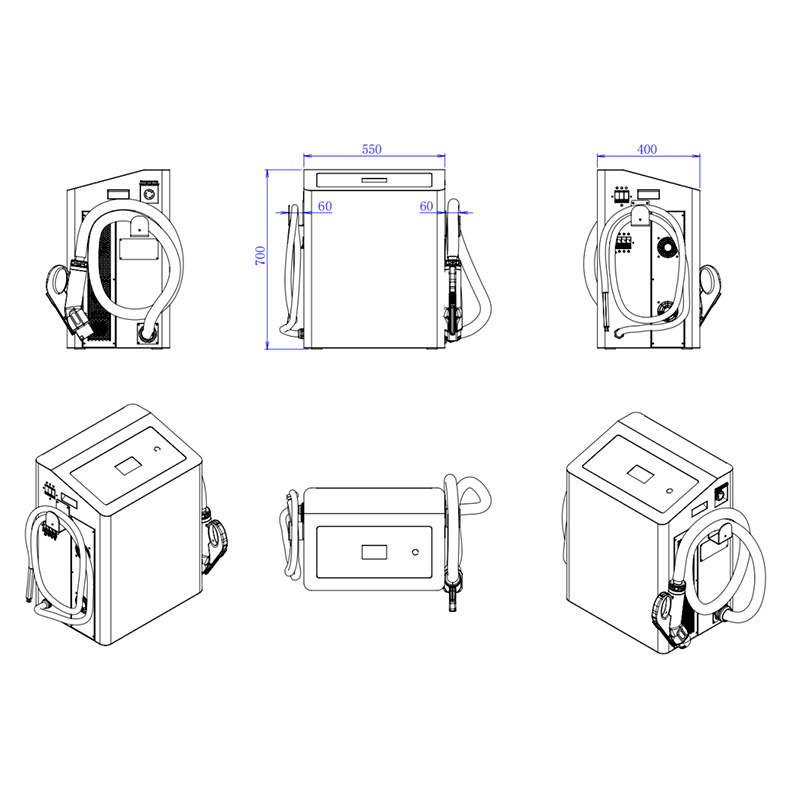

External dimensions
|
Lengths * Widths * Heights : 550 * 400 * 700 mm
|
|
Weight
|
60kg
|
|
Protective function :
|
|
Protection Class
|
IP 20
|
|
Level of protection
|
Class I
|
|
Environment of use
|
Indoor
|
|
Overvoltage category
|
OVC III
|
|
Pollution level
|
PD 2
|
|
Output short circuit protection
|
Enter shutdown protection mode within 1 second
|
|
Overtemperature protection
|
Reduced output: 45°C~65°C, above 65°C shutdown protection
|

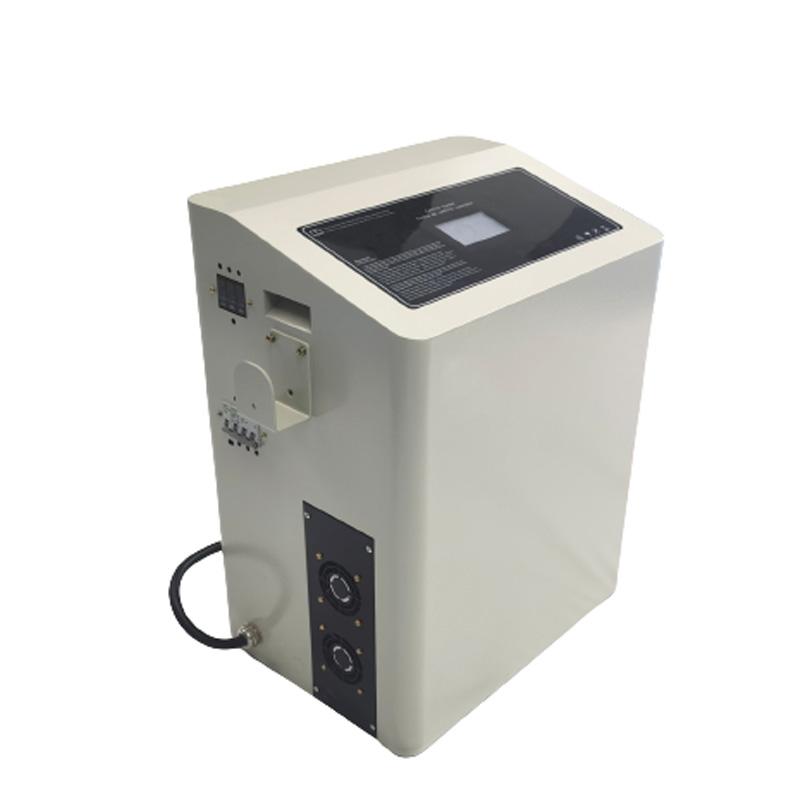

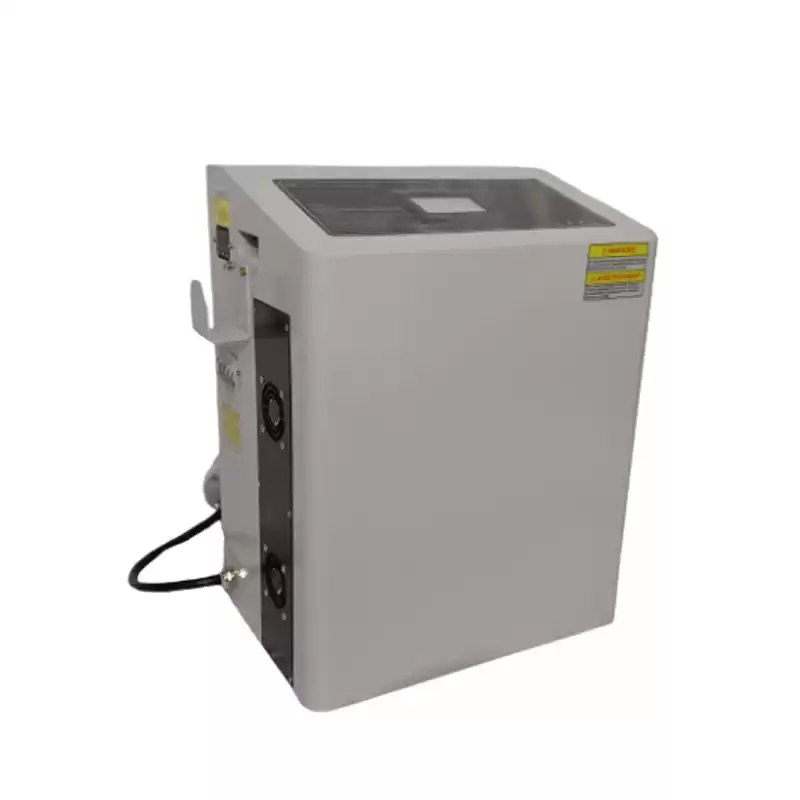

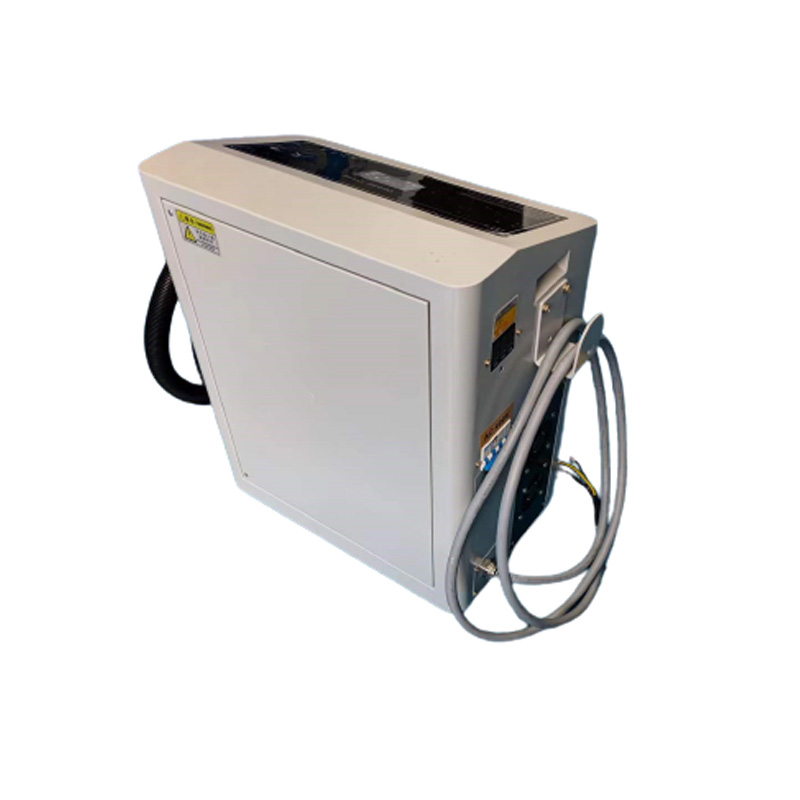

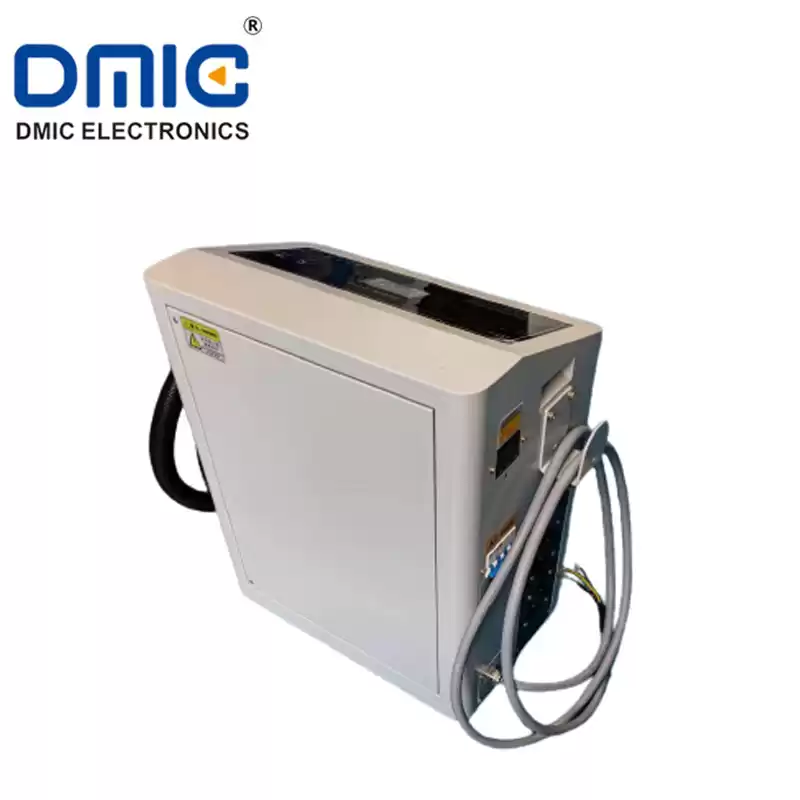

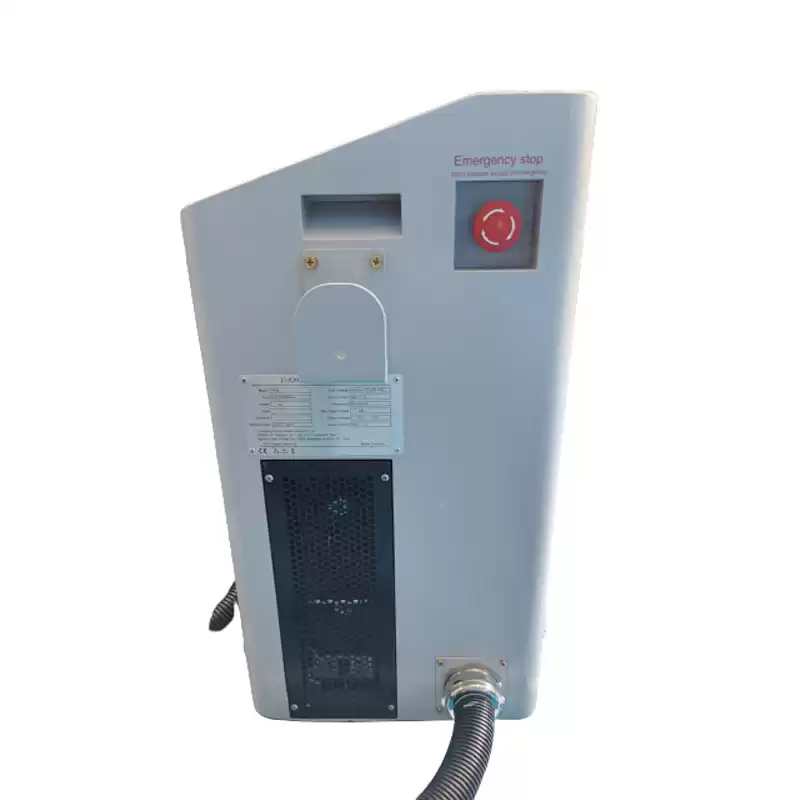

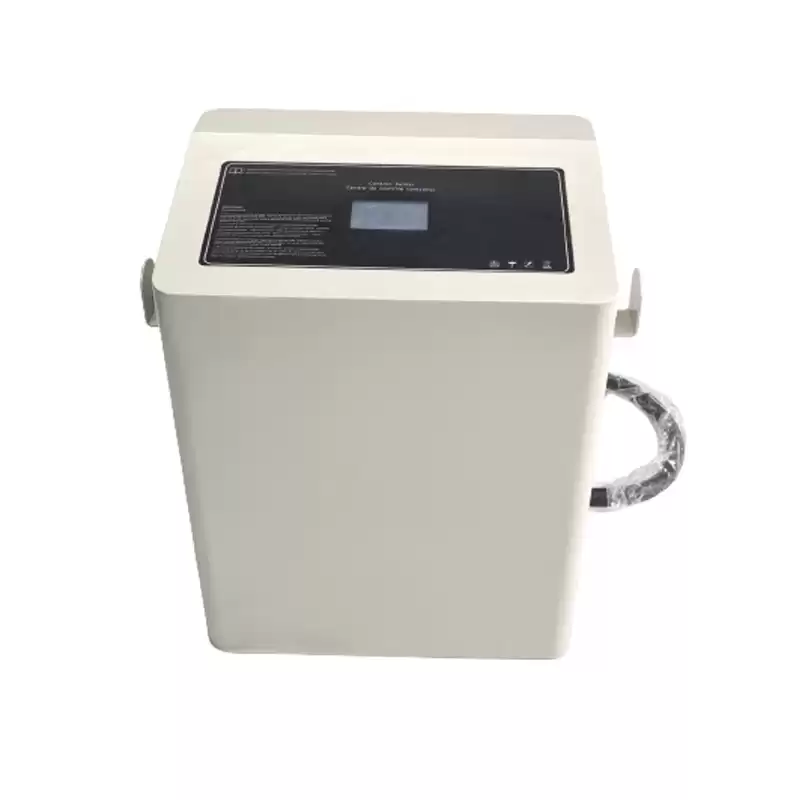

3.Picture Introduction:
4.Our Advantages:

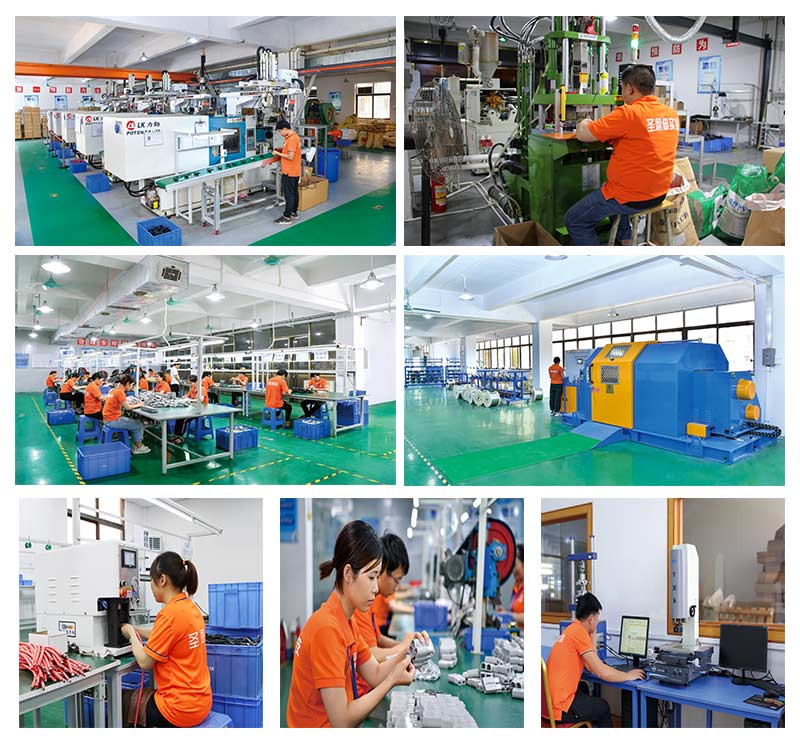

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
