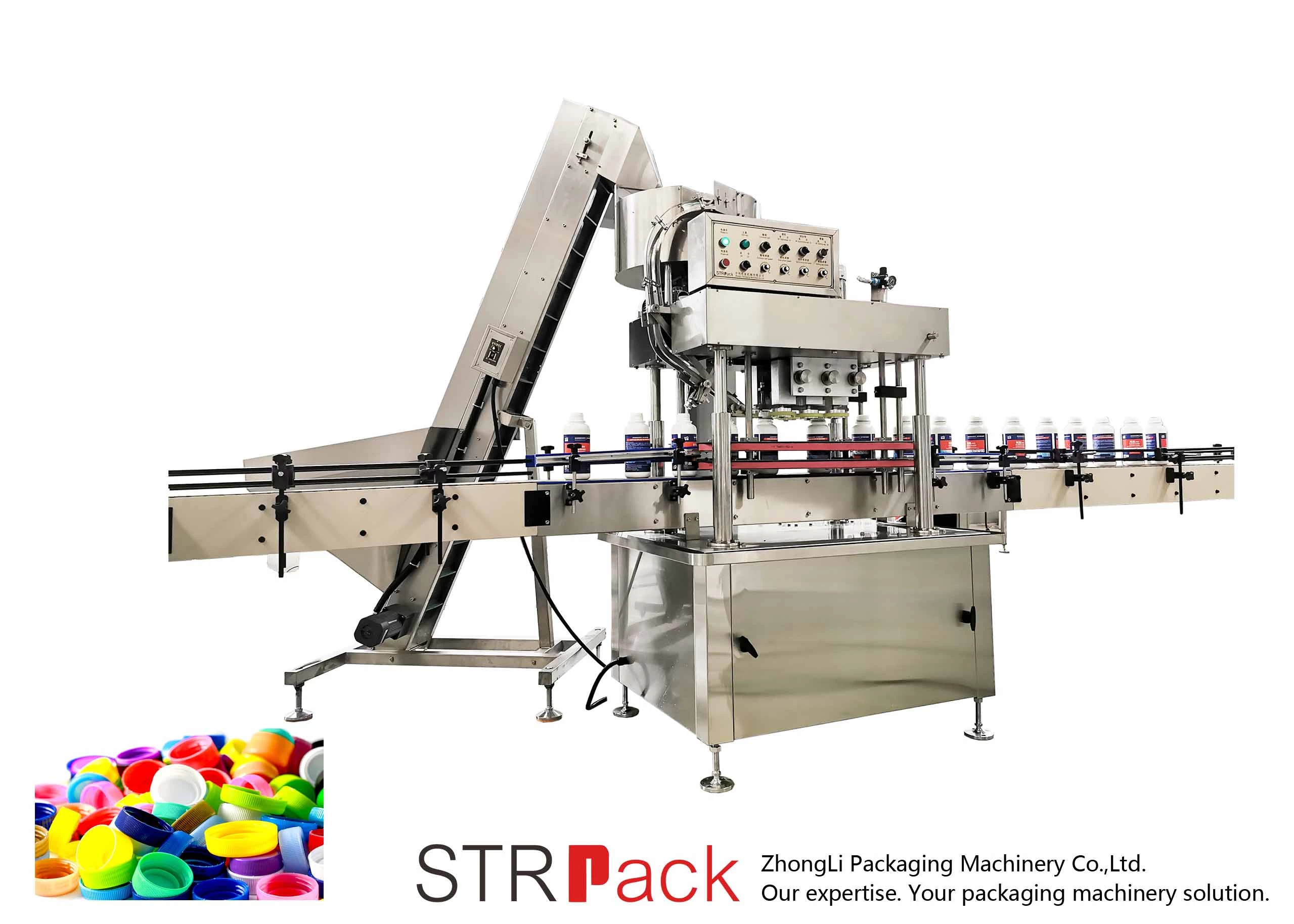

Automatic Linear Capping Machine (Screw Cap)
Brief Introduction:
This automatic capping machine is used
for closing screw caps, it is made up by 3 parts: cap feeding system, cap
loading system and cap closing system.
Linear structure which is flexible to run different size bottles without change
parts.
Cap feeding system will be made according to cap sample( by vibrating bowl or cap
elevator) .
It is also ok for closing pump cap, trigger cap (cap feeding and loading have
to be done by hand).
PLC control system and touch screen is available for your option.
Simple system and easy operation, the machine is widely used on foodstuff,
pharmacy, cosmetic, daily chemical, fertilizer and chemical industries.
Main Parameter:
|
No.
|
Model
|
SX-A
|
|
1
|
Speed
|
0-100pcs/Min
|
|
2
|
Cap Type
|
Screw cap
|
|
3
|
Bottle Diameter
|
35-90mm
|
|
4
|
Bottle Height
|
50-250mm
|
|
5
|
Cap Diameter
|
20-50mm
|
|
6
|
Power
|
2.2KW
|
|
7
|
Air Pressure
|
0.6-0.8Mpa
|
|
8
|
Voltage
|
220V/380V, 50Hz/60Hz
|
|
9
|
Weight
|
600KG
|
|
10
|
Dimension
|
2000mm* 850mm * 2050mm
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
