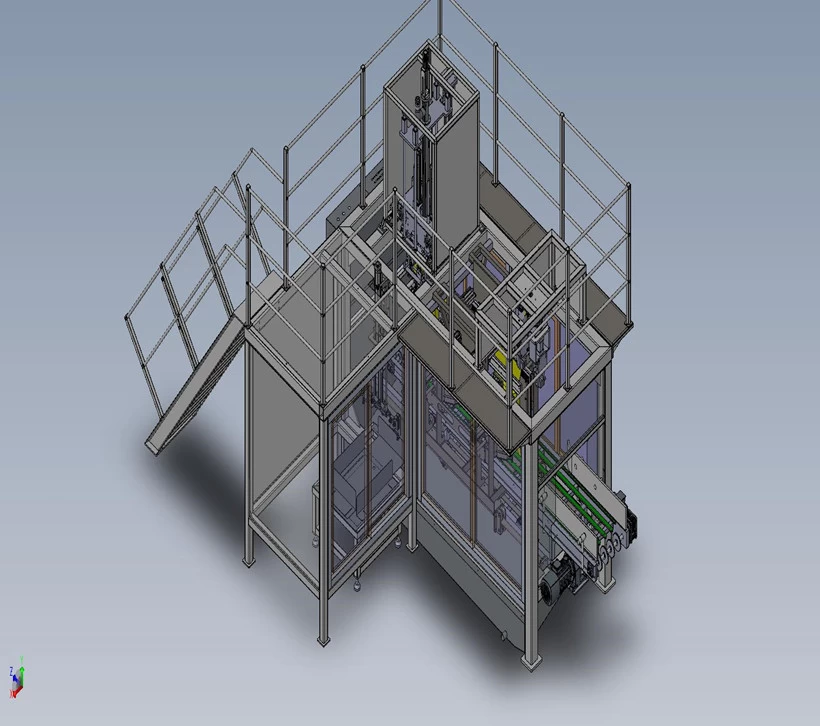

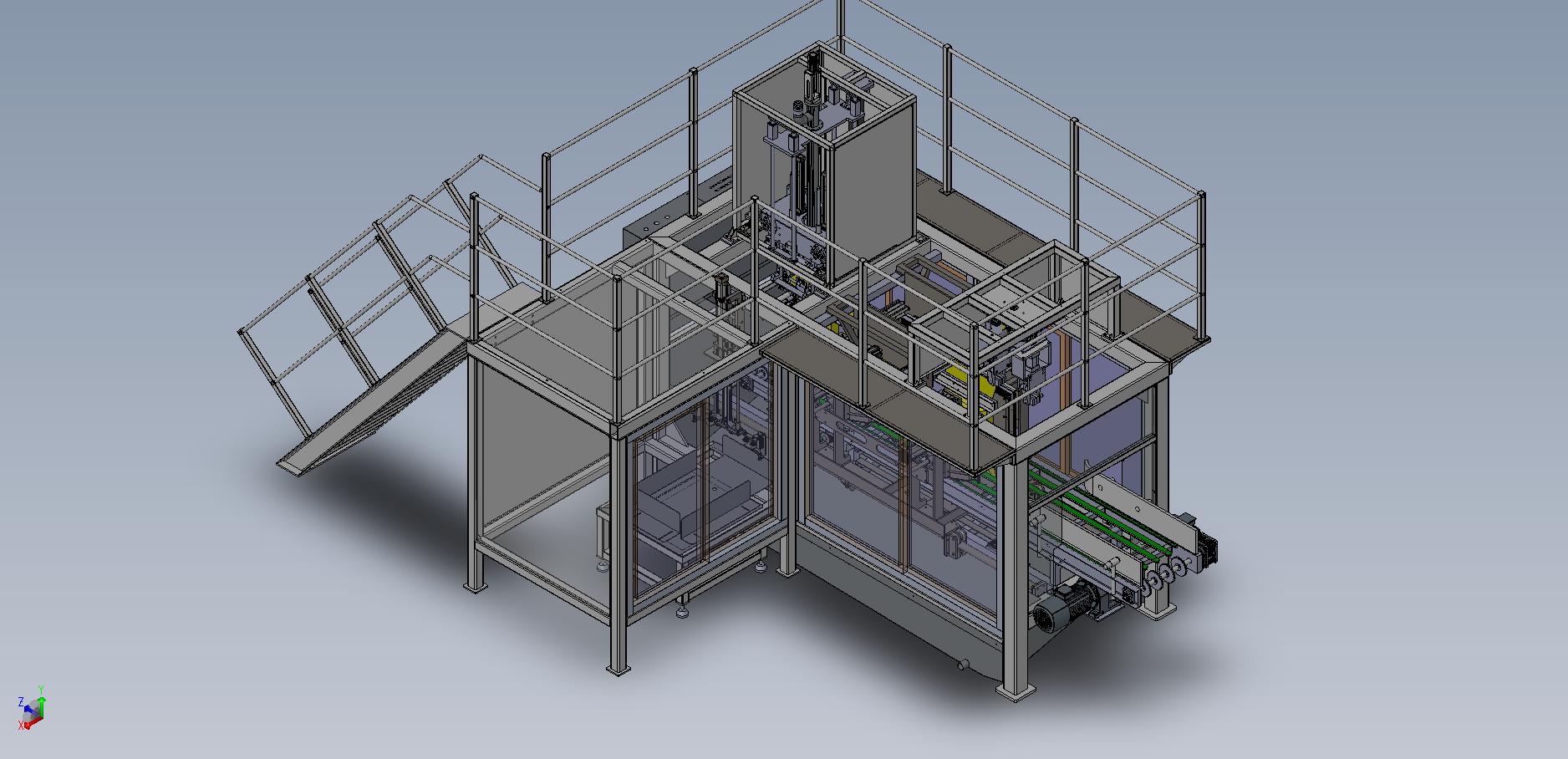

Automatic bag
filling machine is developed by
xinyuan company to solve the high temperature oil bag filling problem.automatic oil bag packing machine can
achieve the automatic filling and sealing by machine ,the seal is tight without
leakage.
operating principle

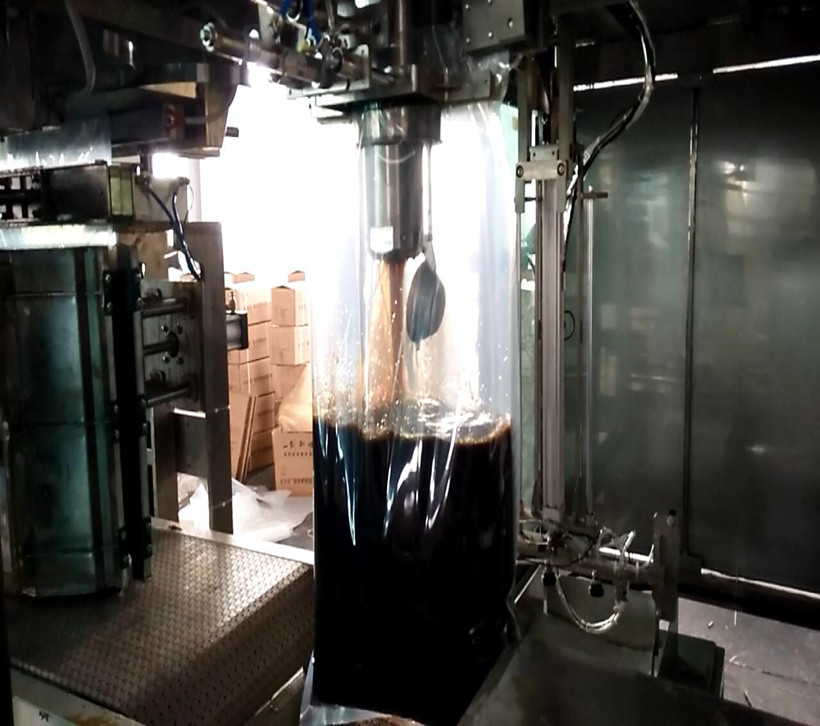

Manually put the bag in the filling station, manually give the
working instruction, filling head down in place after the implementation of
filling.
The filling head rises automatically in the filling process and
returns to the position after the filling is completed.
The bag-holding mechanism moves to the filling station to pick
up the bag, while the filling station returns to the bag-holding state and
waits for bag-holding. Lifting is carried out when the bag is lifted upward.
The bag-holding mechanism moves the filled packaging bag to the sealing station
to perform the sealing. After sealing, wait for the next cycle. If there is no
cycle, the bagging mechanism will be moved and replaced.
The system automatically moves the sealed packaging bag to the
bag-unloading mechanism. The bag-unloading mechanism clamps the bag and
performs the bag-unloading action. Then the packaged products are transported
out to complete the entire packaging process.
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Unit description
1、packing speed:1-2bag/min
2、weighing range:10-25Kg/bag
3、bag material:Composite film bag or aluminum foil
composite film bag
4、Bag type:bag premade
5、accuracy:±250g
6、The seal is tight without leakage
7、The machine all made 304 stainless
steel
Transportation; After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
