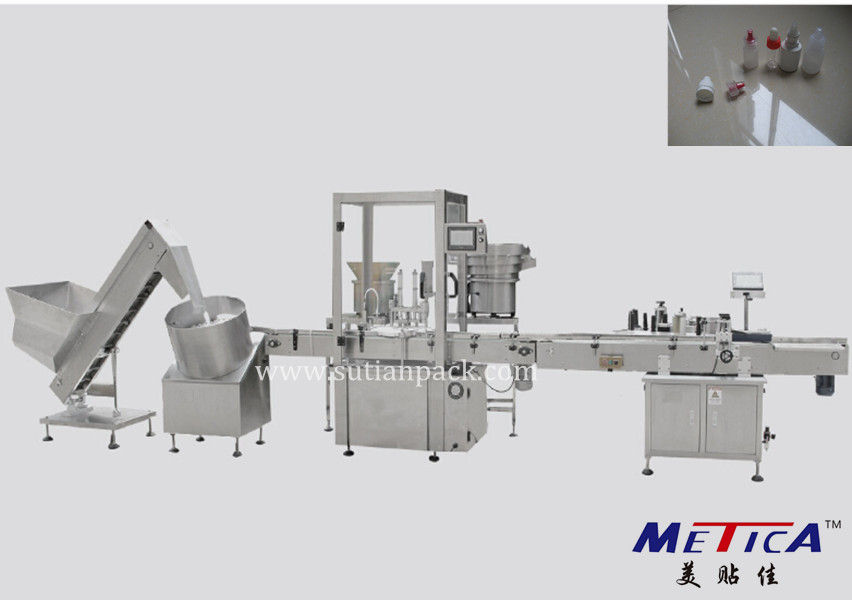

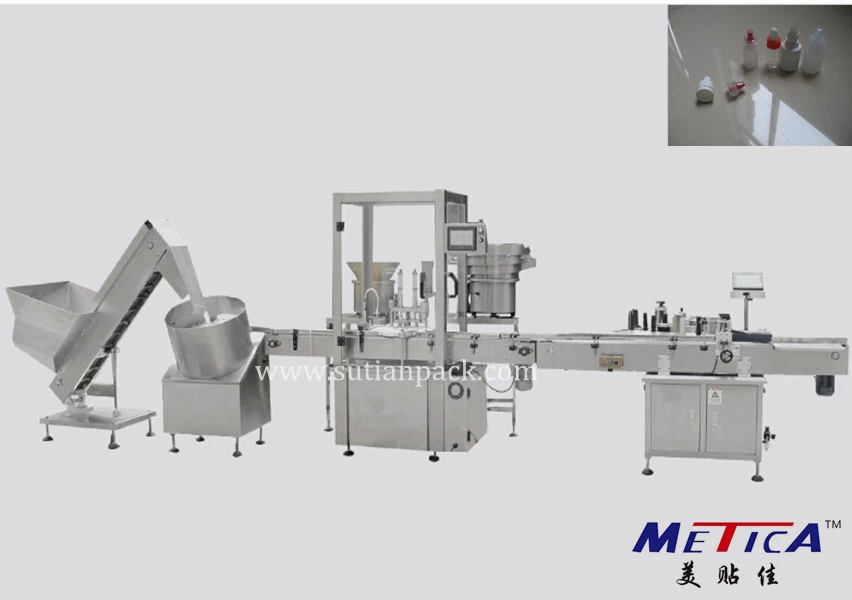

Automatic Liquid Filling Capping Labeling Line for Small Volume Bottle
Application
- The packing line is widely used in E-Cigarette, Pharmaceutical, Health Care industries
- Suitable for small volume 10-30 ml liquid automatic packing, like E-Cigarette Oil, Eye Drop, Oral Liquid and so on
Machines Recommended

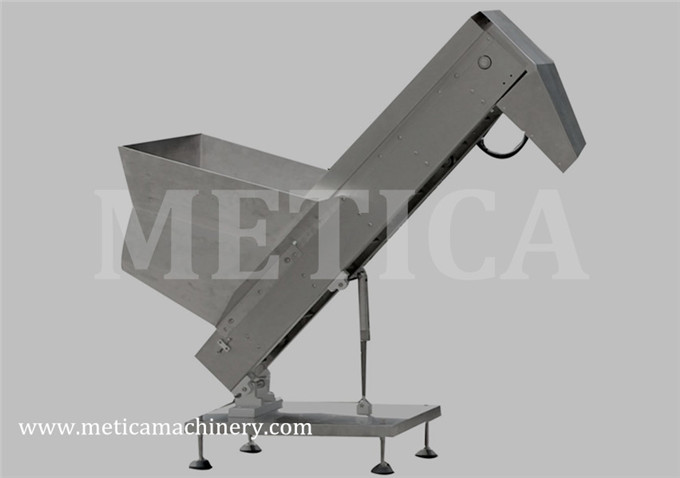

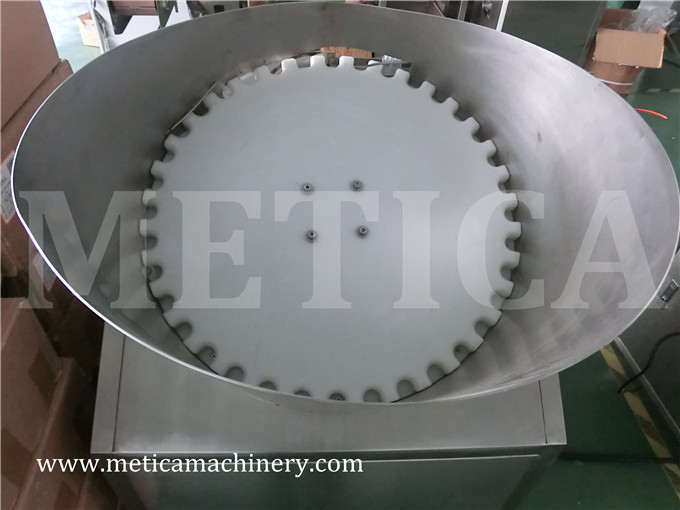

- Full automatic bottle sorting machine
- Automatic filling plug inserting and capping machine in 1 machine

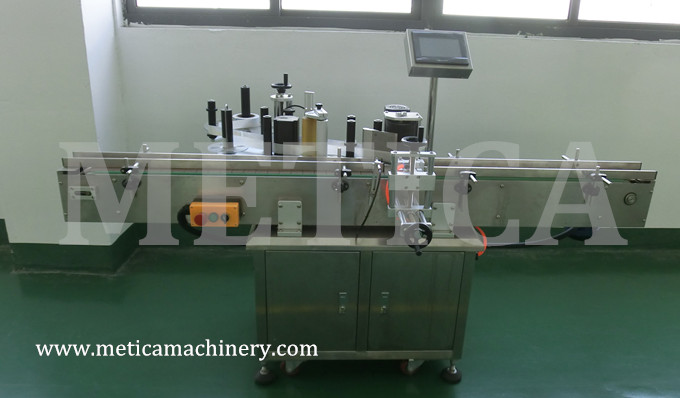

- Automation round bottle positioning labeling machine
- Automatic inkjet printer
- Automatic collection platform

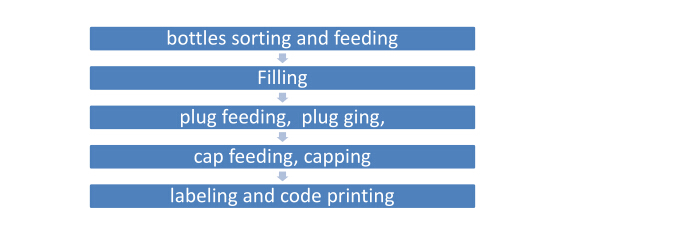

Workflow
the Whole Line technical parameter

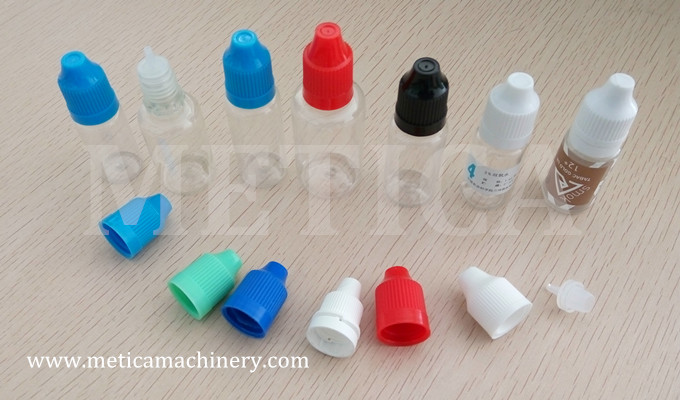

- Bottle applied: round plastic bottle
- Line speed: 1800-3000 bottles per hour
- Filling volume: 2-30ml
- Power: about 4.5KW
- Air pressure and consumption: 0.6-0.8Mpa
Spec and Feature
- The whole machine line is designed especially for 2-30ml liquid filling, capping, labeling
- The line speed is 30-50 bottles per minute
- Filling plugging-in and capping machine in one machine, save space and away from pollution
- Full automatic bottle sorting and feeding, lower the cost and at the same time working efficiency increased
- Famous branded electrical parts guarantee the line working stable and a longer working life
- Adopts peristaltic pump, high filling precision. No bottle, no fill, no drop, no leak

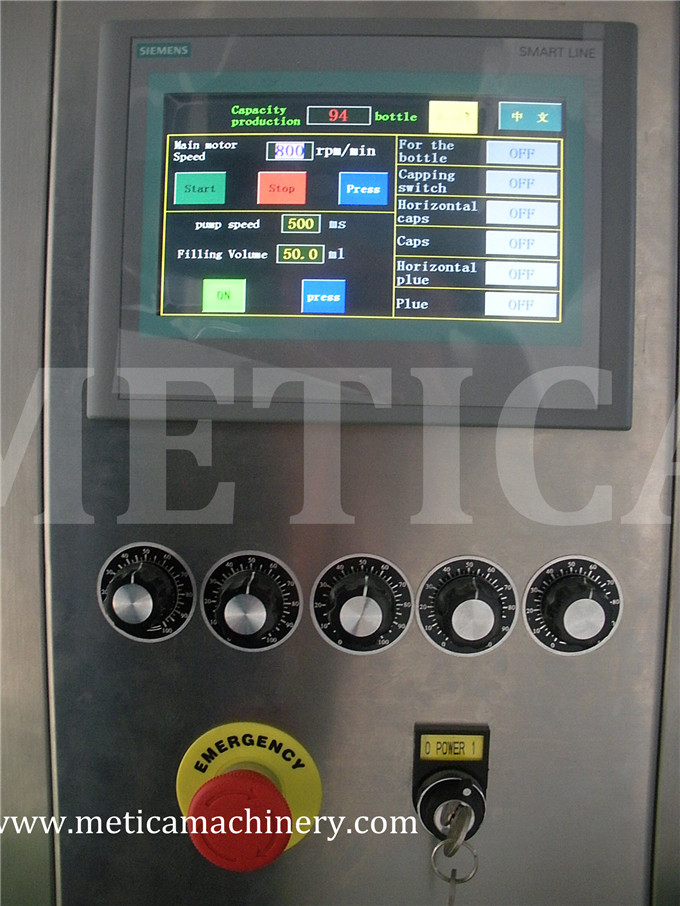

- Touch screen, easy operate and adjust human interface. English operation interface
- The machines can work together smoothly or work alone by PLC control
- The line is easy to install, operate, maintenance, and move
- Suitable for single, mass production, but no more than 3 kinds
- All the machine parts which contact liquid adopt corrosion resisting material and 316 stainless steel
- The machines have emergency stop Button and automatic interrupt device for safe operation
- Labors need: 1-2 workers
- Space for the line: 8000*1500*1900mm
- Power Supply
Project Examples
