Automatic Loop Control System for Smart Highway Tunnel LED Lighting Project.

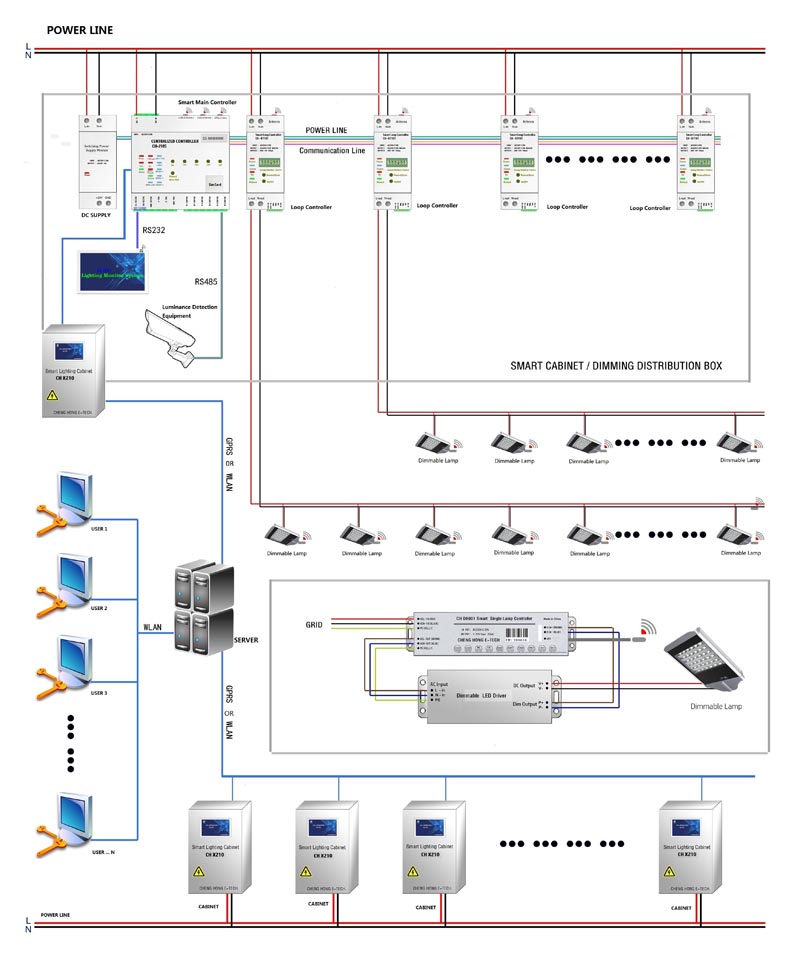

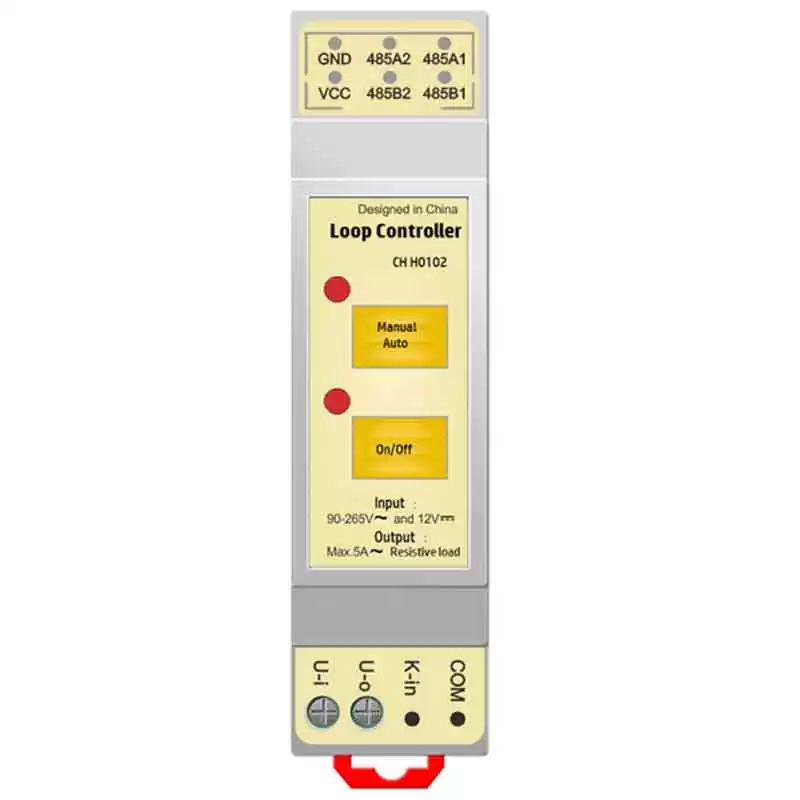

The CH-H0102 loop controller is independently researched and developed by our company. It controls the power supply of lighting fixtures through a human-machine interface and monitors the closed state of the power supply loop circuit, which is widely used for the highway road lights and tunnel lighting, and the industry lighting such as led high bay light & low bay light at warehouse and factory lighting projects.

The equipment adopts standard industrial bus RS485 technology, the communication distance can reach 2000 meters without repeater and range of visibility; 7 levels of repeaters can be set in the scene, and the maximum distance can be up to 7000 meters according to the calculation of 1000 meters for each level of repeater.



I: Specification



The CH-H0102 loop controller is independently researched and developed by our company. It controls the power supply of lighting fixtures through a human-machine interface and monitors the closed state of the power supply loop circuit, which is widely used for the street lighting tunnel lighting, and the industry lighting such as warehouse and factory projects.

The equipment adopts standard industrial bus RS485 technology, the communication distance can reach 2000 meters without repeater and range of visibility; 7 levels of repeaters can be set in the scene, and the maximum distance can be up to 7000 meters according to the calculation of 1000 meters for each level of repeater.



II: Parameter


Item

Rating

Working Voltage

DC12V

Static power

< 2W

Output Loop Switch Qty.(MAX)

1 Loop Circuit

Control Current Per Loop(Resistive Load)

5A(MAX)

Normal Working Temperature

-25℃~+60℃

Limited Working Temperature

-40℃~+65

Storage and Transportation Temp. Range

-45℃~+65

Storage and Working Humidity Range

≤85%



III: Functions Specification

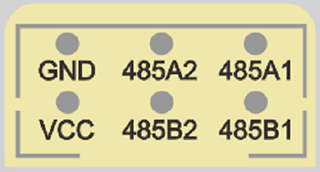

1. Upper Terminal Description




Terminal

Mark

Function

01

GND

DC power supply -

02

VCC

DC power supply +

03

485A2

Reserved

04

A85B2

Reserved

05

485A1

RS485 Communication Port A1

06

485B1

RS485 Communication Port B1

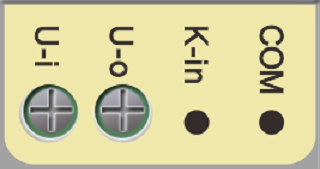

2. Lower Terminal Description



Terminal

Mark

Functions Specification

01

U-i

Loop Power (AC Contactor control) Live- Input

02

U-o

Loop Power (AC Contactor control)  Live - Output

03

K-in

Digital Input Wire-Input

04

COM

Digital Output Wire-Common

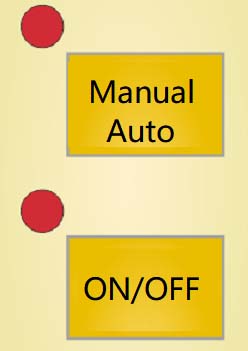

3. Button Description




N/M

Name

Function Description

01

Manual/Auto

Manual /Auto State switch button, press it to achieve Manual and Automatic state changing

02

ON/OFF

When it is under the Manual State: press this button to switch the loop state, that is say: to switch between closed and open state.



4. Communication Function

This device has RS485 communication channel.

The Advantages are as follows:

A. The device capacity in the gateway reaches 255 units.

B. Strong anti-interference: The wired part is an industrial bus, with strong anti-interference.



5. Switch Functions

The device contains a relay, through which the switch control of the small current loop can be realized, or the AC Contactor can be controlled through this relay to realize the switch control of the large current loop.


6. Digital Output Detection Function

The detection contact of the AC contactor can be connected to the switch signal detection port of the device to monitor whether the power supply circuit is normally opened and closed.



IV: DIMENSIONS

1. Sizes

05mm*23mm*59mm

2. Installing Mode

Installation by rail.
