Automatic Multi Wire Sharpening Machine

ZK-30 Automatic Multi Wire Sharpening Machine

It is a new processing equipment for multi wire sharpening which ranged from 12m to 30m with beads’ diameter from Φ6.0 to Φ8.0mm.

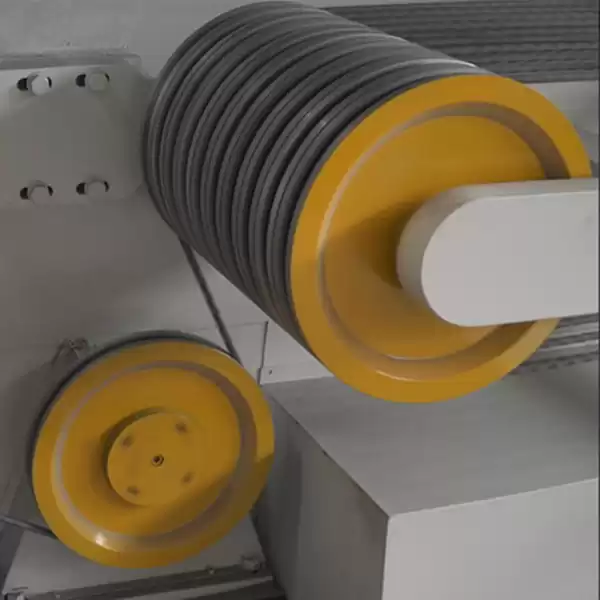

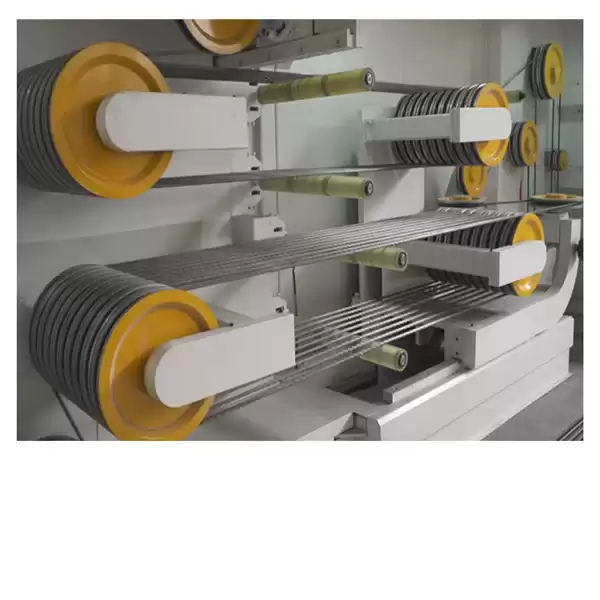

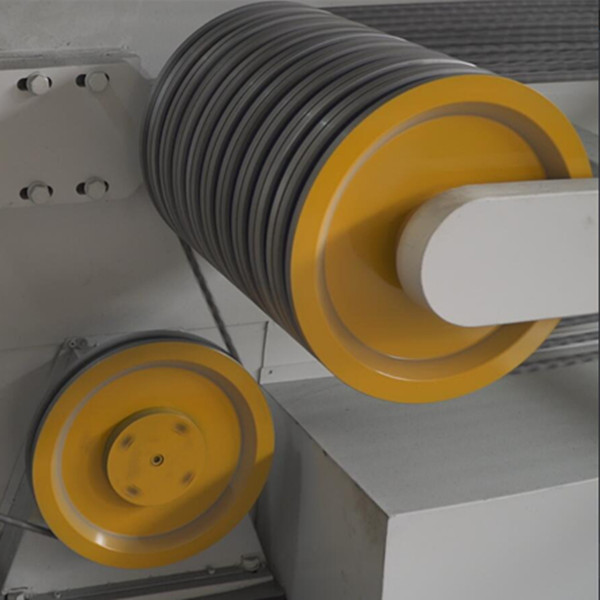

How does multi-wire sharpening machine work? The servo motor drives the grinding wheel, and variable frequency motor drives the whole wires, combining with grinding parameters set in PLC , it will achieve automatic sharpening.



FEATURES:

  • Automatic grinding device with servo motor and variable frequency driving.
  • Wire rotation speed controlled via frequency converter.
  • Personalized mirco-computer interface and digitized display.
  • Procetion device and dust absorption system.



TECHNICAL PARAMETERS:

  • Power Voltage: AC Three-Phase 380v, 50hz (other voltages and frequencies are upon demand)
  • Wire Outer Diameter: Φ6.0 – Φ8.0mm
  • Wire Length: 12m-30m
  • Spindle Motor Power: 5.5kw
  • Main Grinding Wheel Motor Power: 4kw
  • Vice Grinding Wheel Motor Power: 4kw
  • Main Swing Motor Power: 0.75kw
  • Vice Swing Motor Power: 0.75kw
  • Main Servo Motor Power: 0.75kw
  • Vice Servo Motor Power: 0.75kw
  • Overall Dimension(mm): 3000*1600*2400
  • Net Weight: 3000kg

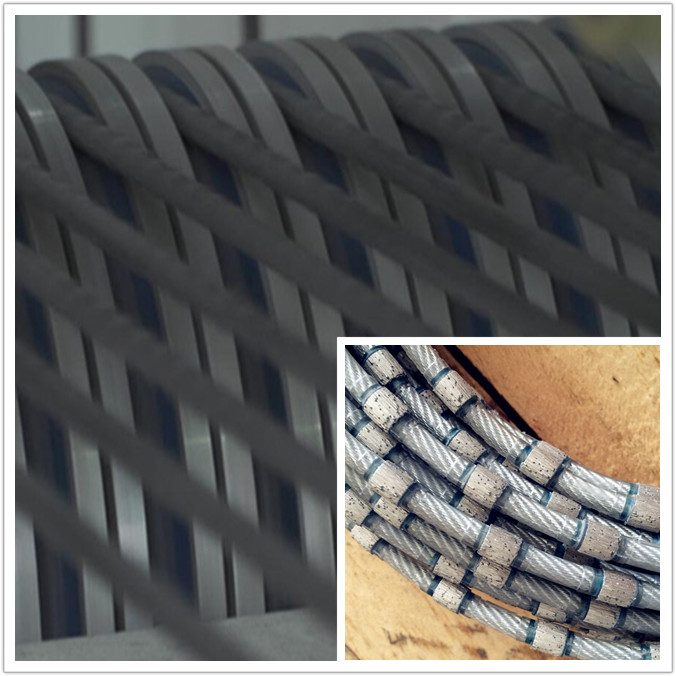

GRINDING RESULT:
