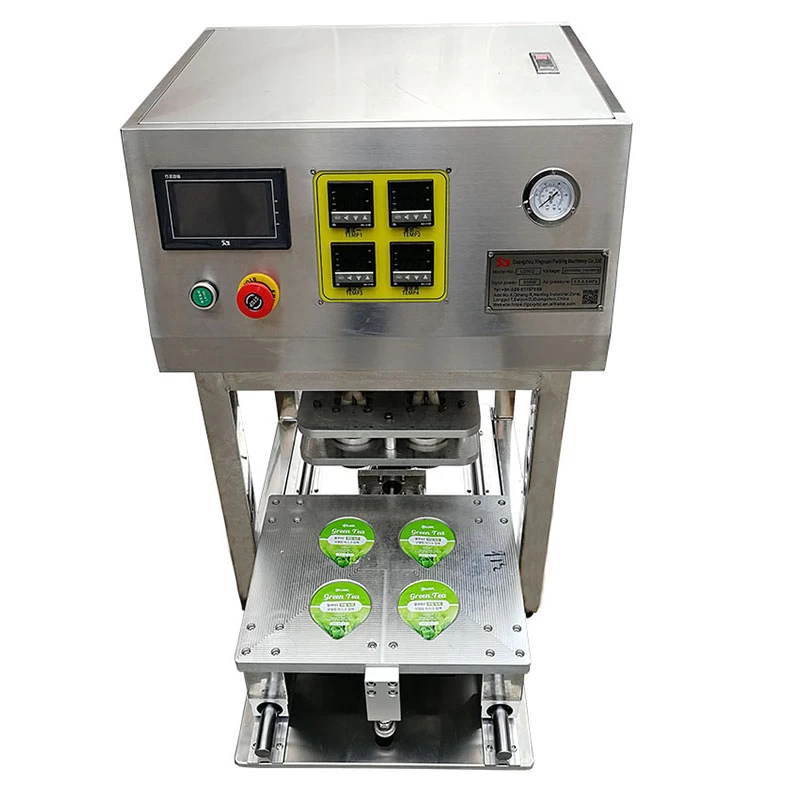

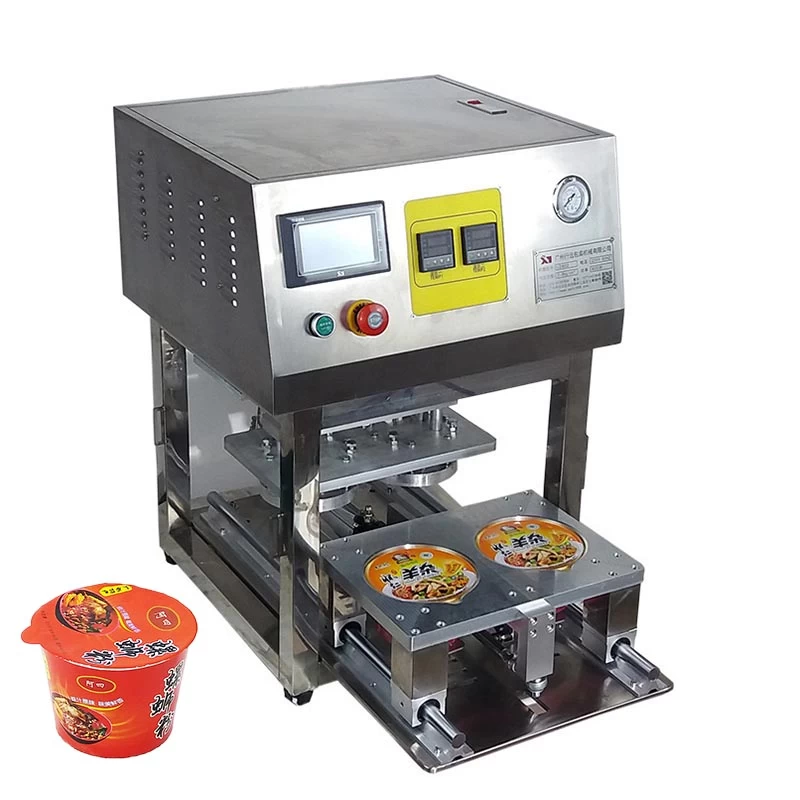

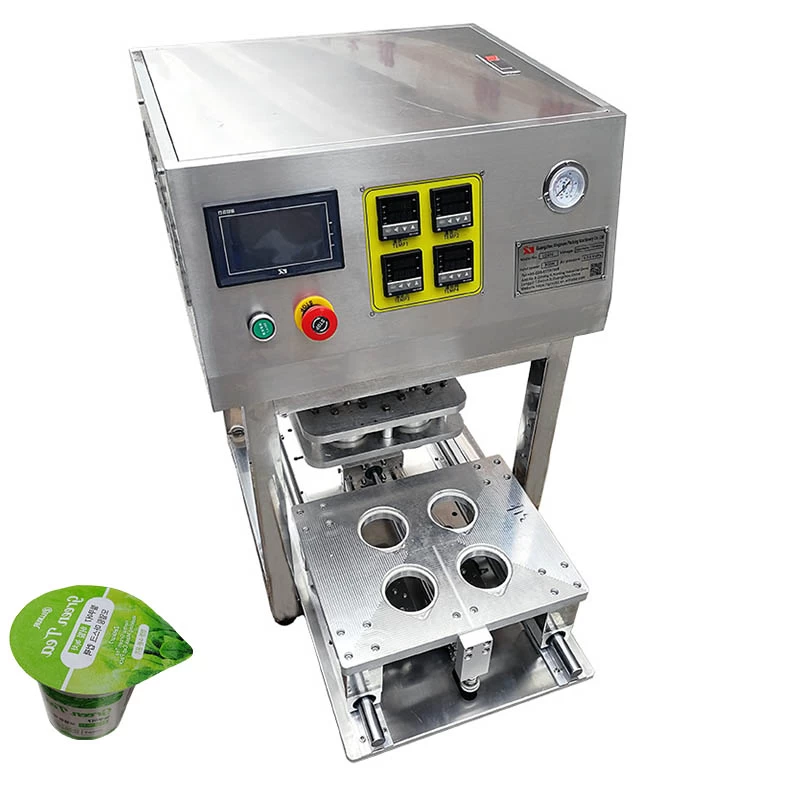

Product Item:Automatic paper cup top heat sealing lid machine
Description
What features of Automatic paper cup top heat sealing lid machine?
-
Special produced according to customer’s requirement.
-
All stainless steel construction.
-
Highly automation: auto cup sealing,auto mould push/pull out-in.
-
Easy operation, high sealing precision.
-
Screen touch control panel.
-
Pneumatic and heating seal.
Operation:
-
Take cups into the mold cavities by hand,manual put lids.
-
Piston system:remove into seal automatic.
-
Take out: Slide out sealed cup automatic.
-
Sealing temperature and time adjustable via control panel.
What applications of Automatic paper cup top heat sealing lid machine ?
-
Container can be round,rectangular,square, paper cup or plastic cup possible.
-
Widely use in food industries, beverage, pharmaceutical ,cosmetic.
Options:
-
Stainless steel can be 201,304,316.Standard is SS201 .
-
Lid type :pre-cut lid,aluminum foil, paper.
Why choose us ?
-
We are China leading Packing Machines Manufacturer ,over 17 years in this field.
-
Alibaba Assessed Gold Supplier.
-
100% QC inspection before shipment.
-
Best Quality &Best Service with Competitive Price.
-
Fast delivery time.
Technical parameters
|
Technical Specifications
|
|
Model
|
LD802B
|
|
Voltage(V)
|
AC110-220V/50-60Hz
|
|
Power(W)
|
500-1000W
|
|
Cup sealing size (mm)
|
50-250mm as customer's requested
|
|
Packing speed(cups/hour)
|
400-800
|
|
Sealing materials
|
PP,PE,PET,PS and etc.
|
|
Working temperature
|
0-300 ℃
|
|
Air pressure range
|
0.5-0.8Mpa
|
|
Net Weight(kg)
|
90kg
|
|
Machine dimension(mm)
|
850*600*750mm
|
