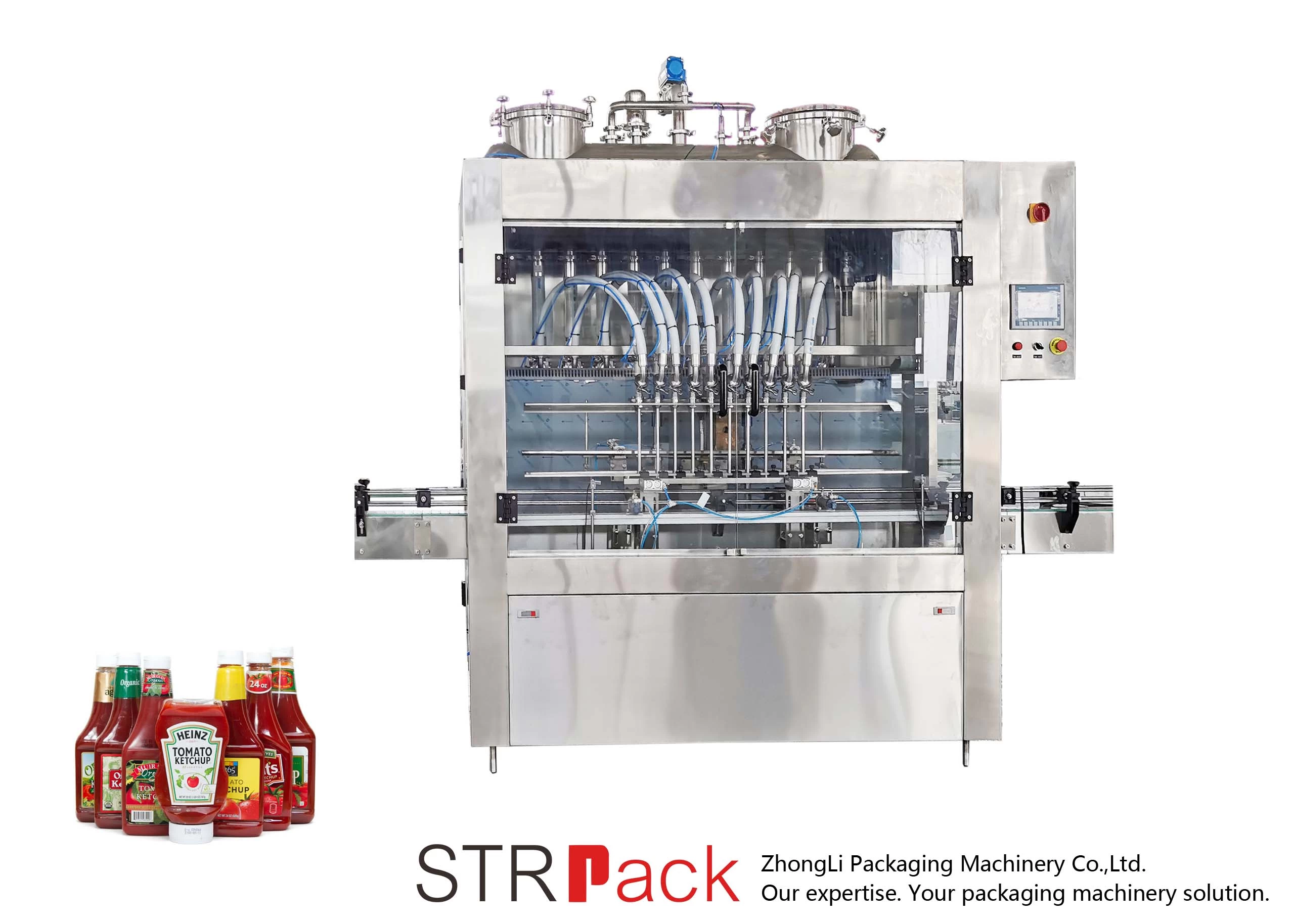

Automatic Piston Type Sauce Filling Machine
Brief Introduction:
This Automatic Piston Type Sauce Filling Machine is piston type filling machine special made for filling cream or liquid foodstuff such as ketchup, sauce, honey, jam, peanut butter , mayonnaise, salad dressing etc.
Foodstuff standard product contact parts , and
ok for high product temperature.
CIP product hopper , easy for cleaning.
Filling head quantity can be custom-made
according to different production capacity such as 6/8/10/12/16 /20 heads.
The filling system is driven by servo motor which assure high filling accuracy
,also easy to set filling volume on the touch screen directly.
Features:
◎Made by high quality 304 Stainless steel,
it is durable.
◎316 stainless steel product contact parts
is available for optional according to product features.
◎Dosing system is driven by servo motor, it
assure high filling accuracy.
◎Liquid receive tray is available in case any dripping from filling nozzle.
◎Air blow off filling nozzle is available
for sticky product to avoid tail stringing on nozzle
◎CIP Product hopper
◎No bottle no fill.
◎Linear structure which is flexible for
varies bottle size.
◎Controlled by PLC and operation through touch screen.
◎No tooling needed to change over different size bottles.
◎Quick-install connecting parts , it is easy to disassemble and clear machine.
Main Parameter:
|
Model
|
Unit
|
STRFS
|
|
Nozzle Number
|
PCS
|
6
|
8
|
10
|
12
|
|
Filling volume
|
Ml
|
100-1000ml/
250-2500ml/500-5000ml
|
|
Production capacity
|
Bottle/h
|
1000-3000 pcs/Hour (
Depends on Filling volume)
|
|
Quantitative error
|
%
|
≤±1%
|
|
Voltage
|
V
|
380V/220V, 50Hz/60Hz
|
|
Power
|
KW
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Air Pressure
|
MPA
|
0.6-0.8
|
|
Air consumption
|
M3/min
|
0.8
|
1
|
1.2
|
1.2
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
