Product Introduction
The automatic series burning machine is mainly aimed at the texturing treatment of the surface of granite slabs. The advent of this series of equipment has completely changed the defects of low efficiency, high cost and uneven surface texture of the previous manual burning slabs, making the stone surface texturing treatment truly high In the new era of efficiency, high quality and low cost, it is the ideal equipment of choice for stone texturing.
Technical Parameters
|

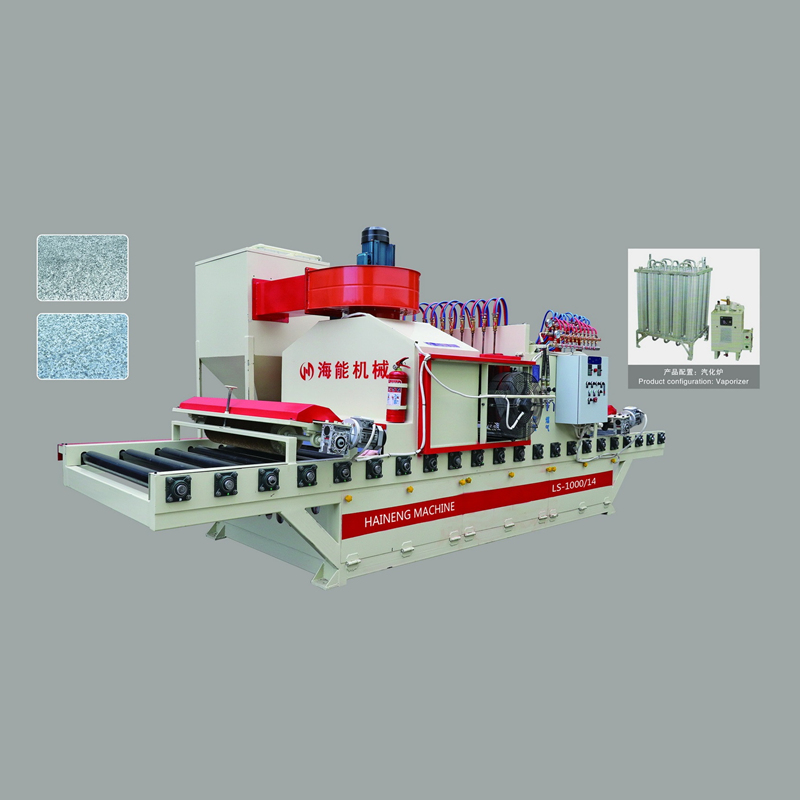

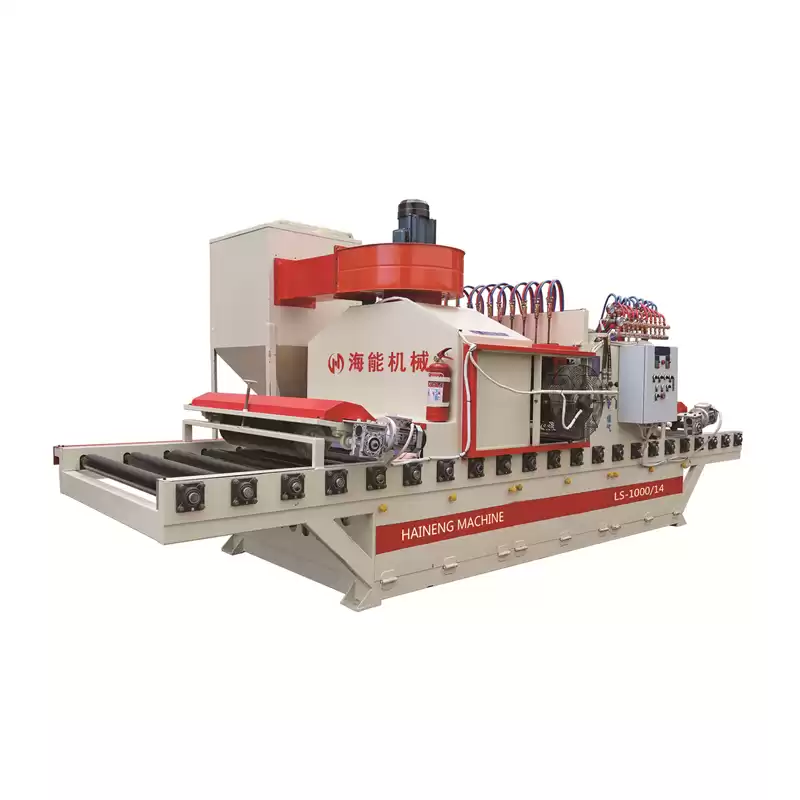

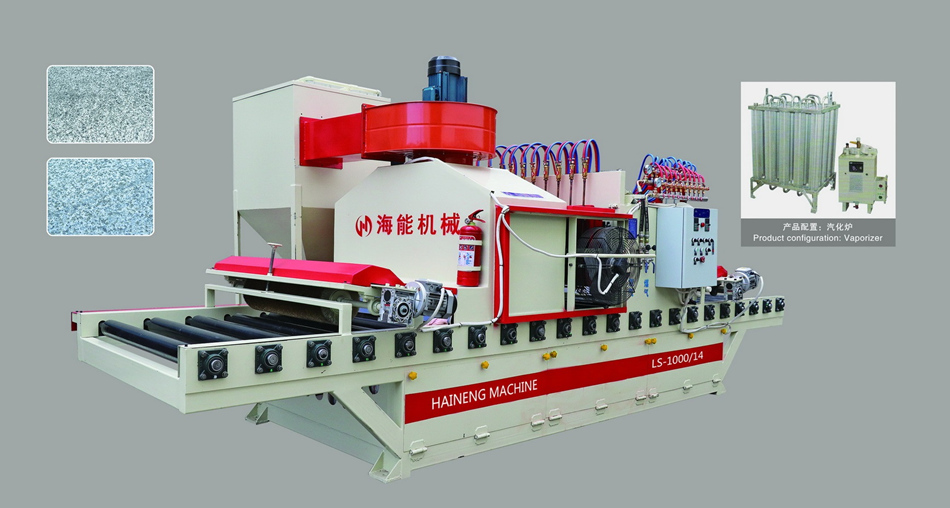

Automatic Plate Burning Machine
|
|
Type
|
unit
|
LS600
|
LS1000
|
LS1200
|
|
No.of heads
|
pcs
|
12
|
16
|
20
|
|
Max. Board width
|
rpm
|
650
|
850
|
1050
|
|
Max. Board thickness
|
mm
|
150
|
150
|
150
|
|
The motor power
|
kw
|
6
|
6
|
6
|
|
The work efficiency
|
m2/hour
|
120-150
|
120-150
|
120-150
|
|
Running noise
|
db(a)
|
50
|
50
|
50
|
|
Dimension (L×W×H)
|
mm
|
8000×2000×2500
|
8000×2200×2500
|
8000×2400×2500
|
|
Total weight
|
kg
|
2100
|
2300
|
2500
|
