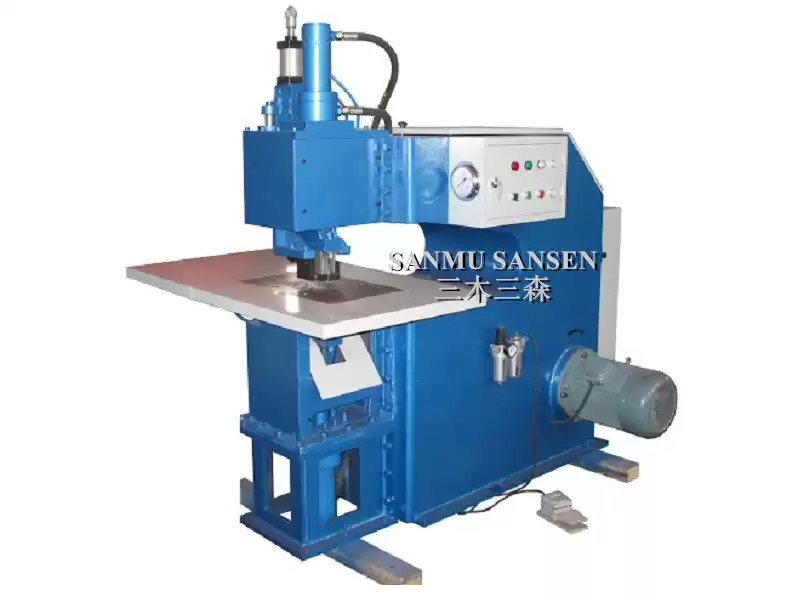

Production name:Automatic plywood core veneer patching machine
|
修补单板尺寸（蝶形）
Mending veneer size（Butterfly
model）
|
40×60 mm
|
60×100 mm
|
75×130 mm
|
90×150 mm
|
|
修补单板厚度（mm）
Mending
veneer thickness
|
0.8～3
|
|
修补速度
Mending speed
|
约3～5 s/次（Each
process takes about 3～5 seconds.）
|
|
电机功率（KW）
Power
|
4.25
|
4.25
|
6.05
|
6.05
|
|
压缩空气（kg/cm2）
Compressed air
|
4～6
|
|
额定油压（MPa）
Normal oil pressure
|
16
|
16
|
16
|
16
|
|
油缸直径（mm）
Diameter of cylinder
|
Φ50
|
Φ63
|
Φ80
|
Φ80
|
|
外形尺寸（长×宽×高）（mm）
Overall dimension
|
1795×1300×1750
|
1795×1300×1750
|
1810×1500×1750
|
1810×1500×1750
|
|
重量（kg）
Approx weight
|
1200
|
1200
|
1500
|
1500
|
Features:
1. Widely used in patching the wood veneers with scars and holes.
2. Comparing with traditional manual veneer fixing way, this machine has more easy operation.
3. The defected wood veneer after mending looks more smooth and beautiful.
