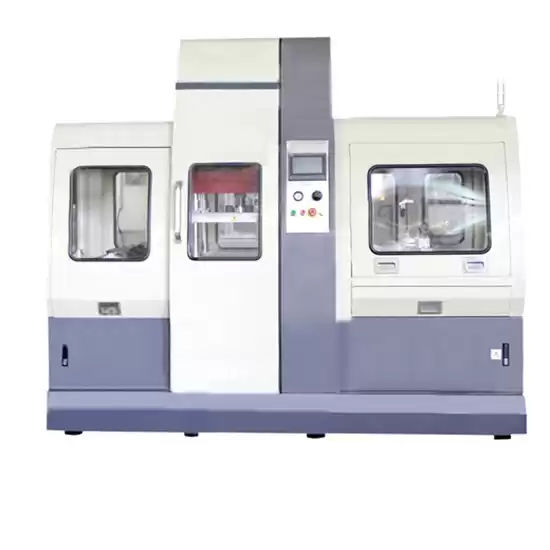

Automatic Pouch Cell Forming Machine
This equipment is suitable for the flexible packaging aluminum-plastic film auto pouch forming. Mainly included the aluminum-plastic film auto put volume, floating roll tension control, automatic pouch forming, auto fixed-length pull material, auto cutting, and other functions.
Features
● Pressure cylinder clamping, servo pouch forming, depth is adjustable；
● The cutter location parameter settings can be touch screen；
● Servo fixed-length puller；
● Finish Two pieces film in one time；
● Gas rose axis vertical cantilever plate is placed.
Technical Parameters(for reference)：
|
ITEM
|
CKA200
|
CKA280
|
|
measures
|
2230*695*2020mm(L*W*H)
|
3170*960*2175mm(L*W*H)
|
|
Weight
|
About 2T
|
About 3.5T
|
|
Power
|
AC220V/50HZ, 2.5KW
|
AC220V/50HZ, 2.5KW
|
|
Air source
|
≧0.6Mpa,100L/Min
|
≧0.6Mpa,100L/Min
|
|
Applicable range
|
L:≤370mm,W:≤175mm,D:≤10mm
|
L:≤370mm,W:≤175mm,D:≤10mm
|
|
Vacuum source
|
≧18PPM
|
100-500pcs/hour
|
|
Capacity
|
≧99%
|
≧99%
|
|
Action
|
2230*695*2020mm(L*W*H)
|
3170*960*2175mm(L*W*H)
|
