Automatic Powder Coating Line
♥ Tips:We produce the machine as your requirments
1.Powder coatingad's vantage over conventional liquid coatings
Powder coatings emit zero or near zero volatile organic compounds (VOC). Powder coatings can produce much thicker coatings than conventional liquid coatings without running or sagging. Powder coating overspray can be recycled and thus it is possible to achieve nearly 100% use of the coating. Powder coating production lines produce less hazardous waste than conventional liquid coatings. Capital equipment and operating costs for a powder line are generally less than for conventional liquid lines. Powder coated items generally have fewer appearance differences between horizontally coated surfaces and vertically coated surfaces than liquid coated items. A wide range of specialty effects is easily accomplished which would be impossible to achieve with other coating processes.
2.Powder coating line component:
Spray pre-treatment system : Dipping pretreatment with overhead crane, or fully automatic spraying pre-treatment.
Powder spraying booth: Automatic powder coating reciprocator, Manual powder coating and Semi-auto (Auto-powder coating with manual repairing spraying) are for your choice.
Drying tunnel oven : Drying oven which drying the water after pretreatment is designed according to customer actual conditions.
Curing tunnel oven : Tunnel curing oven, bridge type curing oven.
Conveyor system : Closed-circuit conveyor, power and free conveyor, multi-track conveyor, and so on.
Electric control system: PLC control, with or without touch screen.
3.The powder coating equipment we produced:
Electrostatic powder coating machine

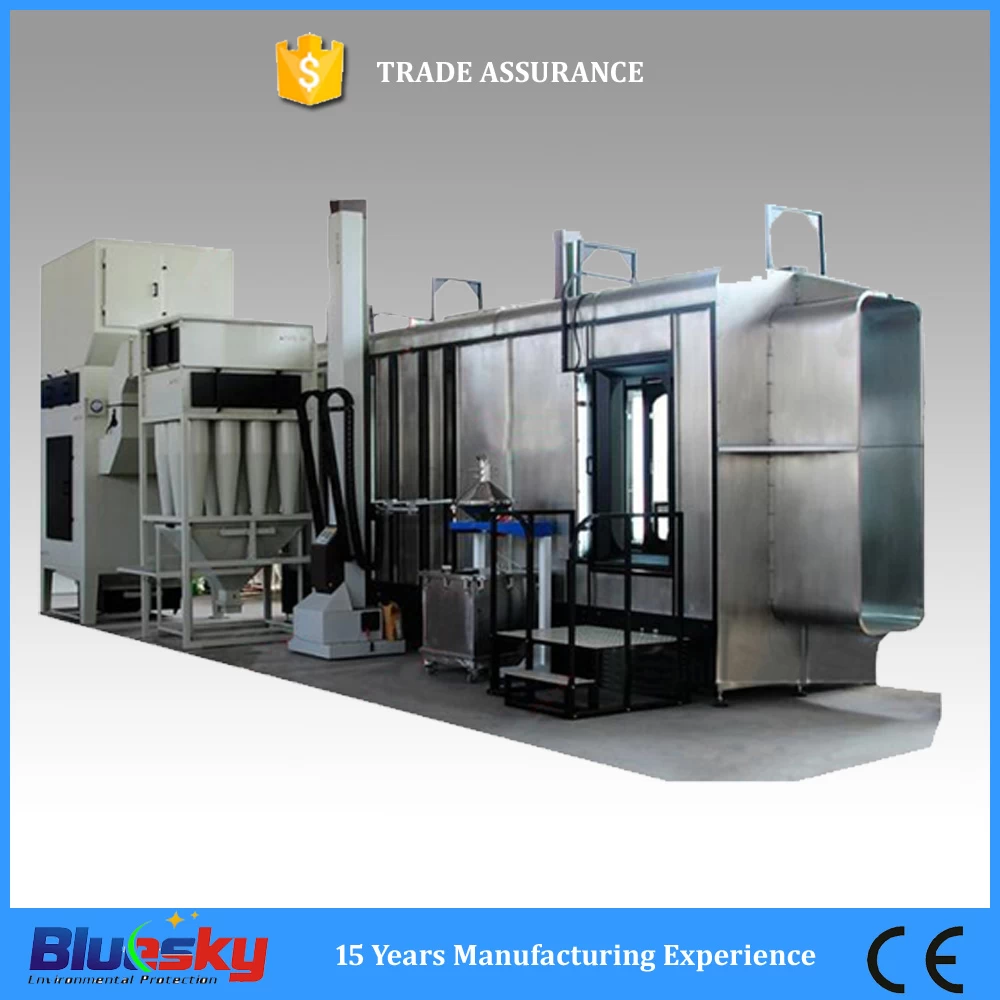

Powder coating spray booths
Powder coating curing oven
Manual powder coating line
Semi-automatic powder coating line
Full automatic powder coating line
Reciprocating machine
Sieving machine
4. The specifications you need to tell us.
1. The size of workpiece,especially the max size
2. The max weight of the workpiece
3. Is there any requirements about the suspension of the workpiece?
4. The material of the workpiece
5. The anticipative output for the biggest size of the orkpiece(how many pcs in 8 hours)
6. The length,width and height of the factory available for the powder coating line
7. The heating power:Liquefied Petroleum Gas, Liquefied natural gas,diesel,or electric?
8. Do you need to change colors every day? How many colors do you have in total?
9. Do you need automatic painting or manual painting?
10. Do you need pre-treatment process? If you do,you like spray pre-treatment or bath pre-treatment?
11. The local electricity conditions(_V/_Phase/_Hz)
12. Do you have any special requiremnts about the package?
