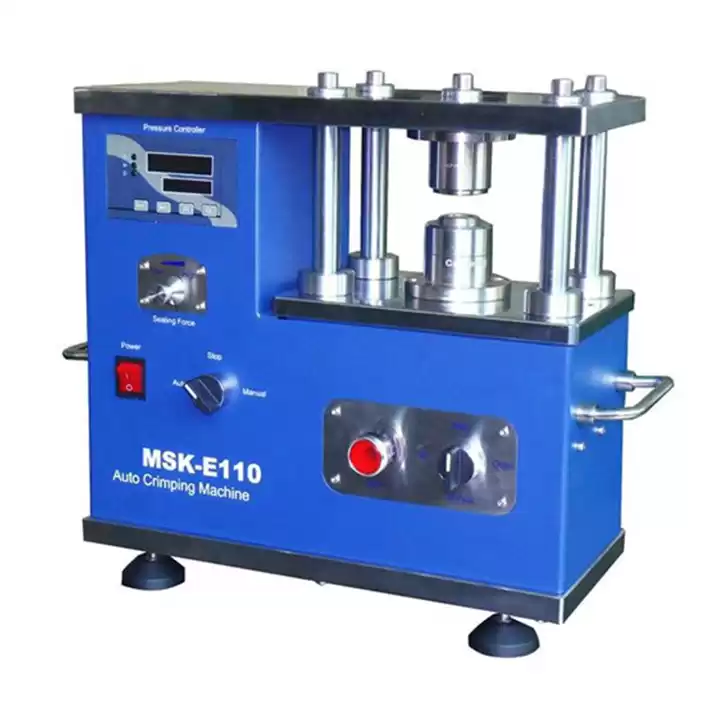

Automatic Pressure Crimper Crimping Machine For Coin Cells
1 The auto button battery crimper for various types of coin cells, such as CR2016, CR2025 and CR2032. It is an ideal tool to be operated both inside and outside of a glove box.
2 This electric crimping machine pressure applied on coin cells is adjustable in order to meet various sealing requirements.
3 With different die, can also finish work withdry powder/wet powderpress sheet for electrode forming.
|
Voltage
|
110 - 240V AC 50/60Hz
|
|
Max pressure
|
200kg/cm2
|
|
Die Set & Compatibility
|
Assembling and disassembling dies for CR2032, CR2025 & CR2016 Button Cell
|
|
Structure
|
Heavy Duty Steel Platform
|
|
Product Dimensions
|
385mm(L) x 160mm(W) x 325mm(H)
|
|
Compliance
|
CE Certified
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Application Notes
|
Maintaince: Electrolytes are highly corrosive materials, and therefore the dies must be cleaned with alcohol after each use to avoid corrosion and change of shape
|
|
Net Weight
|
33 kg
|
|
Shipping Weight
|
55 kg
|
