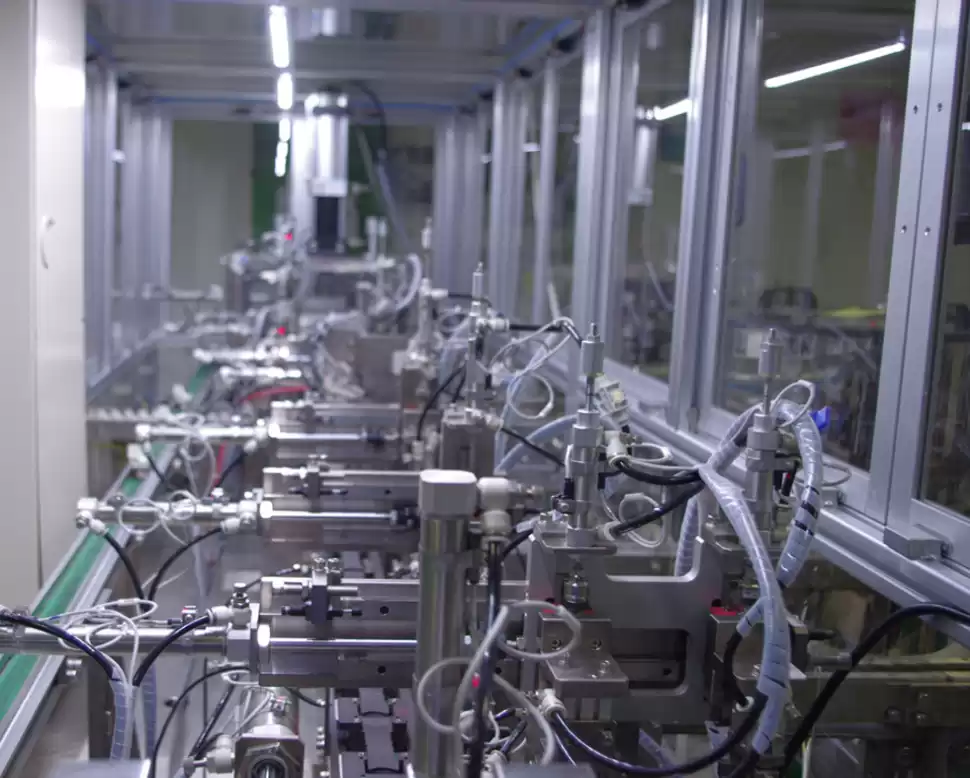

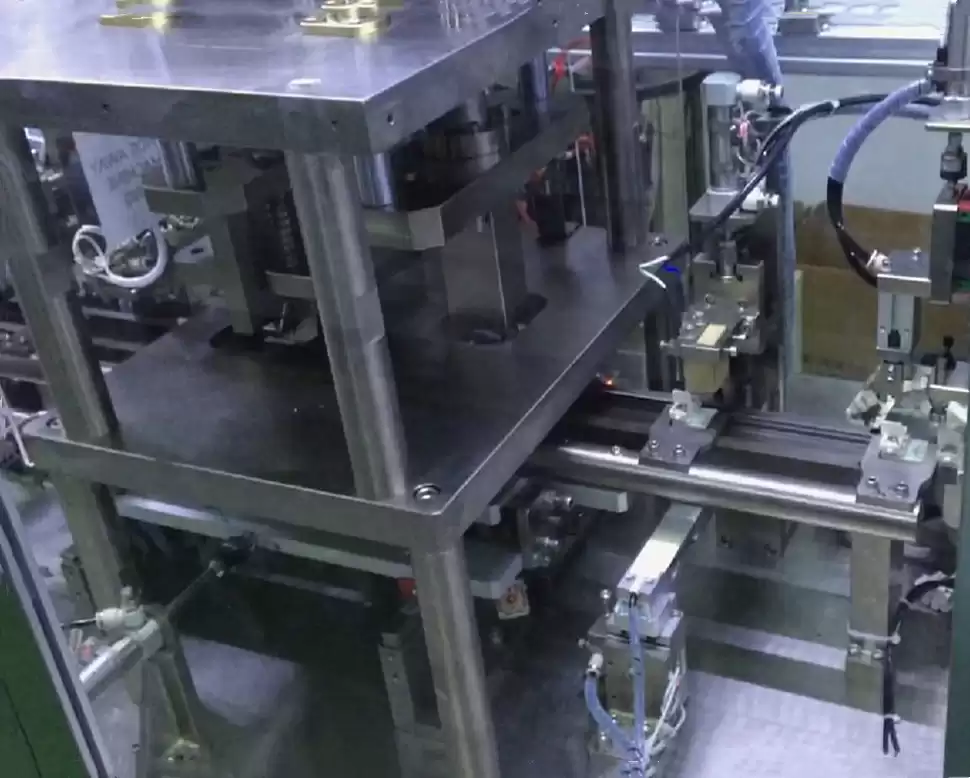

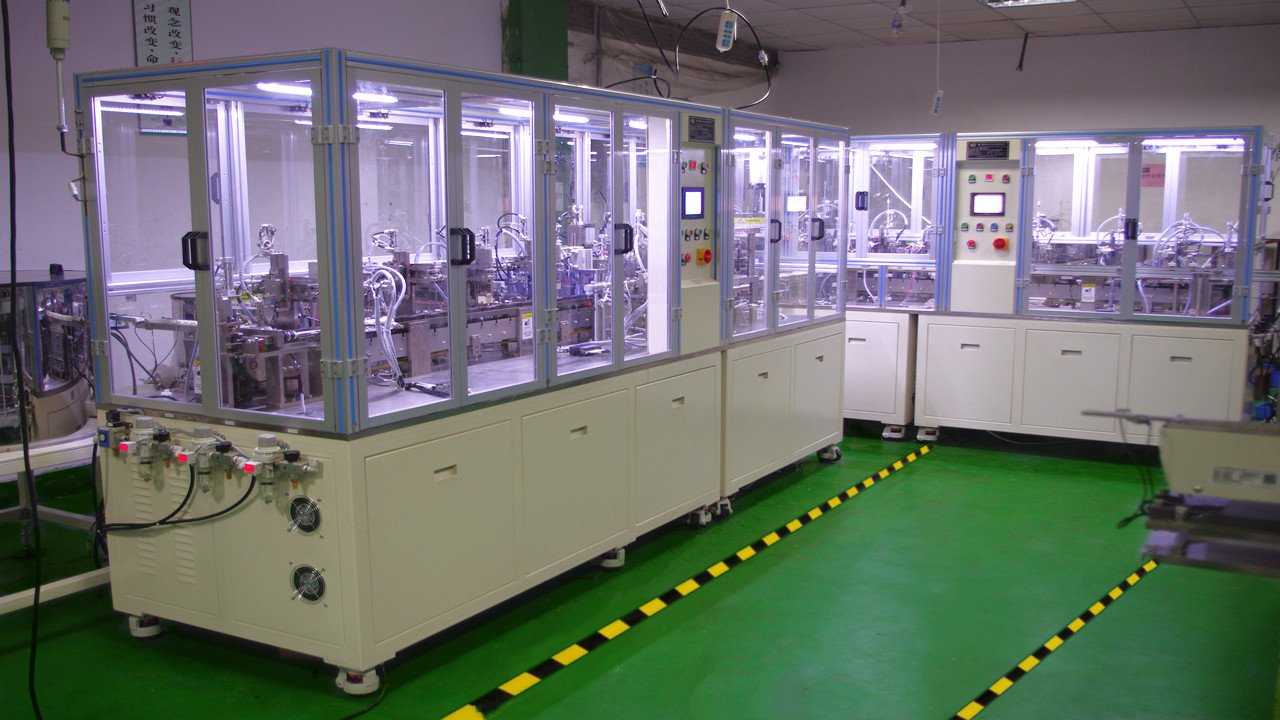

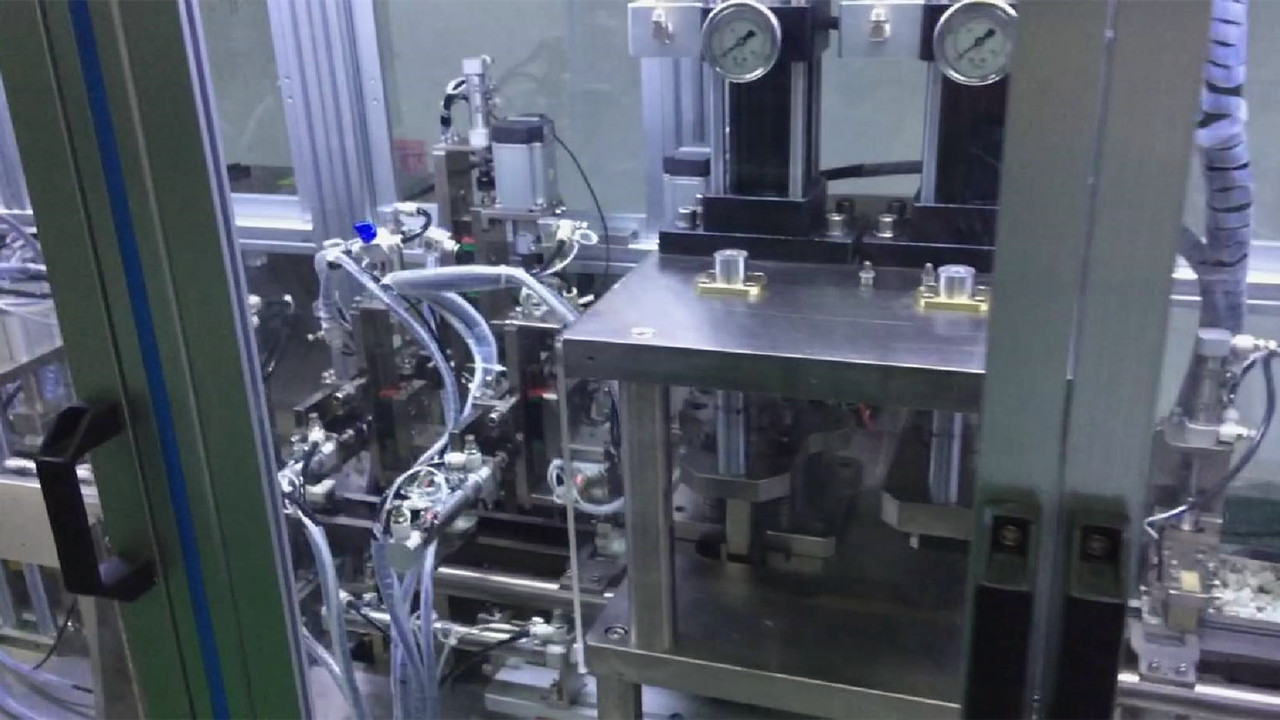

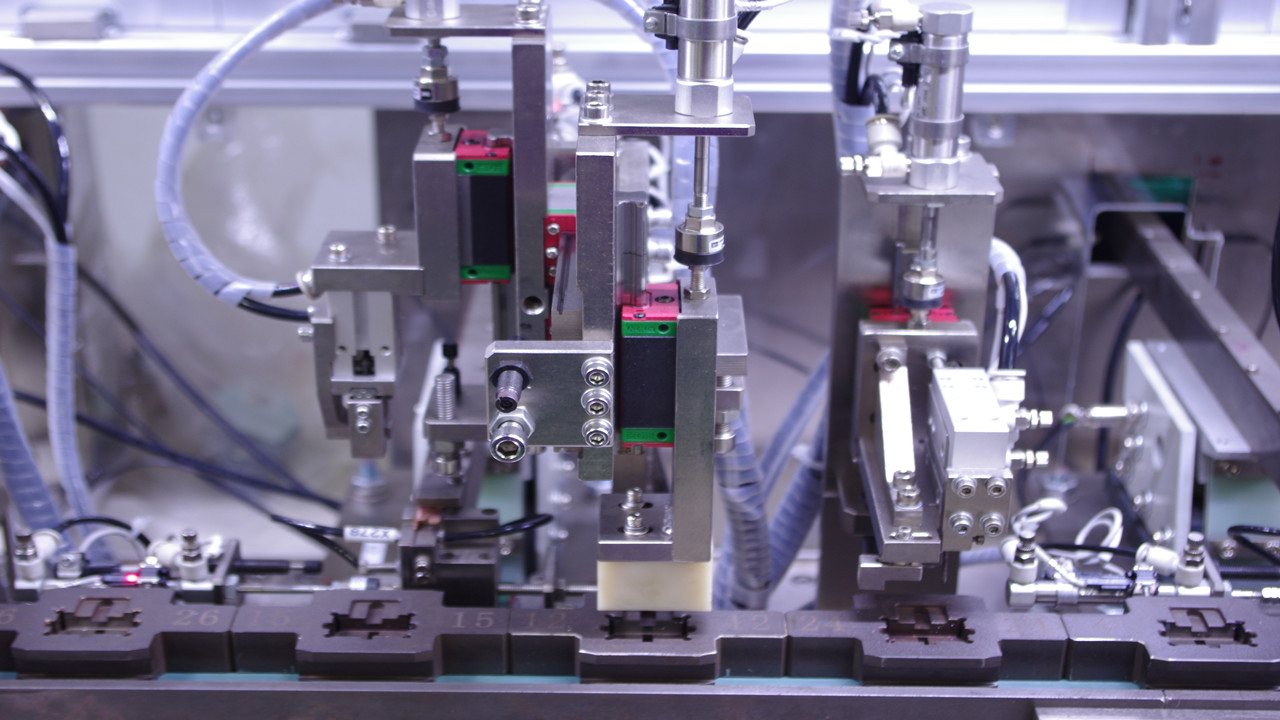

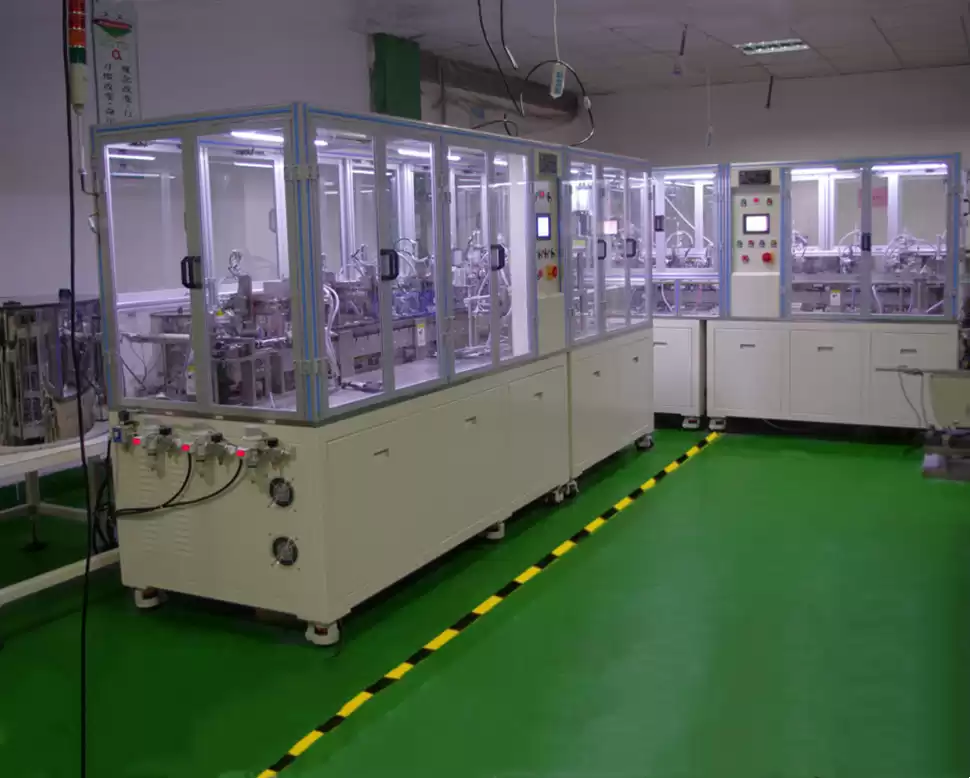

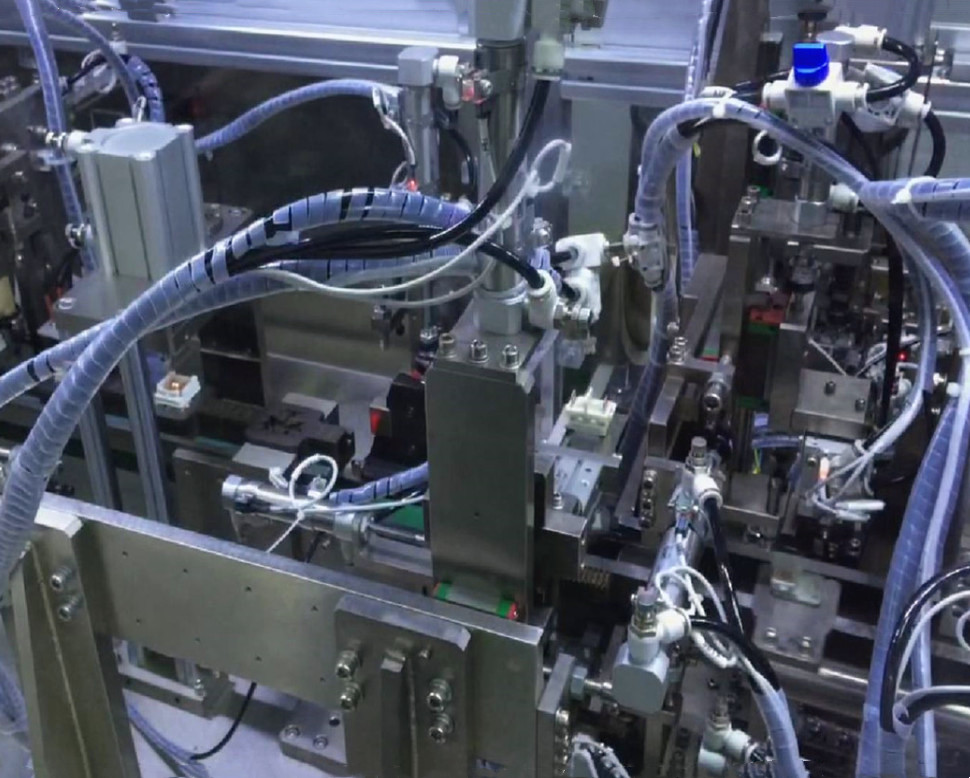

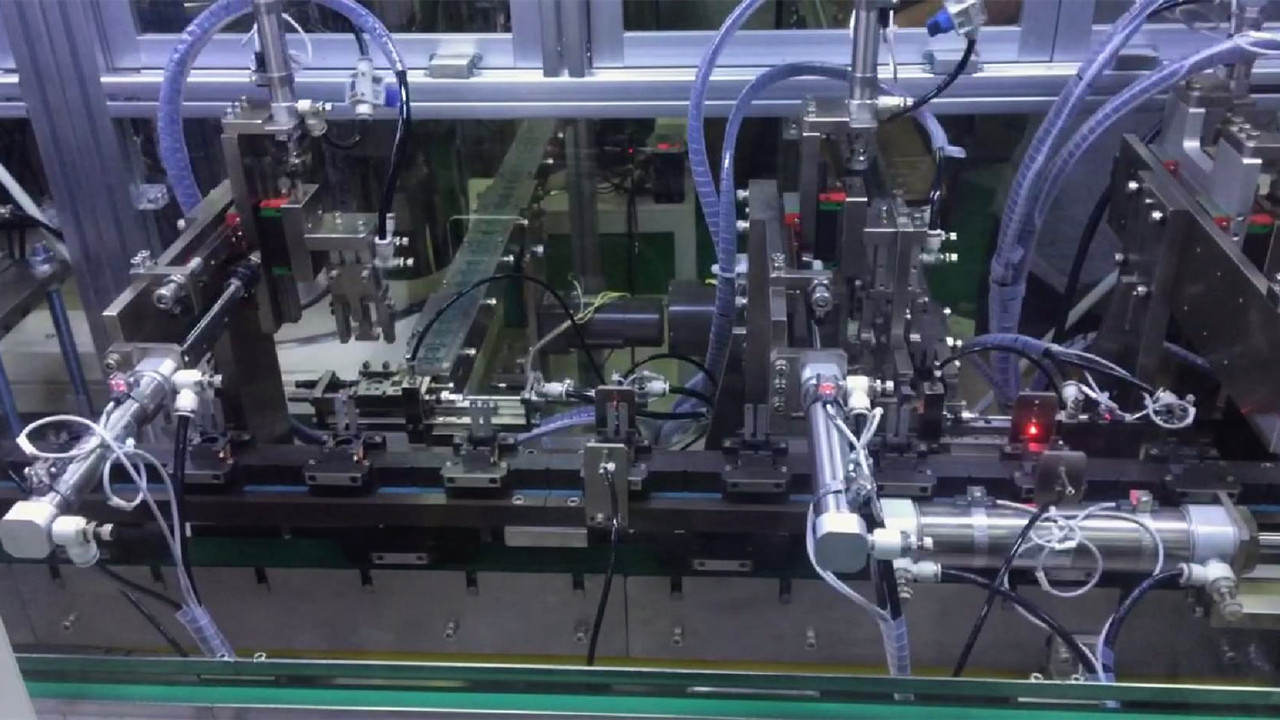

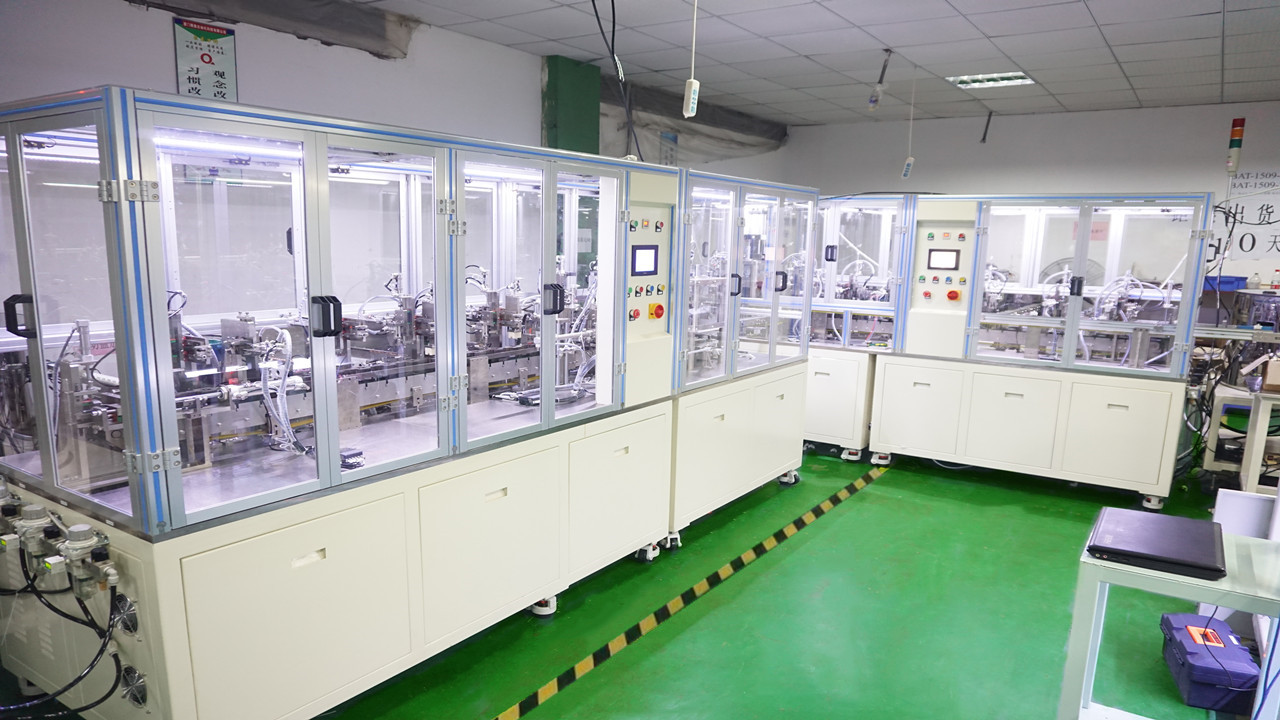

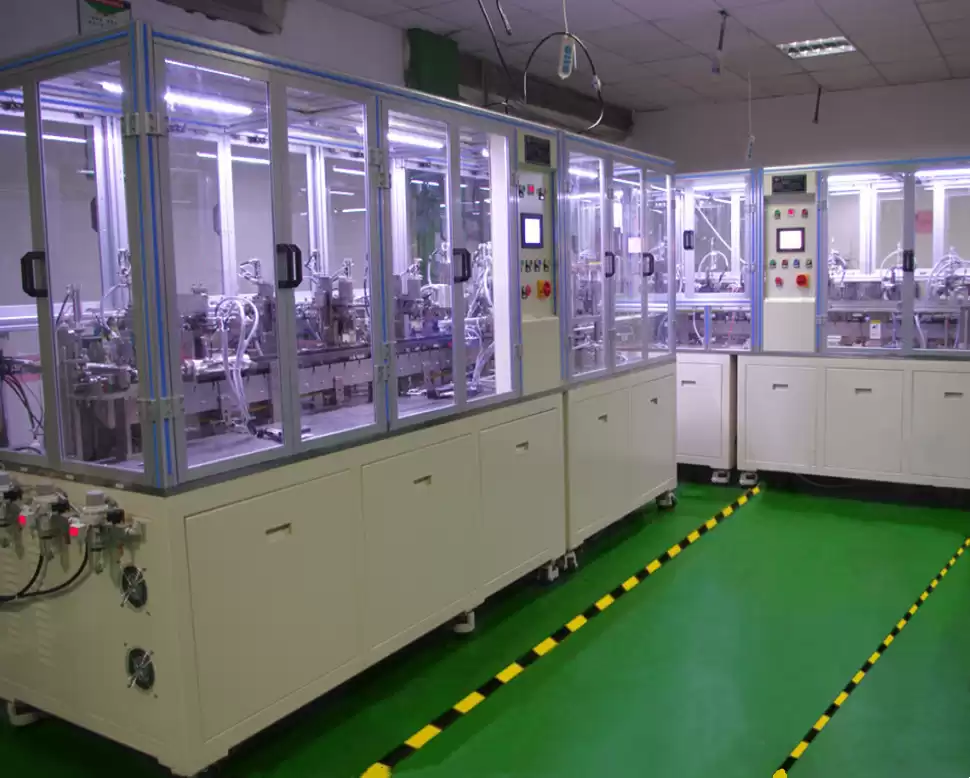

Automatic Production Line For Relay Coil

This relay automatic assembly line adopts PLC control system to automatically complete feeding, assembly and finished product discharge; it greatly improves production efficiency, reduces workers and reduces costs. BOT is striving to become an expert and outstanding service provider in automation industry.

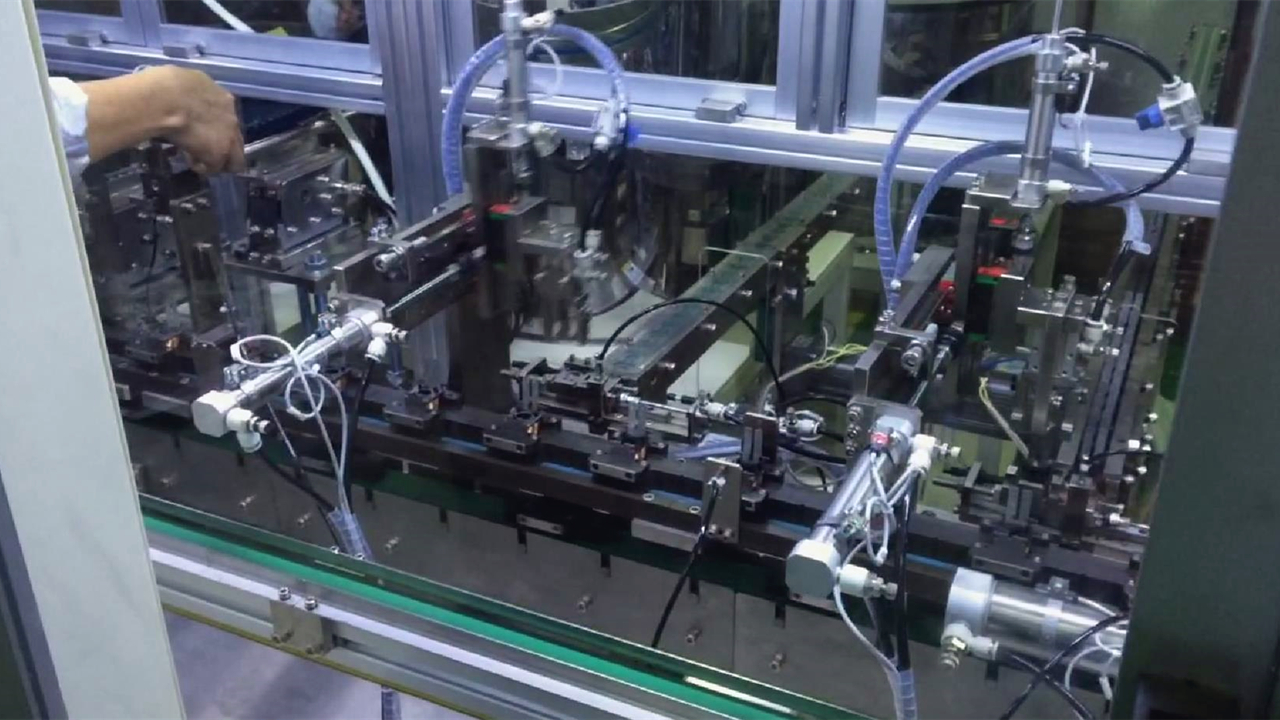

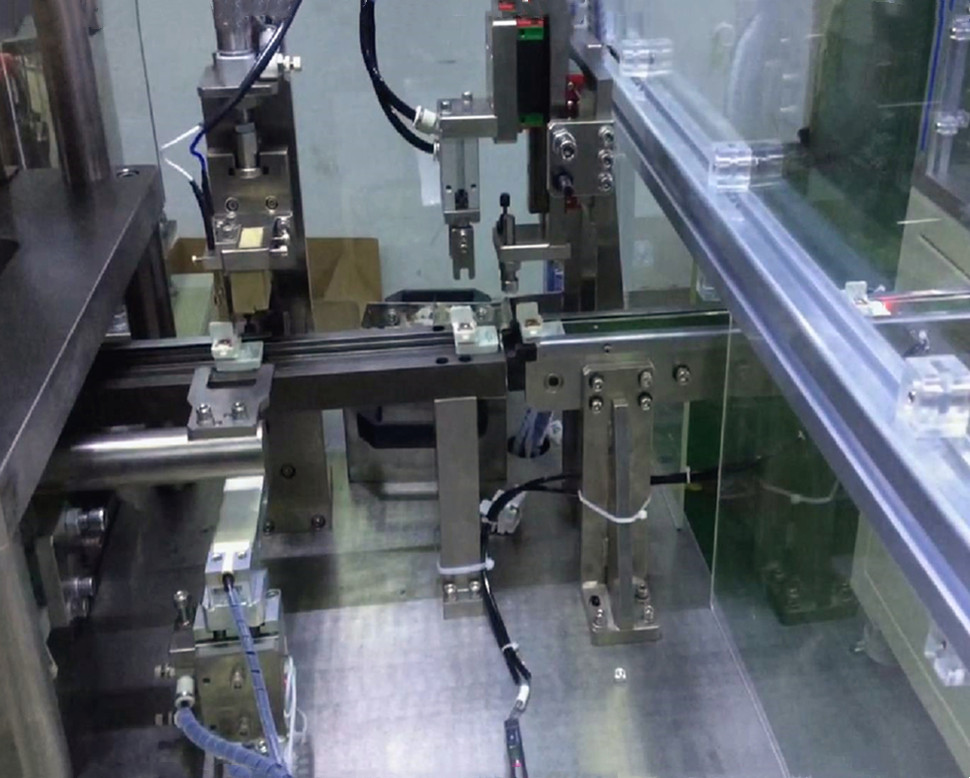

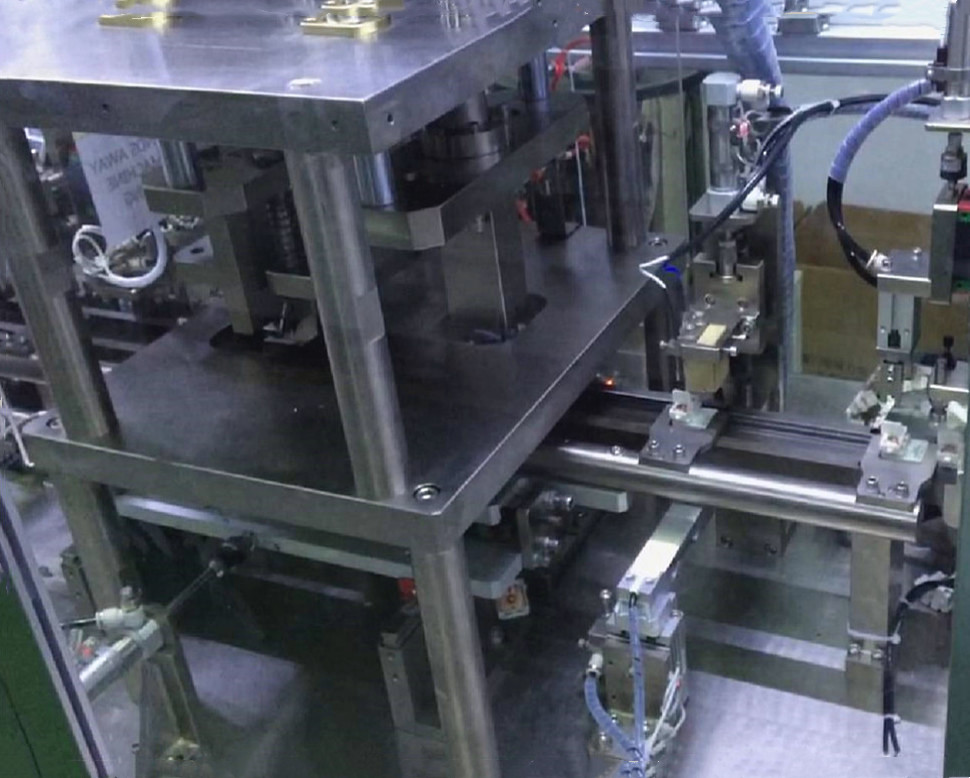

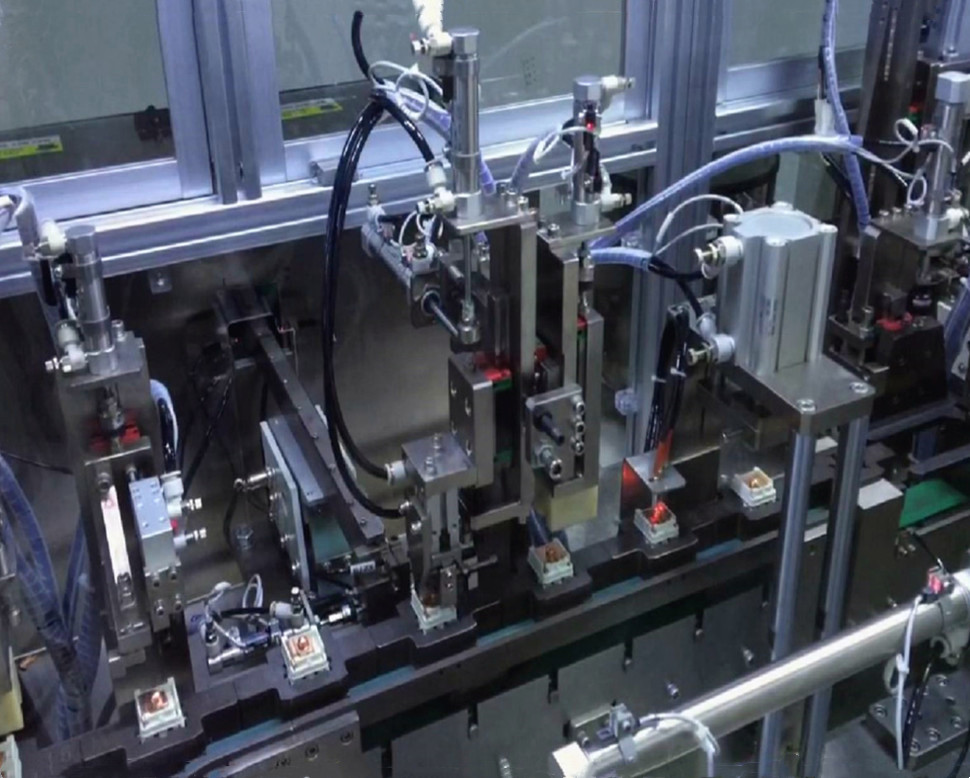

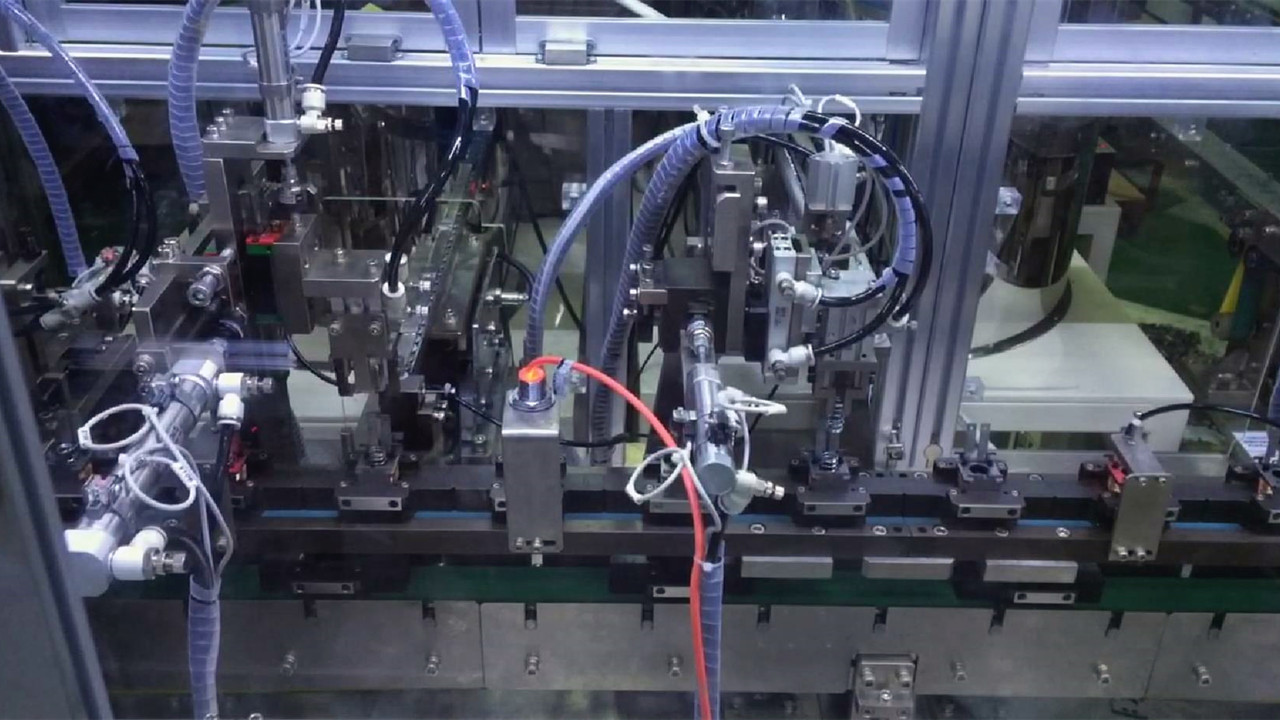

Relay automatic assembly product line:

1.PLC control system.

2.Fully automatic feeding and assembling.

3.Touch screen, simple operation and safety.
4. Automatic vibration feeding spindle winding machine, integrated soldering and testing machine(including Flux, Pin bending, Resistance testing, NG rejection, palletizing)

5. The spindle speed can be up to 18，000RPM.The cycle time of typical coil can be controlled within 28 seconds,

6.Liquid level in the solder bath can be tested by the sensor in real time. If the solder surface is lower than the set height, tin will be automatically added.

7. A small solder bath which can more upwards and downwards may be added in the large solder batch.

8.Automatic alarming in case of abnormal shut down and reporting abnormal information.

Xiamen Boaote Automation Technology Co., Ltd. was established in 2011. It's a development, design, manufacturing, sales, service, technical training and talent customization as one of the high-tech automation equipment professional manufacturers. Provide automatic assembly testing and packaging integration equipment for hardware products, new energy electronics, medical devices, auto parts, motors and other industries. Focus on electronic and electrical industry non-standard automation equipment and automation equipment. Through 10 years of continuous development, the company's products stable and efficient application performance has been praised and trusted by many companies.

Hardware Lock; DC Contactor Products;  Relay Products; Automotive New Energy and Motor Products; Bathroom and Hardware Products; Medical Equipment.

Q1: Are you a trading company or a manufacturer?

A:  We are a high-tech manufacturer devoted ourselves to automation industry for 12+ years

Q2: Do you have an E-catalogue?

A: Yes. You can scan the QR code on the homepage of our official website and download the E-catalogue . Or leave your email. We will send it to you by email.

Q3: Do you have any successful customer example?

A: Sure. Firstly, we need to get your product samples and product drawings. After analyzing the products, we will give a quotation.

Q4: Could you please give me a quotation?

A: Sure. Firstly, we need to get your product samples and product drawings. After analyzing the products, we will give a quotation.

Q5: How long is your delivery time?

A: Normally in 65 days.

1、Warranty: 1 year from date of shipment. If any damage during the period caused by the seller, the seller shall then offer free maintenance on site and free component replacement (Exclusive of quick-wear parts).

2、The Seller offer life-long maintenance service, only labor cost will be needed if beyond the warranty period. If any damage parts needed component replacement and the Seller is not to blame, the Seller has the right to ask for material cost for  replacement  component.

3、The Seller will respond to any defects claims within 4 hours by telephone, email, and fax. For maintenance service in Fujian province within 36 hours, outside of Fujian province within 72 hours. For components replacement, the actual time can be  negotiated additionally.

4、The Seller provide free training of operating personnel.

5、The Seller will also provide relevant technical information, including operating instructions & quick wear parts drawings.

6、The following situations are not included within the warranty period:

a. Quick wear parts confirmed by both sides;

b. Machine damage caused by natural disasters for example earthquake, fire, thunderstroke, and improper operation.

Can be designed and customized for customers, to a greater extent to meet the technical needs of different products.

Our company has obtained many patents and inventions.
