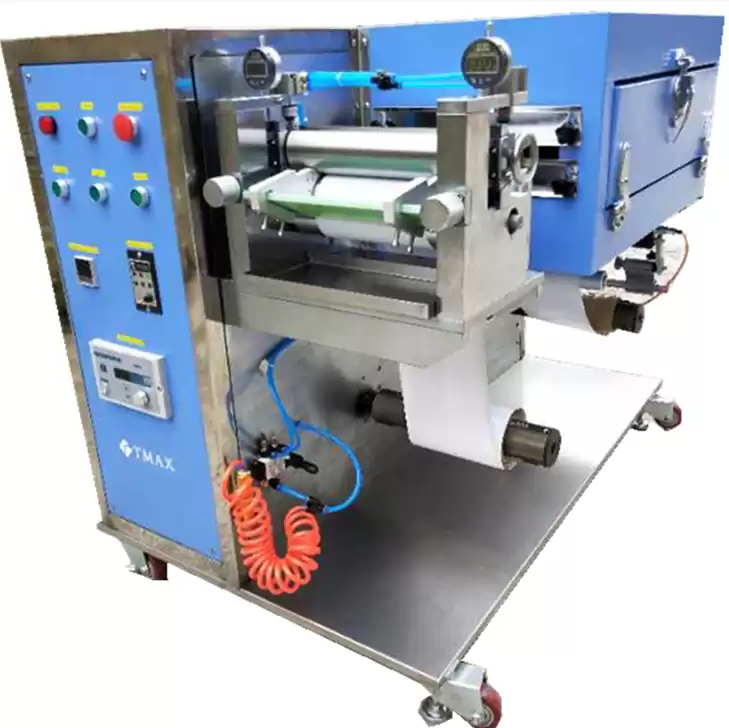

Automatic Roll To Roll Continuous Film Coating Machine With Drying Oven For Battery Electrodes
This experimental continuous coater is specially designed for the continuous coating process of positive and negative electrode of lithium-ion batteries, and is suitable for lithium battery test line and small batch production. Get expert advice about Roll to Roll Coater here.
Main Structure
1. Coating drying control system, including: electric drive control system, PID drying temperature control system;
2. 1 set of circulating fan regulator, 1 set of air inlet regulator, 1 set of baffle and other accessories;
3. One set of coating device: including one coating steel roll and one comma knife;
4. One set of drying device: the length of drying box is 0.8m;
5. One set of winding device:
Specifications
|
Suitable film/foil thickness
|
aluminum foil 11 ~ 30um; copper foil 8 ~ 30um;
|
|
Maximum coating width
|
280mm
|
|
Coating speed
|
0.5~1.8m/min
|
|
Suitable for slurry viscosity
|
1500~15000 Cps
|
|
Coating thickness accuracy
|
≤±3μm
|
|
Coating weight accuracy
|
±3%
|
|
Coating alignment error on the front and back sides
|
<±0.5mm Average length error ≤±0.5mm
|
|
Oven temperature control accuracy
|
< ± 3℃, drying oven temperature independent PID adjustable
|
|
Oven length
|
0.8m, hot air impact drying, recycling hot air utilization more energy saving(the oven length can be customized)
|
|
Power
|
4.5 (KW)
|
|
Coating method
|
continuous coating
|
|
Can move
|
with 4 universal wheels
|
|
The weight
|
450KG
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
