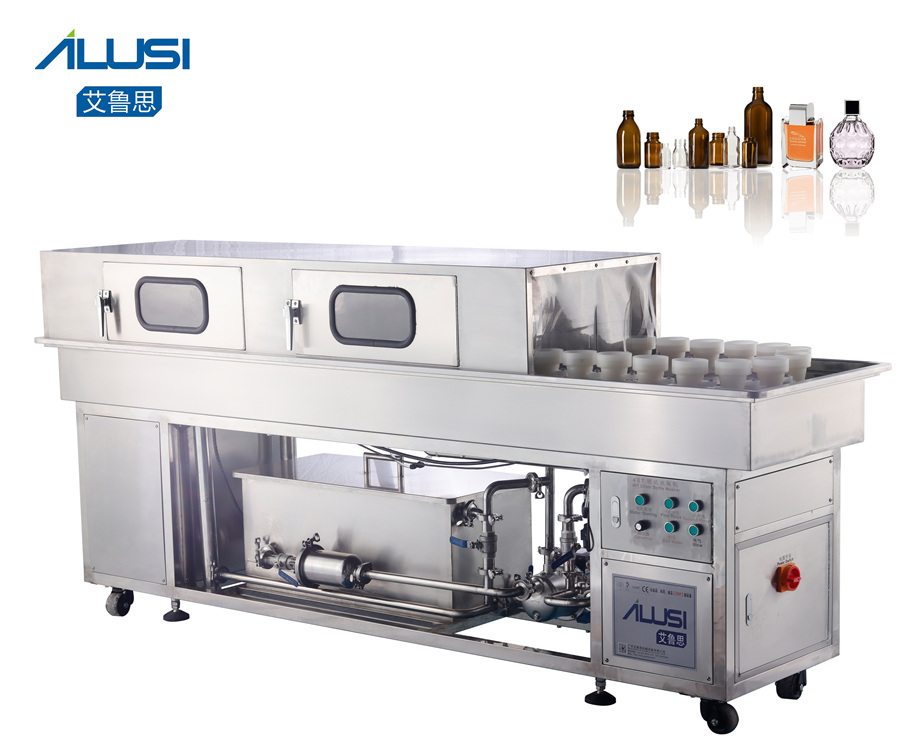

Rotary Bottle Washing Machine mainly used for washing a cylindrical bottle, barrel type and various bottles, and filling machine, capping machine, conveyor and packaging production lines, widely applicable to the cosmetic industry,winery, Beverage factory, brewery, pharmaceutical factory and other enterprises.
Main Features:
1. Automatic Bottle Washing Machine upper and lower bottles on the front are used for temporary positioning and washing, saving effort,
2. Use the pressure pump to pressurize and wash the bottle according to the customer's needs, with low water consumption,
3. Simple structure and convenient maintenance,
4. Labor-saving and labor-saving, high production efficiency, suitable for wide bottle types (replace different bottle holders can be used for wide-mouth bottles and fine-mouth bottles).
5. Recommended matching products:
Oven
*Every machine we build is rigorously tested for optimal performance and incorporates changeable baskets, when you inquiry us, please kiindly let us the bottle's size, when you purchase this machine, please kindly send us the bottles for customized mold size ;)
|
1
|
Washing heads
|
48 heads
one bottle one mold
|
|
2
|
Dimension
|
2700*670*1180mm
|
|
3
|
Production capacity
|
2000~3000 bottles/hour
|
|
4
|
Water consumption
|
1.5m³/h
|
|
5
|
Power
|
1.25KW,220V,frequency control
|
|
6
|
Working pressure
|
0.2~0.4Mpa
|
|
7
|
Applicative bottle height
|
50-150mm
|
|
8
|
Applicative bottle diameter
|
25-80mm
|
|
9
|
Weight
|
330Kg
|
Details:

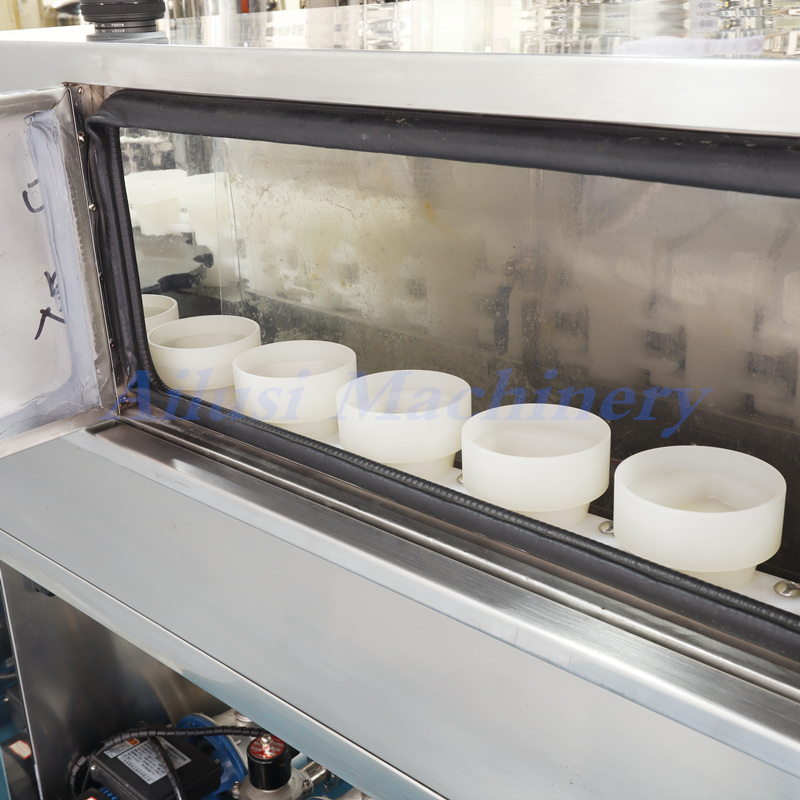

The bottles are manual loaded and unload on rotating platform and are cleaned in series of operations. The bottles are hold in bottle holders that are specially designed to accommodate bottles with varying neck diameter and bottle diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings and sequence of various washing media to suit specific requirement.
Package & Delivery:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
