Main Features:

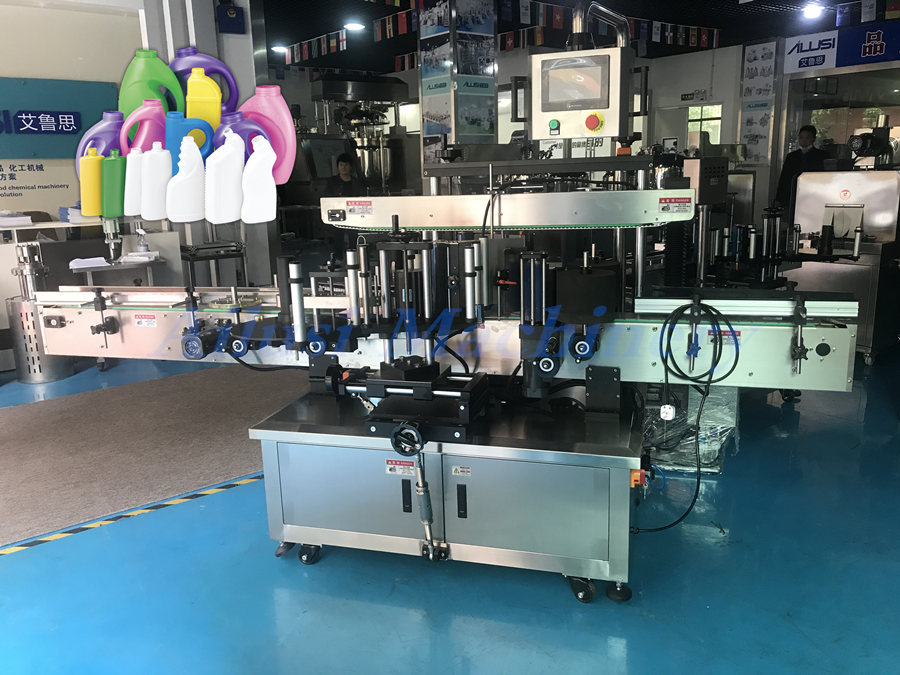

1. Flat Bottle Labeling Machine adopt mature PLC control system technology, make the whole machine stable and high-speed,
2. This type of Automatic Labeling Machine can be suitable for square /round/oval flat bottles at the same time,
3. Use PLC touch screen control system, make operation simple, practical and efficient,

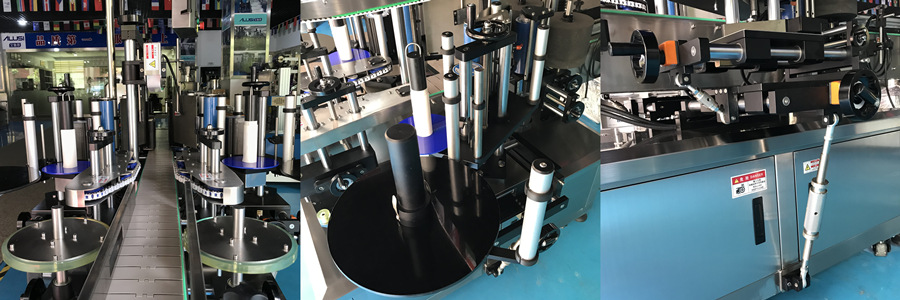

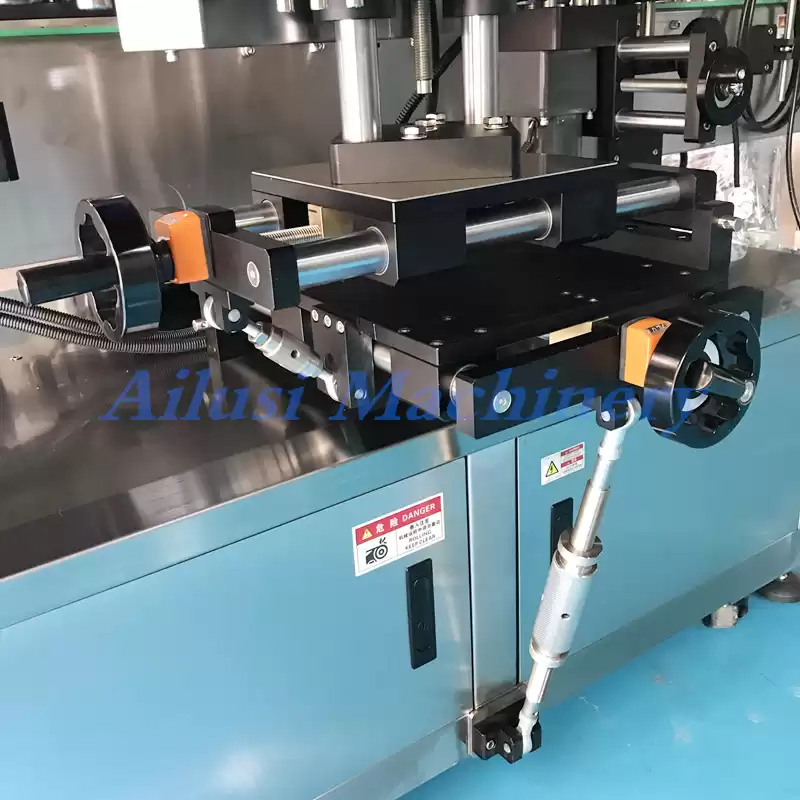

4. Screw adjust the suppression mechanism, high accuracy,
5. Synchronization chain mechanism, to ensure smooth and precise calibration,
6. Transparent sticker labeling without foam, adhesive sticker labeling without wrinkle,
7. Widely used and mutil-function with high flexibility,
8. Date/code printer is for optional, up to 3 lines,
9. Tranparent label sensor is for optional,
10. Can be customized according to your requirement,
11. Other match equipment: Automatic Filling Machine, Automatic Capping Machine.
* Powerful function, one machine can realize 4 products labeling(square, round, flat and dysmorphic bottle)
Process:
put the bottle(can be linked with the production line)—>product orientation(automatically)—>product delivery(automatically)—>labeling(automatically)—>collect the labeled bottles.
|
No
|
Item
|
Description
|
|
1
|
Label roll inner diameter
|
φ76mm(customized)
|
|
2
|
Max Label roll outer diameter
|
φ370mm(customized)
|
|
3
|
Label Height
|
10-190mm(optional)
|
|
4
|
Labeling speed
|
36/min(adjustable)
|
|
5
|
Material
|
Stainless steel 316&304
|
|
6
|
Automatic Grade
|
Automatic
|
|
7
|
Driven type
|
Electric
|
|
8
|
Power Supply
|
380V,50/60HZ,3000W
|
Advantage:
* The Front and Back sides bottle Labeling Machine, provided with such mechanism as bottle Piloting, bottle dispensing and labeling, and counting etc,is most suitable for use of small amount of various products or for operation of single machine and single person. The labeling position, height and angle can be adjusted. It can be connected by conveying belt with the production line.
* With failure warning function, auto-counter technology, power saving function(the equipment will automatic turn to power saving holding state while no production in setting time),the production number setting hint function and parameters setting protection function(parameters have authority management)
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
