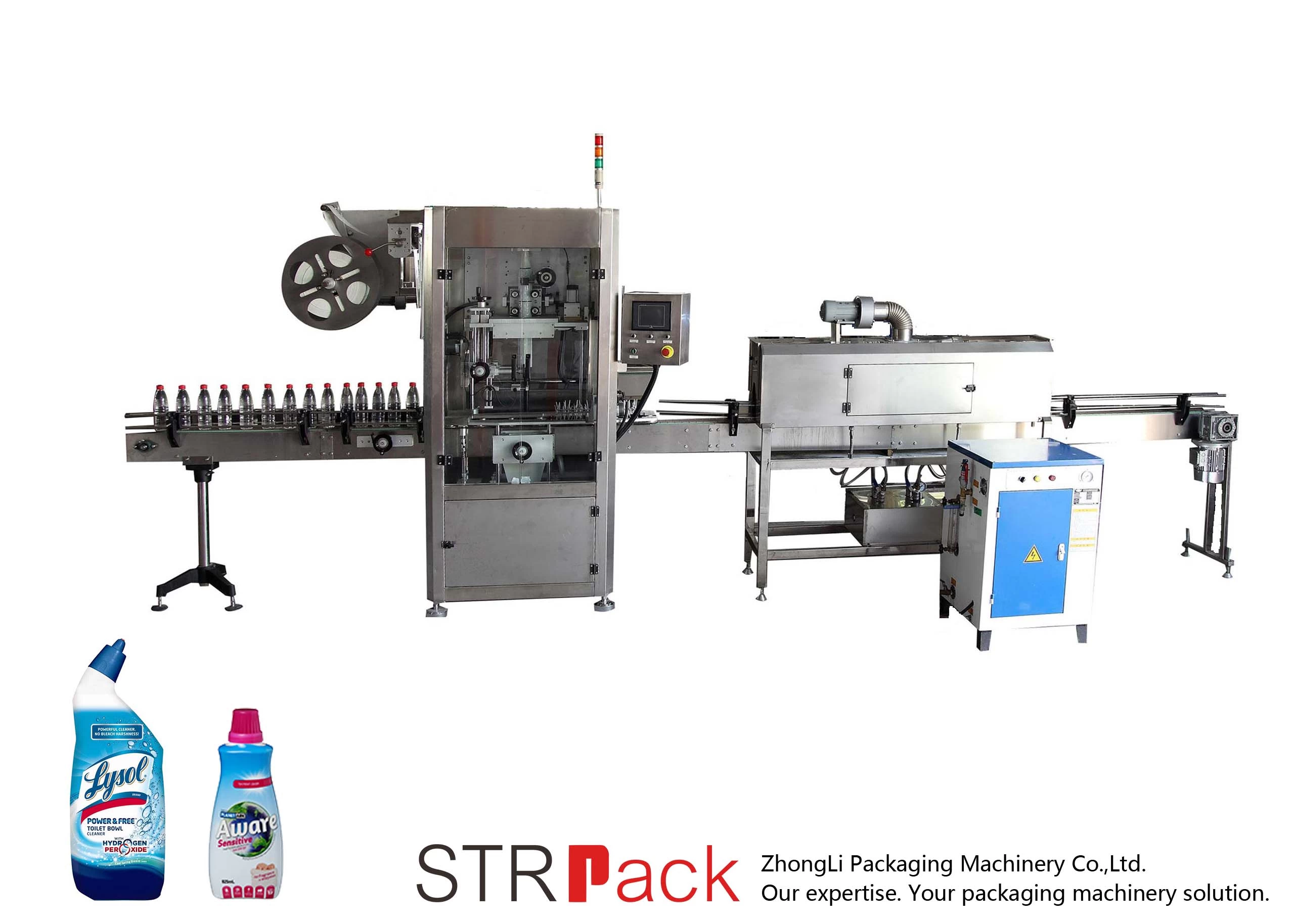

Automatic Shrink Sleeve Labeling Machine

This machine adopts international advanced technology, cover the circle label on the bottles. And then hot shrinking to fix on the position which bottle body designed.



  • Warranty:2 Years
  • CertificationISO CE
  • Brand NameSTRPACK

Automatic Shrink Sleeve Labeling Machine


Brief Introduction:

This machine adopts international advanced technology, cover the circle label on the bottles. And then hot shrinking to fix on the position which bottle body designed. It is controlled by micro-computer, automatic detection and position.



Features:

1. Highly effective and stable production speed: 100-bottles/ minute (standard bottle).
2.  Suitable bottle shapes: round bottle, square bottle, elliptic bottle, top of bottle and body of bottle.
3. Applied to different kinds of plastic bottles, glass bottles, PVC, PET, PS, steel tins, etc for food, beverage, cleaning, medicine and liquor.
4. A unique synchronous cutting base does not require changing within the range of specification. If the specification needs changing, it can be done within two minutes.
5. A unique reciprocating cutting tool of smooth movement and prolonged use life.
6. Simplified central post positioning, easy change for specification and easy operation.


Main Parameter:

No.

Model

STS-100

1

Speed

60100bottle/minute

2

Label Length

25mm-280mm

3

Label Thickness

0.035mm-0.13mm

4

Label Material

PVC.PET.OPS

5

Bottle/Can Height

15mm-380mm

6

Bottle/Can Diameter

28mm-125mm
special design for extra-big bottle)

7

Bottle/Can Shape

round, square, elliptic, rectangular

8

Power

2KW

9

Shrink Power

15kw

10

Coding Device

Ribbon Coder

11

Voltage

380V/220V50/60Hz

12

Weight

750KG

13

Dimension

3000*1300*2000MM

Automatic Shrink Sleeve Labeling Machine




After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
