Automatic Slitting Machine for Battery Pack Resistance and Voltage Testing and Sortting
Product Specification
It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
10 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 ,26700 cells
Sort by cell's voltage and impedance up to up to 10 groups
Automatic sorting control
Fast sorting speed (3600 batteries/hr)
Easy to refill cells during the process
wheels design, easy to move the machine to any operating place
|
Model
|
TOB-FX-10
|
|
Voltage supply
|
220V/50HZ(or can be customized)
|
|
Power
|
1.6kw
|
|
Air Pressure
|
0.4-0.8Mpa
|
|
Display screen
|
7.5 inch touch screen, 3-axis PLC programmer
|
|
Suitable for
|
18650 battery
|
|
Receiving channel
|
11 channel,10 sorting and matching channel,1 unqualified channel
|
|
Internal resistance setting
|
0mΩ-999.9 mΩ
|
|
Voltage setting
|
0-6V
|
|
Weight
|
<200KG
|
|
Code sweeping function
|
No, can be customized
|
|
Production efficiency
|
Without code sweeping, about 5000pcs/h
With code sweeping, about 3000pcs/h
|
|
Feeding
|
By hopper, 500pcs cells one time
|
|
External connection
|
Customizable automatic connection padding machine
|
|
Tester
|
Standard tester: HOPETECH HK3560
High speed tester
Voltage accuracy 0.00005V
Internal resistance precision 0.01 mΩ
|
|
Motion device
|
Step shifting using closed-loop stepper motor, and the positioning is accurate.
The synchronous belt conveys the cell to prevent the cell surface damaged
|
|
Advantage
|
u Automatic collection the production quantity to show current production efficiency
u Test data can be stored in U disk
u Customizable scan code and database data docking
u Optional cell dynamic tester, Practical embodiment the quality and load performance of cell
u The equipment debugging is simple, easy to learn and easy to understand, with fault alarm
|
|
Package size
|
L1650*W1250*H1690mm
|
|
Weight
|
About 350kg
|

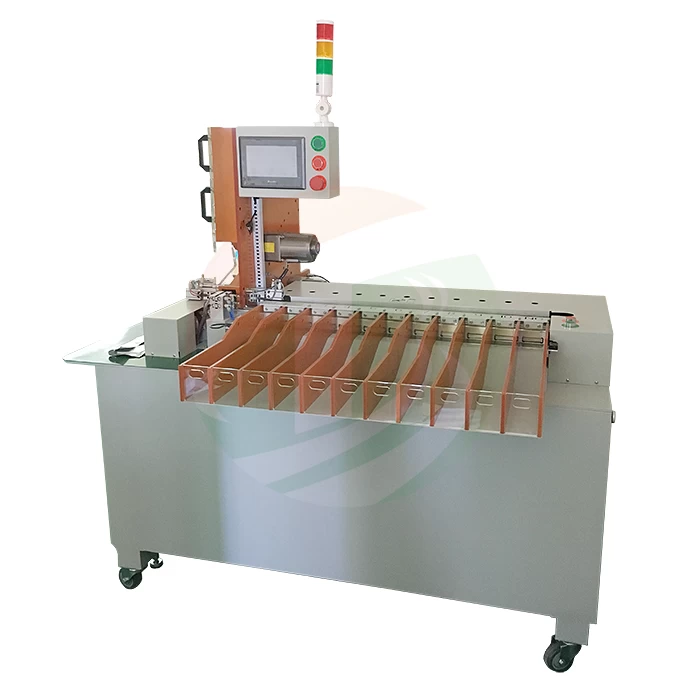

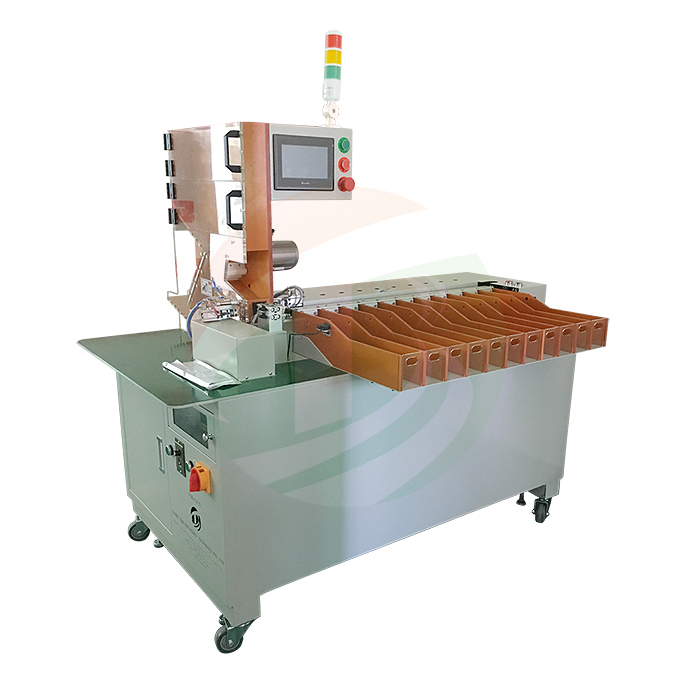

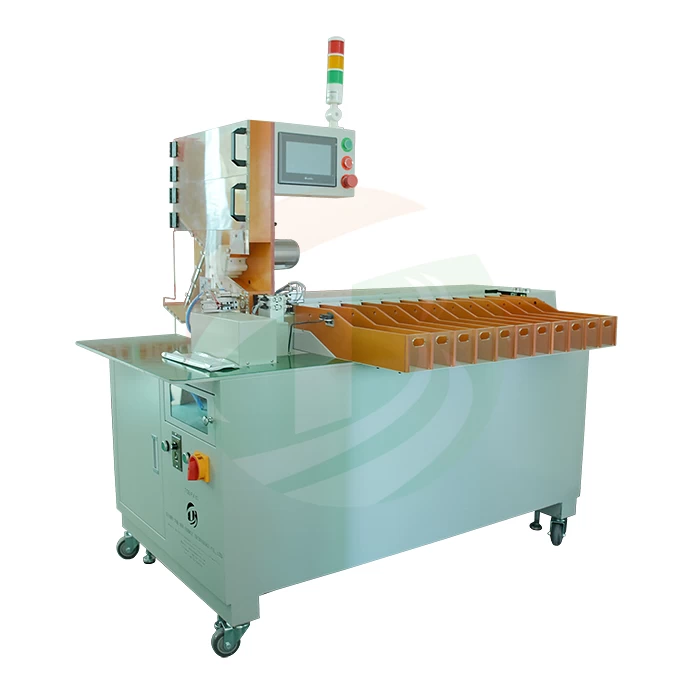

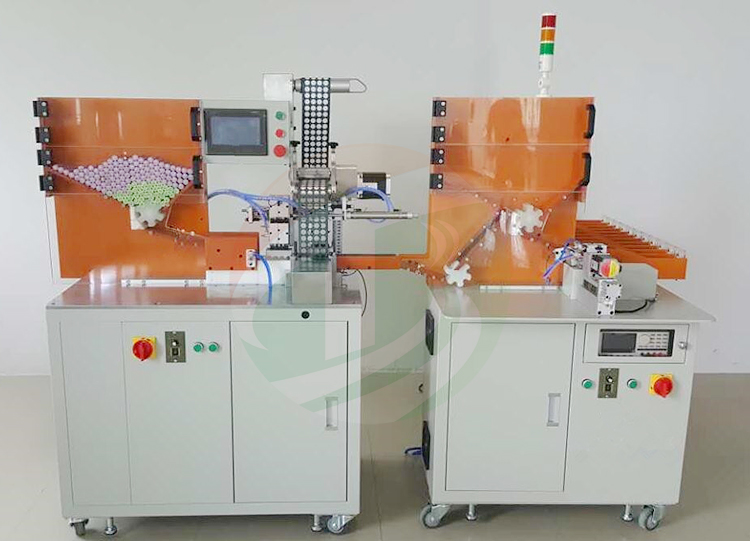

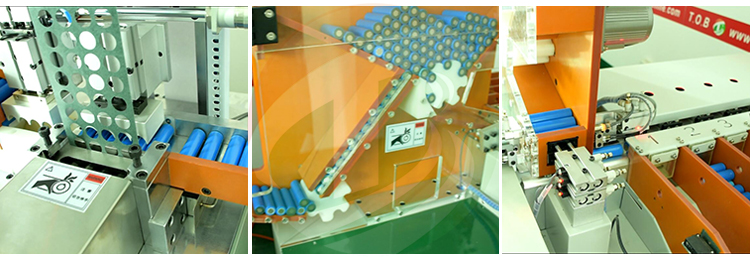

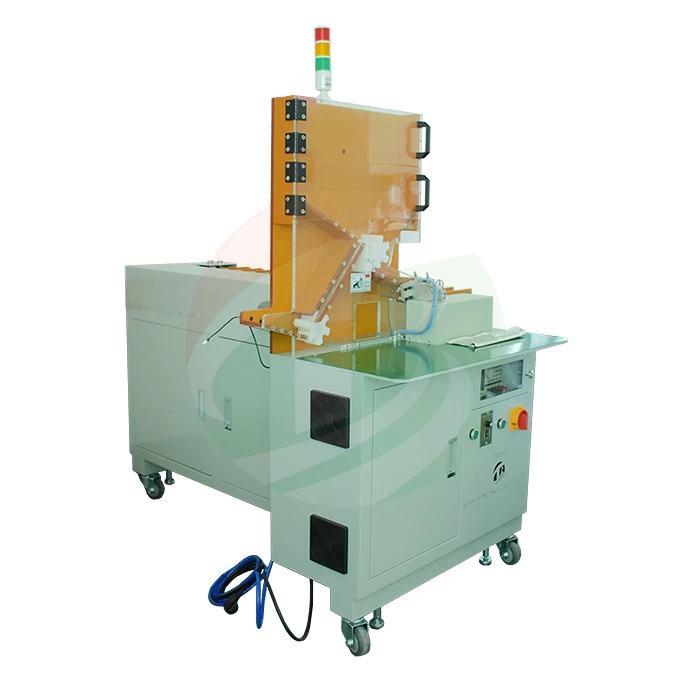

Product Image
Product Packing
