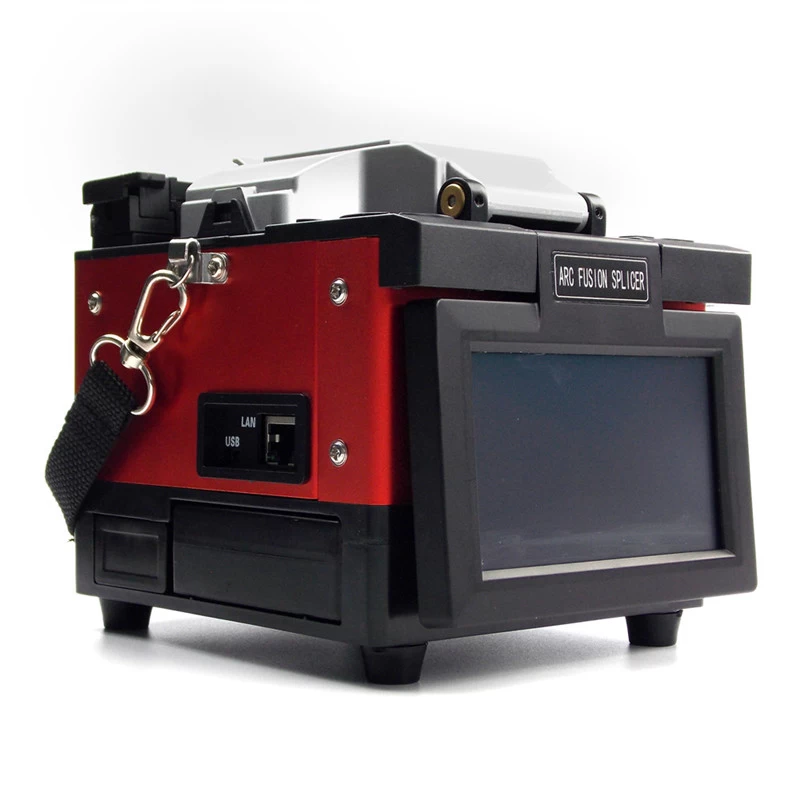

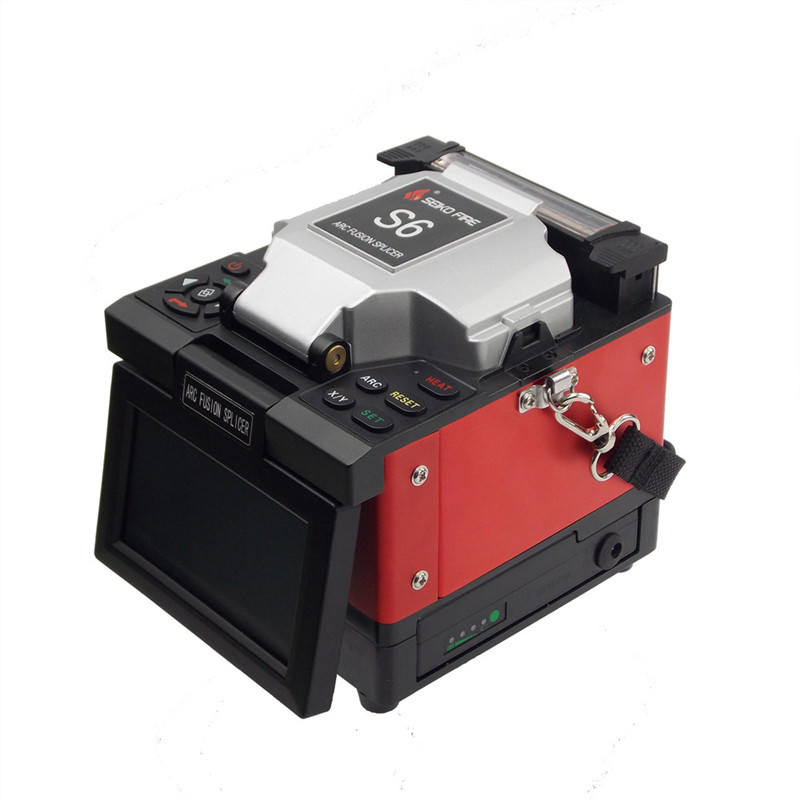

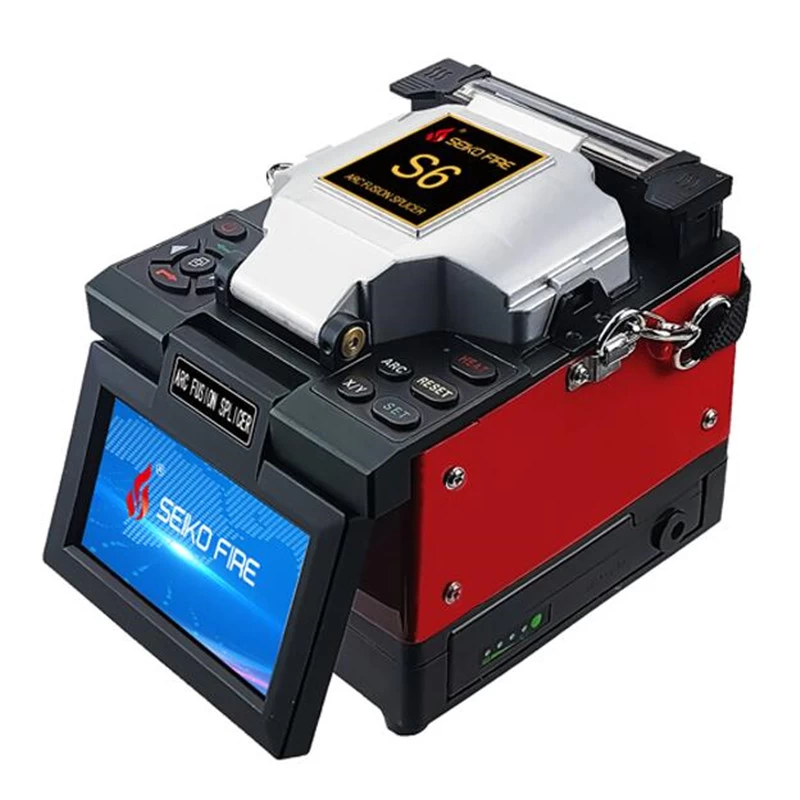

Automatic Smart Optical Fiber Fusion Splicer S6

Fiber count

Single

Applicable fiber

SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), others (like G.657)

Splicing loss

0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)

Return loss

>60dB

Operate mode

Manual, Auto

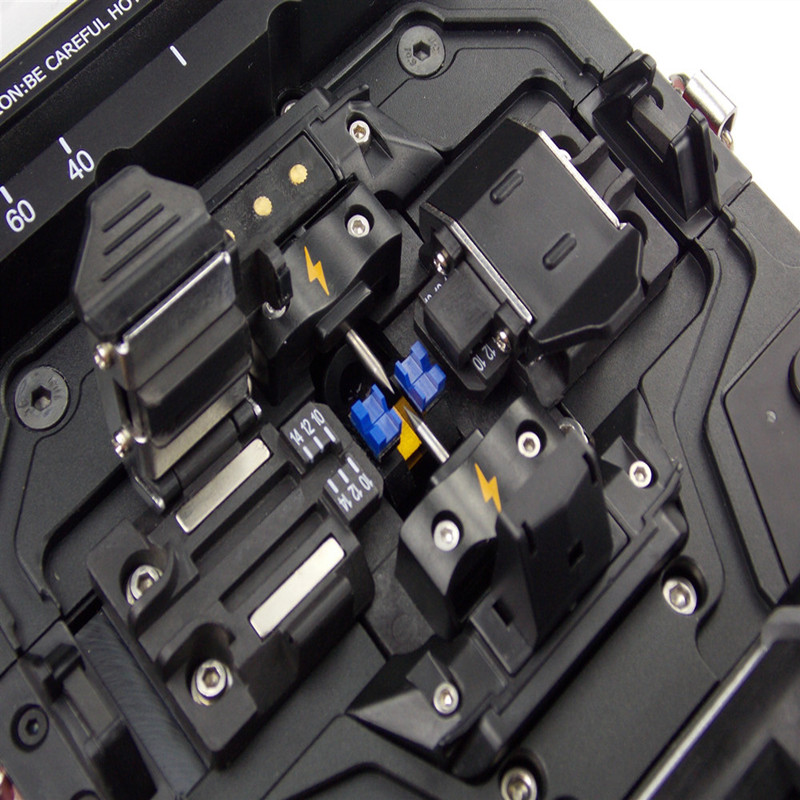

Fiber alignment

Core to core alignment

Splicing time

Typical 6s

Heating time

Typical 18s

Heat shrinkable tube

60mm, 40mm

Fiber cleaved length

8-16mm

Fiber view magnification

350X (X or Y view), 150X (X and Y view)

Display

4.3-inch touch-screen LCD

Tension test

2N

Battery capacity

5200mAh removable inner Li-battery, 280 cycles splicing and heating after one-fully charged.

Electrode life

Around 5000 ARC discharges

Interface

USB for data download and software update

Night construction

Built-inhigh-power dual-LED lights

Power supply

Adaptor, input: AC100-240V, output: DC13.5V/4.8A.

Operation condition

Temperature: -15-50℃, humidity: <95%RH (no condensation)

Working altitude: 0-5000m. Resist max. wind speed: ≤15m/s

Weight

1.95 kg (including battery)

Dimension

130mm(L)×154mm(W)×132mm(H)

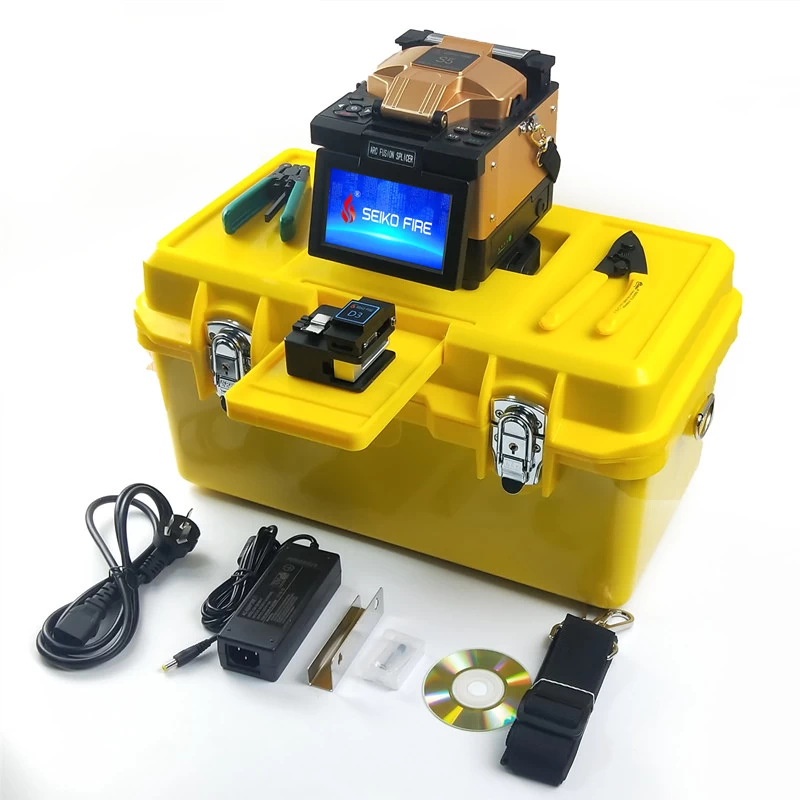

No

Items

Qty

1

Fusion splicer

1

2

Fiber cleaver

1

3

Fiber stripper

1

4

Drop cable stripper

1

5

AC adaptor

1

6

P.S cord

1

7

Spare electrodes

1 pair

8

Cooling tray

1

9

Manual (CD)

1

10

Carrying case

1

11

Calibration certificate

1
