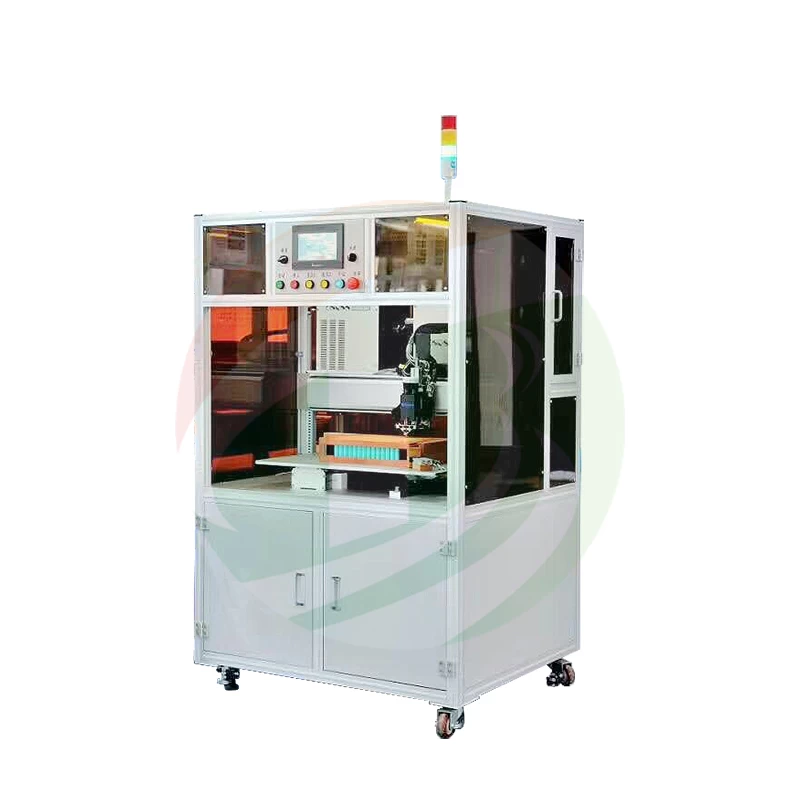

Automatic Spot Welding 18650 Cells Single Side Spot Welding Machine
SPECIFICATIONS
This machine is used for18650,26650,32650 cylinder battery pack automatic spot welding.
Features :
1.Support break point start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
|
Model
|
TOB-DH-10000
|
|
X-axis travel
|
380mm
|
|
Y-axis travel
|
540mm
|
|
Spot welding speed
|
0.5s / point;1600pcs / h
|
|
Maximum speed of motor drive
|
1000mm/s
|
|
The maximum number of batteries loaded
|
300pcs (standard 18650 lithium battery)
|
|
Number of groups for storing files
|
99 groups
|
|
Operating system
|
Embedded system + man-machine screen
|
|
Transmission
|
Stepper + imported precision linear guide (optional servo + screw)
|
|
Power supply
|
Single-phase 220V ± 10% / 50Hz ± 10%
|
|
Power
|
<500w
|
|
Air supply
|
0.3 ~ 0.4Mpa
|
|
Weight
|
200KG
|
|
Dimensions
|
About 1000mm*1000mm*1800mm
|

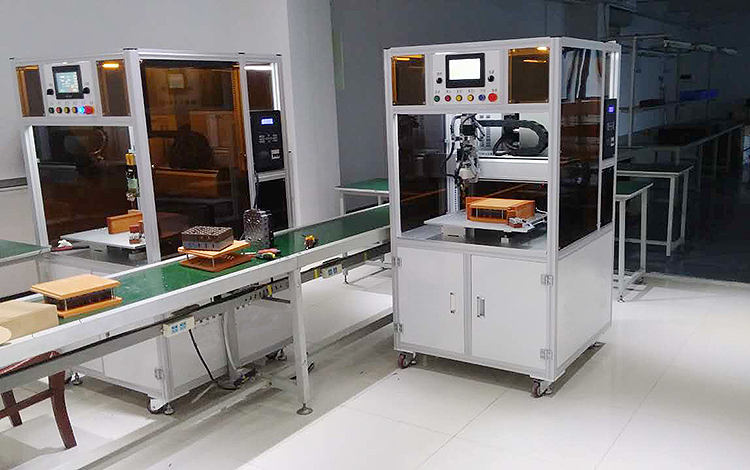

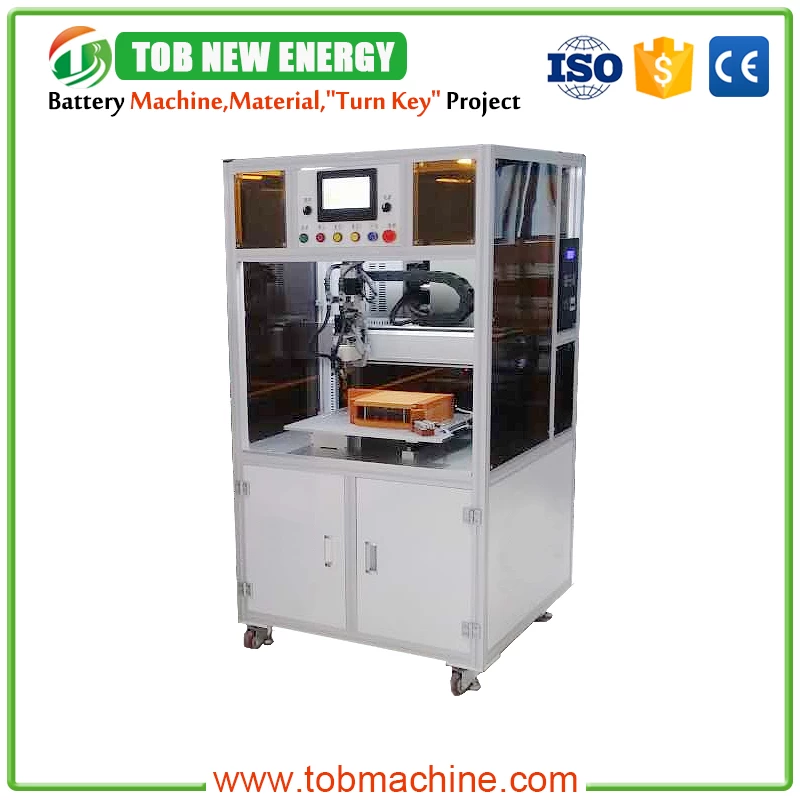

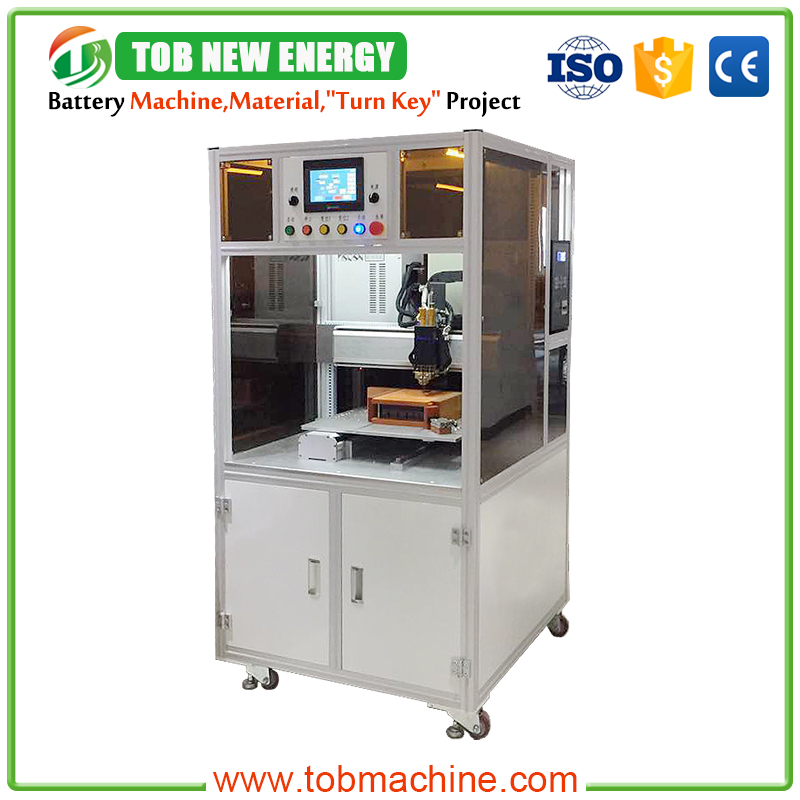

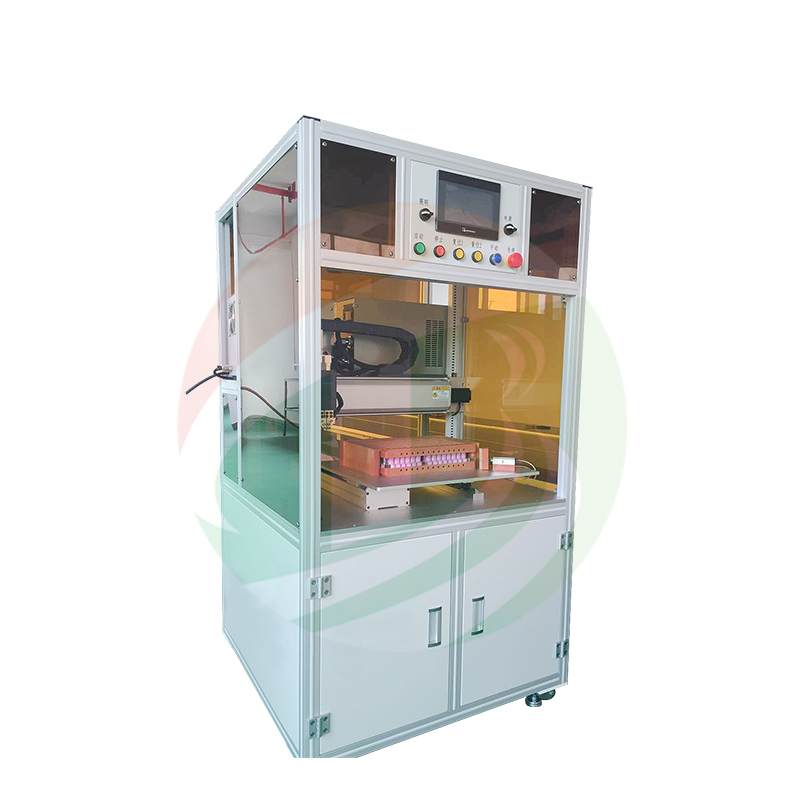

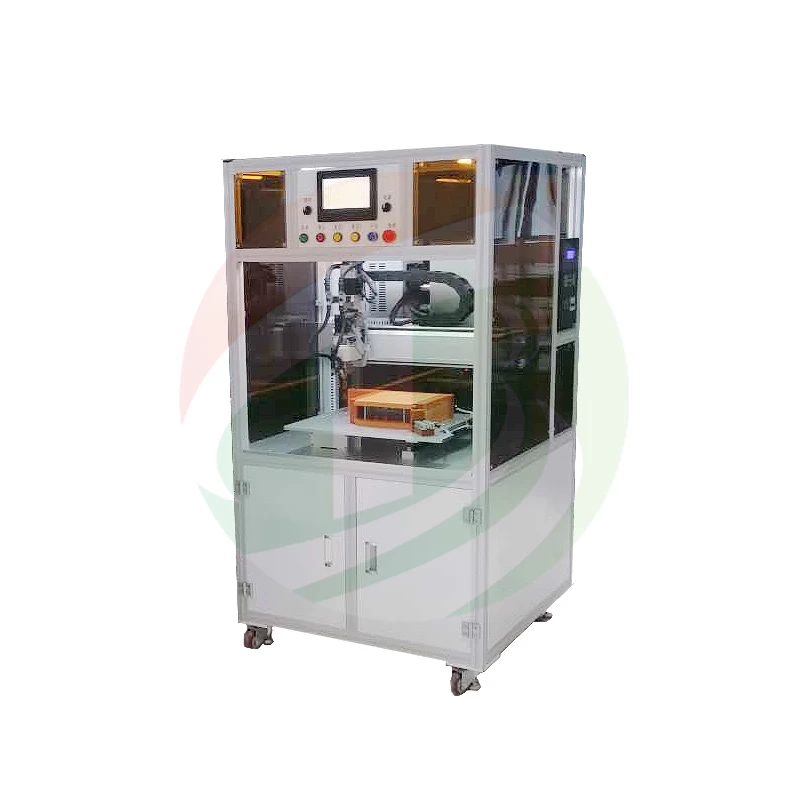

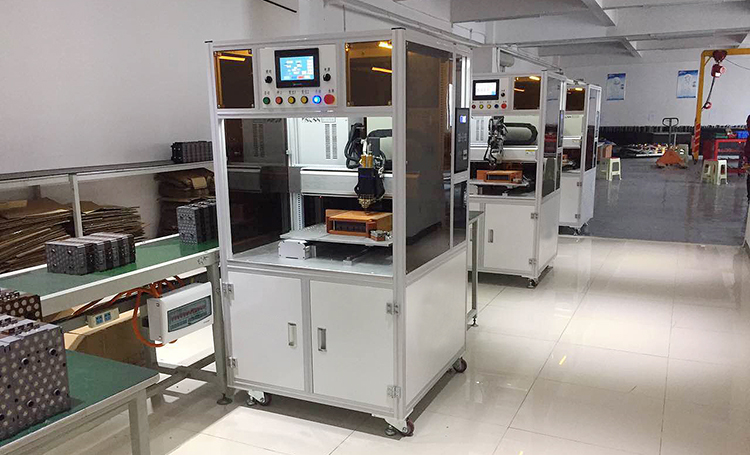

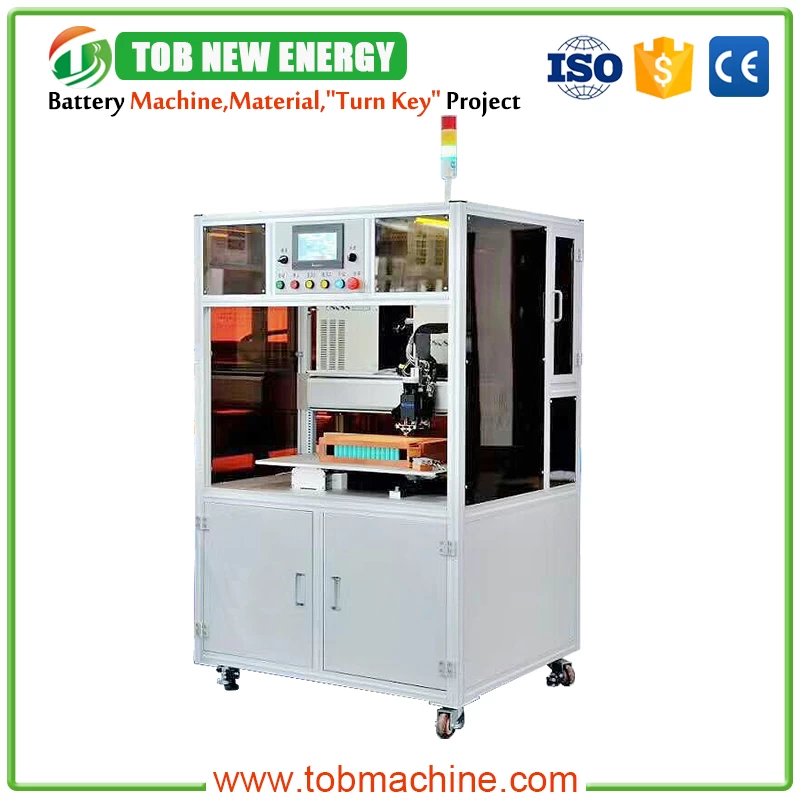

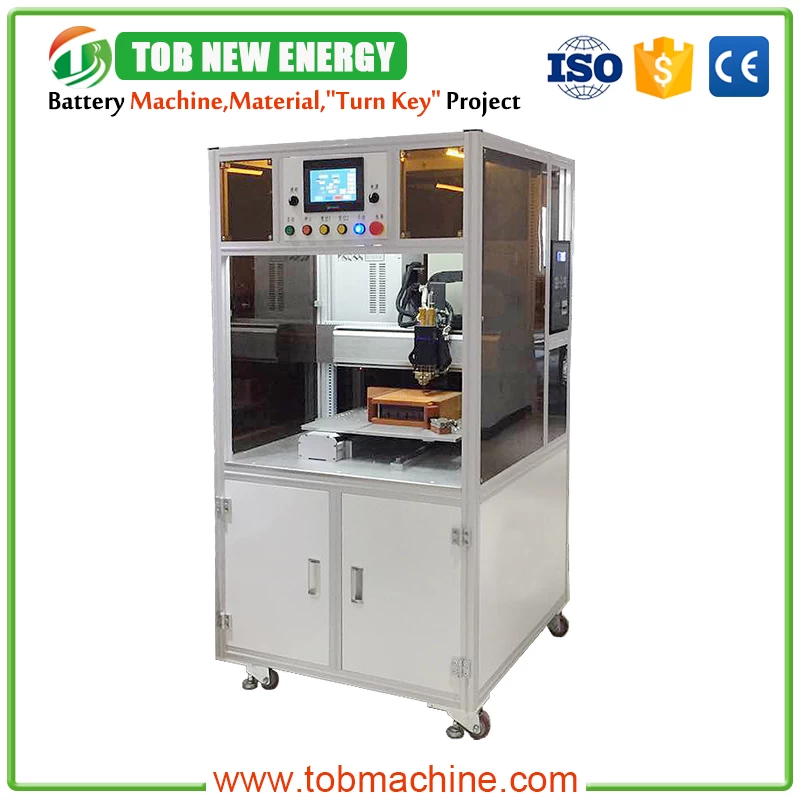

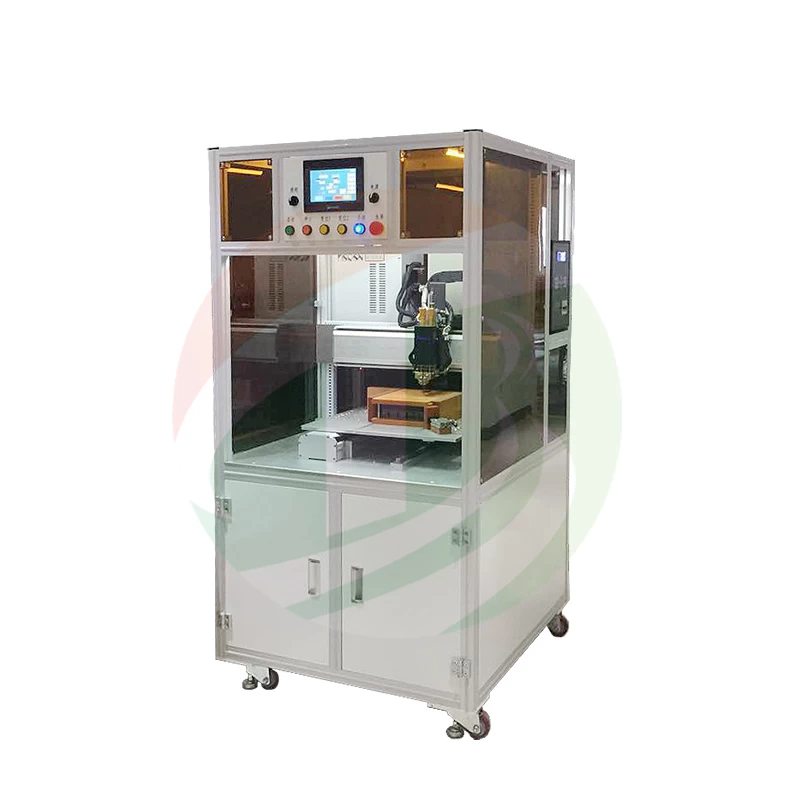

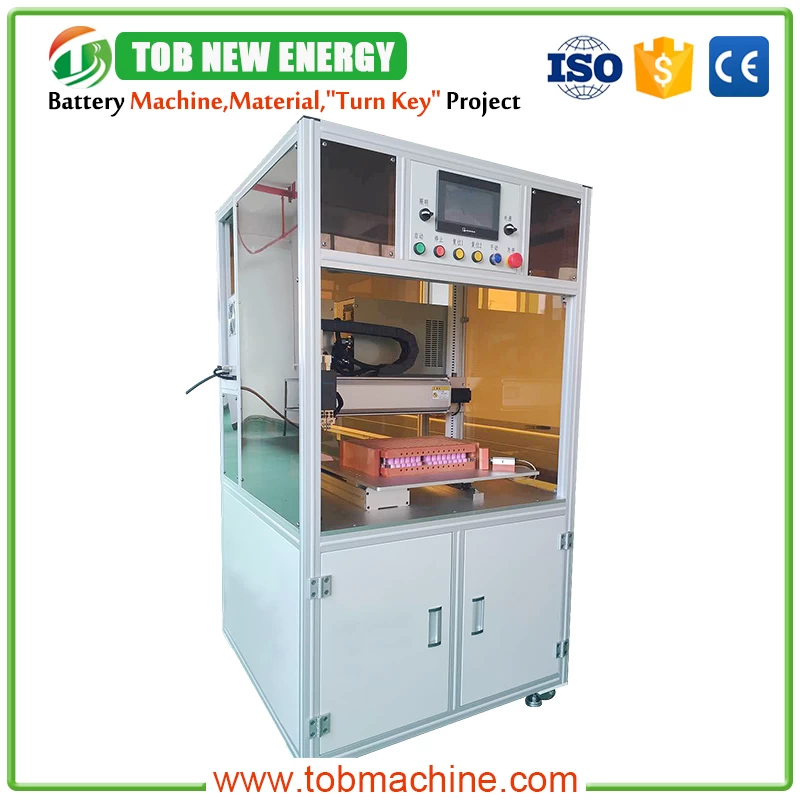

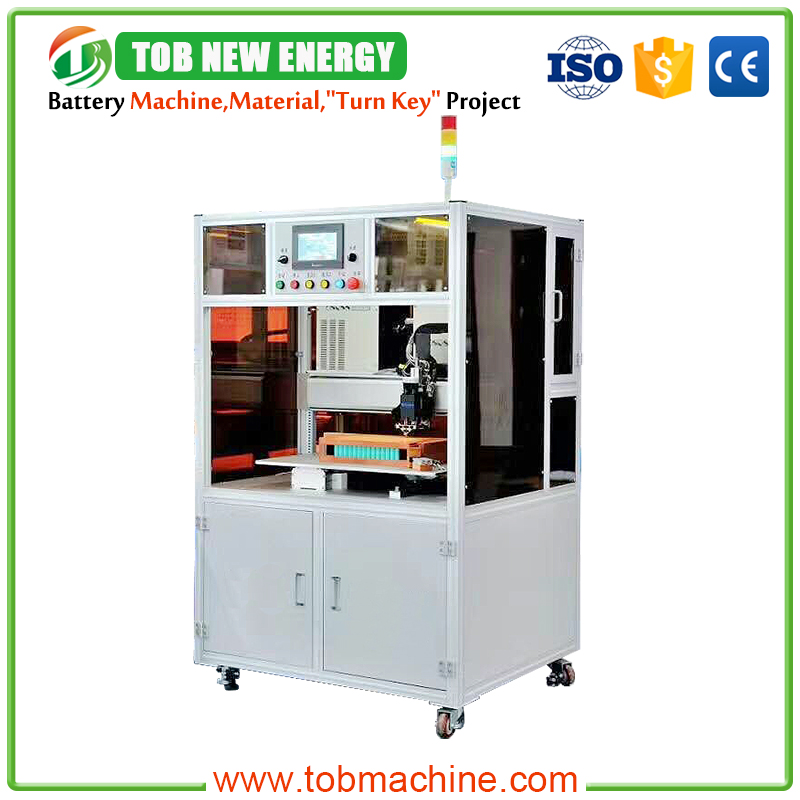

PRODUCT DISPLAY

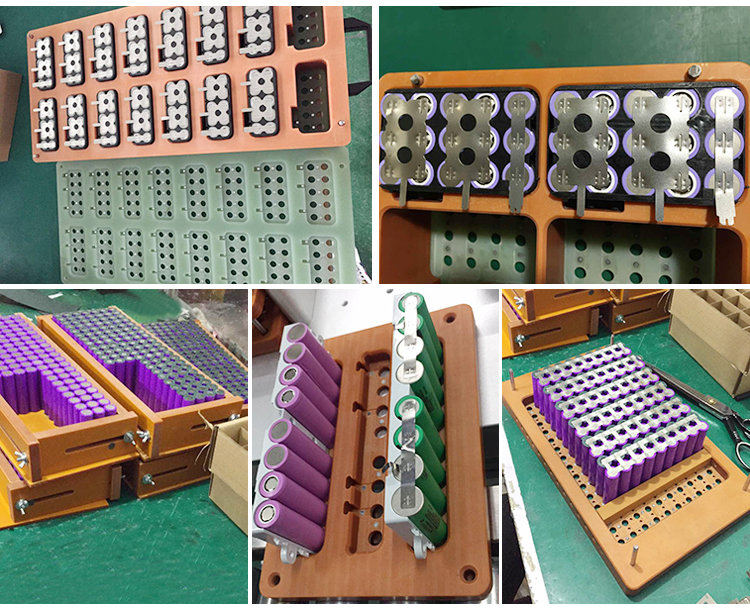

Welding Clamp Display
