Product Item

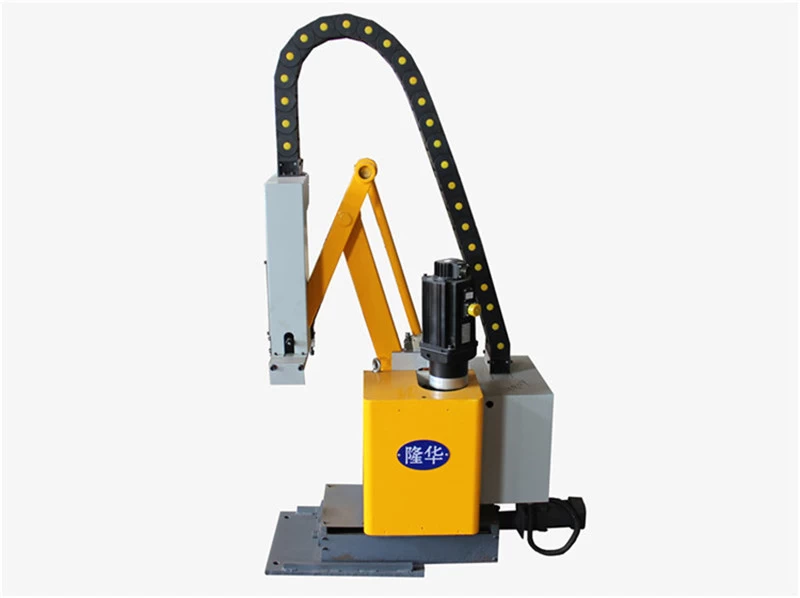

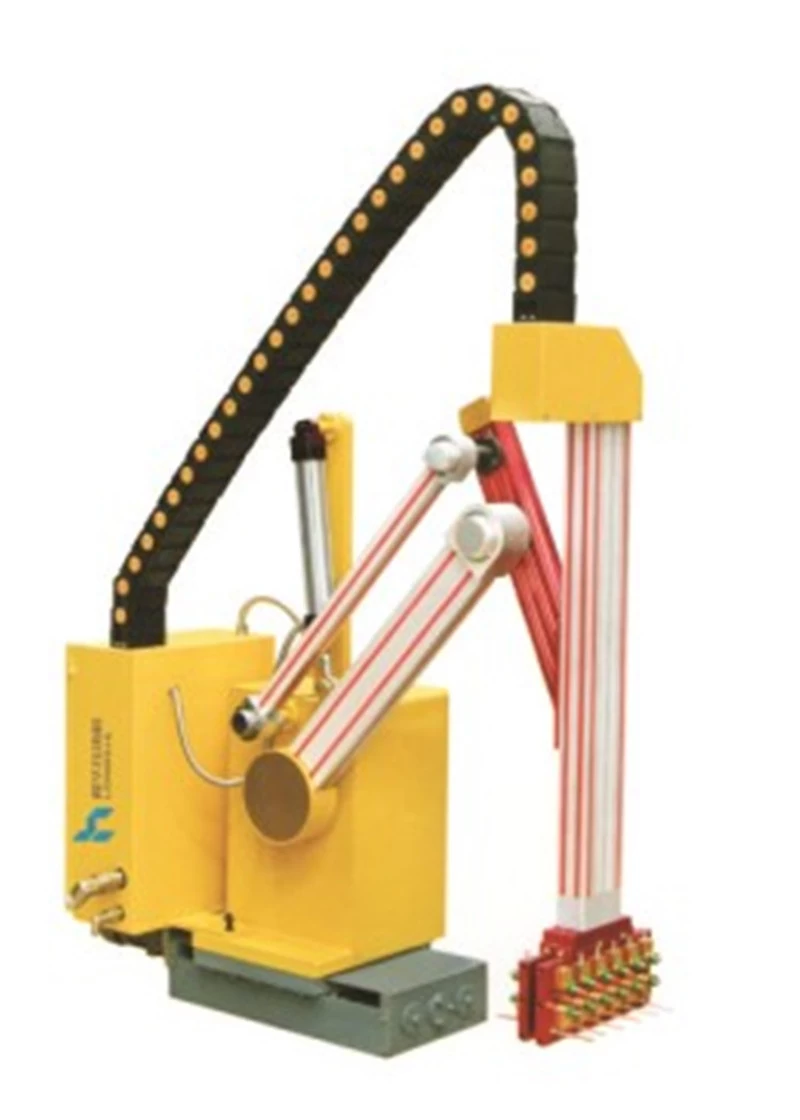

Automatic spraying machine is used for die casting machine
Product Description
Product Features
1.Connecting rod structure, high mechanical strength, good stability
2.Germany Siemens servo motor, worm gear and worm mechanism, high transmission efficiency, good stability
3.Motor drive is adopted for mold thickness adjustment, which is directly completed on the touch screen, convenient and quick.
4.Handheld man-machine interface, integrated with setting and operation, and with fault self-diagnosis function.
5.Independent atomizing nozzle is adopted to achieve excellent atomization effect. Each spray nozzle can be independently adjusted and the Angle of the nozzle can be adjusted.
6.With 100 sets of mold storage function.
Product Parameters
|
Model
|
LH-1#
|
LH-2#
|
LH-3#
|
LH-4#
|
|
Suitable for die casting machine
|
125T-200T
|
250T-400T
|
450T-550T
|
630T-900T
|
|
The number of nozzles allocated to nozzle group
|
16PCS
|
24PCS
|
28PCS
|
36PCS
|
|
Nozzle set size (width * thickness)
|
316mmx209mm
|
416mmx209mm
|
516mmx209mm
|
616mmx209mm
|
|
Range of vertical stroke
|
650mm
|
800mm
|
1100mm
|
1200mm
|
|
The base stroke
|
250mm
|
250mm
|
400mm
|
400mm
|
|
Lifting motor power
|
0.75KW
|
0.75KW
|
1.0KW
|
1.0KW
|
|
Air source inlet bore
|
PT11/4
|
PT11/4
|
PT11/4
|
PT11/4
|
|
Injection diameter of mold release agent
|
PT1/2
|
PT1/2
|
PT1/2
|
PT1/2
|
|
power capacity
|
380V/0.9KVA
|
380V/0.9KVA
|
380V/1.1KVA
|
380V/1.1KVA
|
|
Circulation rhythm
|
5 sec
|
5 sec
|
6 sec
|
7 sec
|
