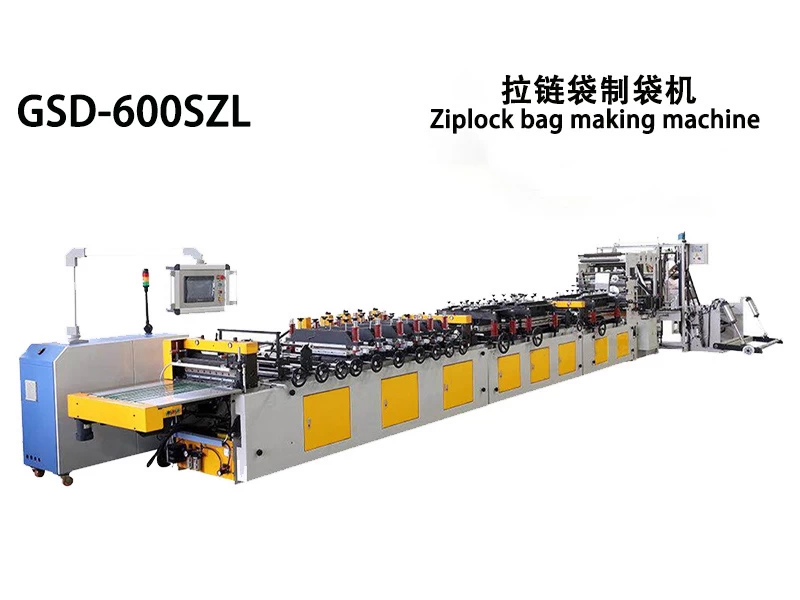

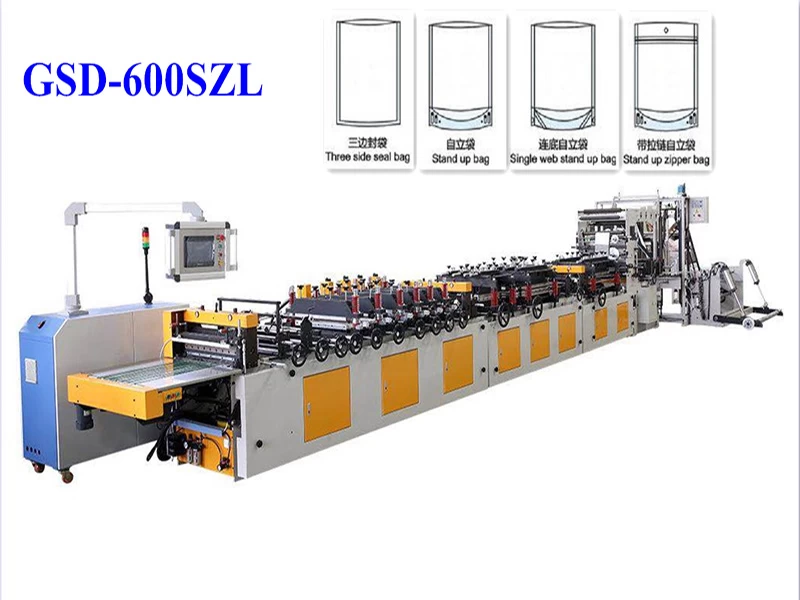

Bag Machine for Three-side-sealing & Stand-up bag, Rolling Stand-up Bag and Zip Lock Bag (Five Servo Motors)
Application:
GSD600-SZL stand-up and zip lock bag machine is widely used to produce three-side-sealing and stand-up bag, rolling and stand-up bag and zip lock bag for foods packaging, goods storage, parts loading and others. Characterized by five servo motors, the machine will run smoothly in high speed.
Bag parameters:

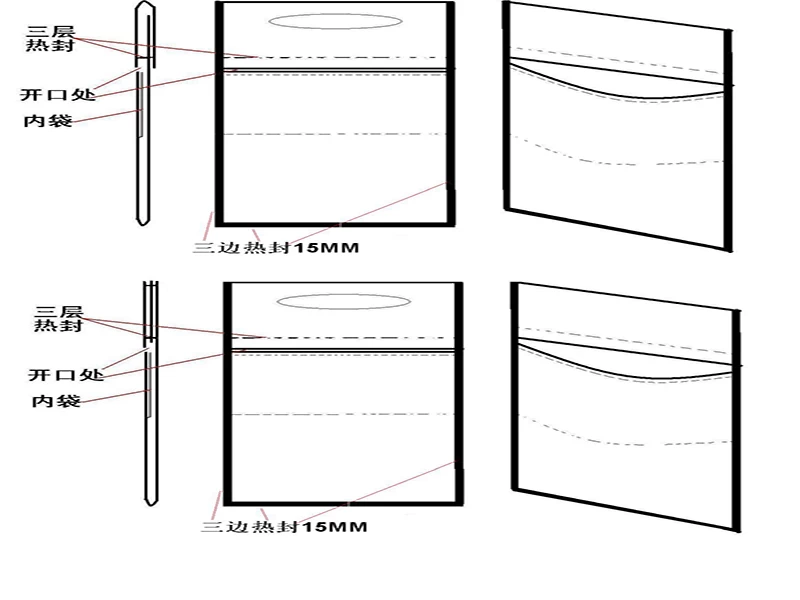

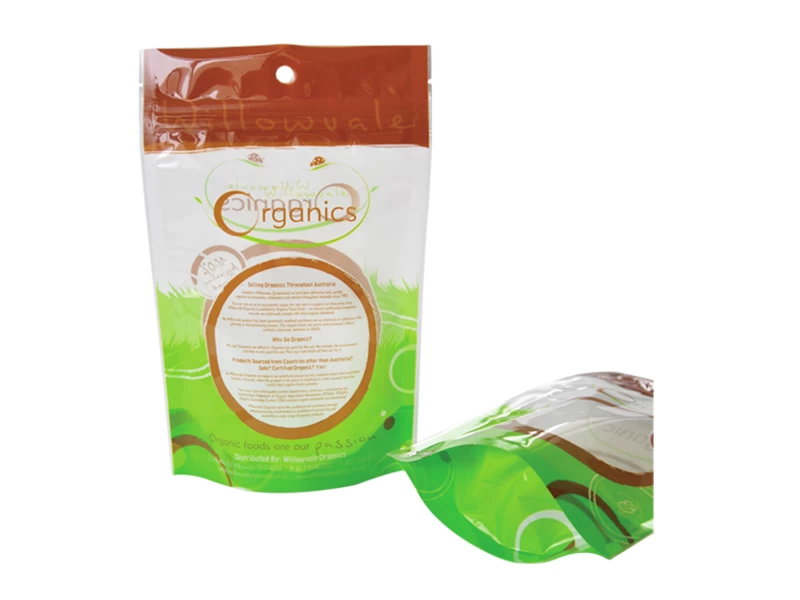

●Bag-making type: three-side-sealing bag, stand-up zip lock bag with forked side and stand-up zipper bag with square bottom
●Width and diameter of original film:
Lmax=1220mm
Dmax=800mm
Max bag-making width=600mm
●Bag-making length: 50-400mm (to make the secondary hot press smooth, keep max traction length within 400mm, and adopt multiple in-feed within 6 multiple material when traction length goes beyond 400mm)
●Bag-making width: 60-600mm
●Bag-making speed: 30-110 cuts/min (70 cuts/min for stand-up zipper bag) and machine speed is 150 cuts/min
●Plastic film used in machine: laminated film
Unwinding devices:
●Unwinding motor: cycloid reducer in power of 750w
●Unwinding frequency conversion motor: 750w
●Deviation correction for unwinding: automatic deviation correction in double lines
●Unwinding tension: automatically consistent tension, rotary encoder, magnetic powder brake and air shaft
Control devices:
●Automatic control system with consistent tension
●Temperature control: PC controls temperature in 24 lines
●Electrical control: Panasonic PLC control & touch screen
●Temperature control: precision of PC≤±2℃
Sealing devices:
●Traverse-sealing heating device: 3 groups with upper and lower electric hot plate in power of 3kw and 3 groups of hot knives with width of 10mm and 20mm as well as length of 640mm installed in traverse sealing
●Cooling device for traverse-sealing: 1 group with length 640mm
●Longitudinal-sealing heating device: 6 groups with upper electric hot plate in power of 3.5kw and 4 groups of 10mm hot knives 800 equipped with 10.20.20.10
●Cooling device for longitudinal-sealing: 6 sets with length of 480mm
Accessory:
●Feeding speed: 35 m/min (range by bag length)
●Main transmission structure: coaxial eccentricity
●Main motor: AC servo motor in power of 3500w, and planetary gear reducer i:11
●Traction device: protraction with 2kw AC servo, mid-traction with 2kw AC servo and the servo adopted in backward traction keeps synchronous to mid-traction, totally 3 sets
●Scrap rewinding machine: 1 set
●Cutter: with functions of servo cutting and twice cutter for servo with switched by electrical equipment
Machine parameters:
●Machine body is in white and under green covers
●Voltage: three-phase alternating current with 380V 50Hz
●Total power: 60kw
●Dimension: length*width*height 13000*2000*1930mm
●Weight: 9000kg
