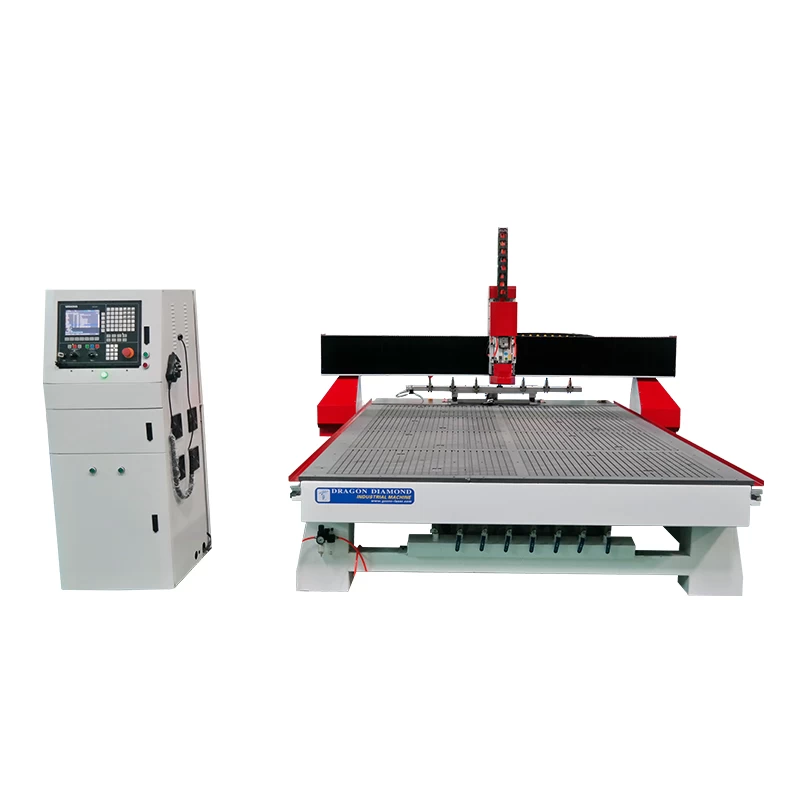

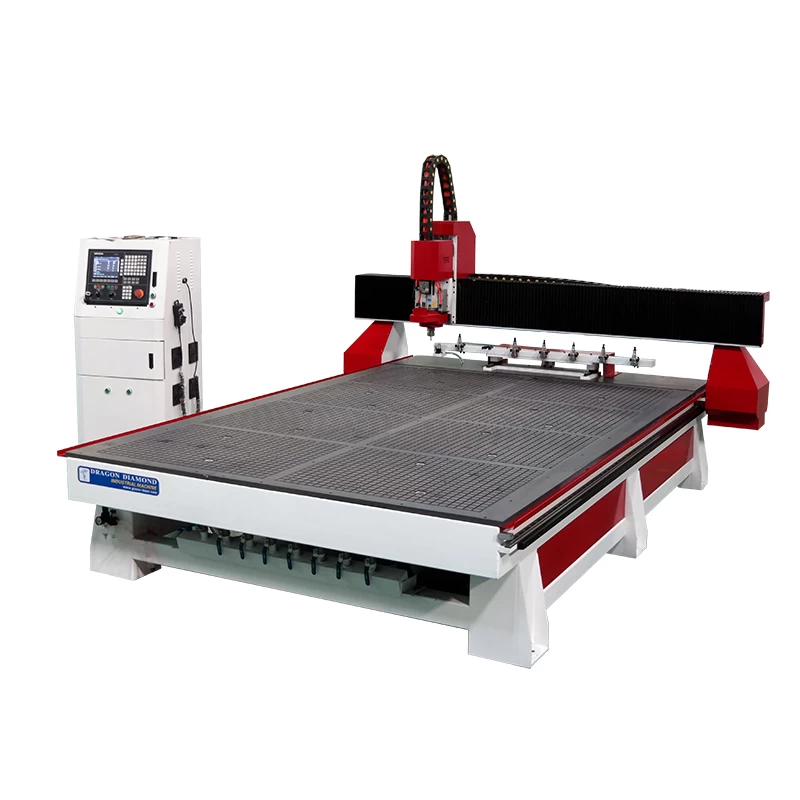

Automatic Tool Change Atc CNC Wood Engraving Machinery
PRODUCT PARAMETER
|
X,Y,Z Working Area
|
2000x3000x200mm
|
|
Table Size
|
2050X3050mm
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
X,Y,Z Repositioning Accuracy
|
±0.03mm/300mm
|
|
Table Surface
|
Vacuum and T-slot Combined
|
|
Frame
|
Heavy Steel Tube Structure
|
|
X,Y Structure
|
Rack and Pinion Drive,Hiwin Rail Linear Bearings
|
|
Z Structure
|
Hiwin Rail Linear Bearings and Ball Screw
|
|
Max-Power Consumption
|
(Without Spindle) 4.5Kw
|
|
Max.Rapid Travel Rate
|
15m/min
|
|
Max.Working Speed
|
10m/min
|
|
Spindle Power
|
9.0KW
|
|
Spindle Speed
|
0-24000RPM
|
|
Drive Motors
|
Yaskawa Servo Motor
|
|
Working Voltage
|
AC380V/50/60Hz,3PH(Option220V))
|
|
Command Language
|
GCode
|
|
Operating System
|
Shanghai Wei hong NK 260 Controller
|
|
Computer Interface
|
USB/Ethernet
|
|
Collet
|
ER32
|
|
Flash Memory
|
512M
|
|
X,Y Resolution
|
<0.03mm
|
|
Software Compatibility
|
Type3/UcancameV9software(Option:Artcamsoftware)
|
|
Running Environment Temperature
|
0-45 Centigrade
|
|
Relative Humidity
|
30%-75%
|
|
Packing Size
|
3750*2280*1950mm
|
|
N.W
|
1500KG
|
|
G.W
|
1700KG
|
|
Optional Parts
|
Simens Control system
Dust Collector System
Rotary System
Mist-cooling System
|
PRODUCT DETAIL
PRODUCT ACCESSORIES
1.High Quality Spindle

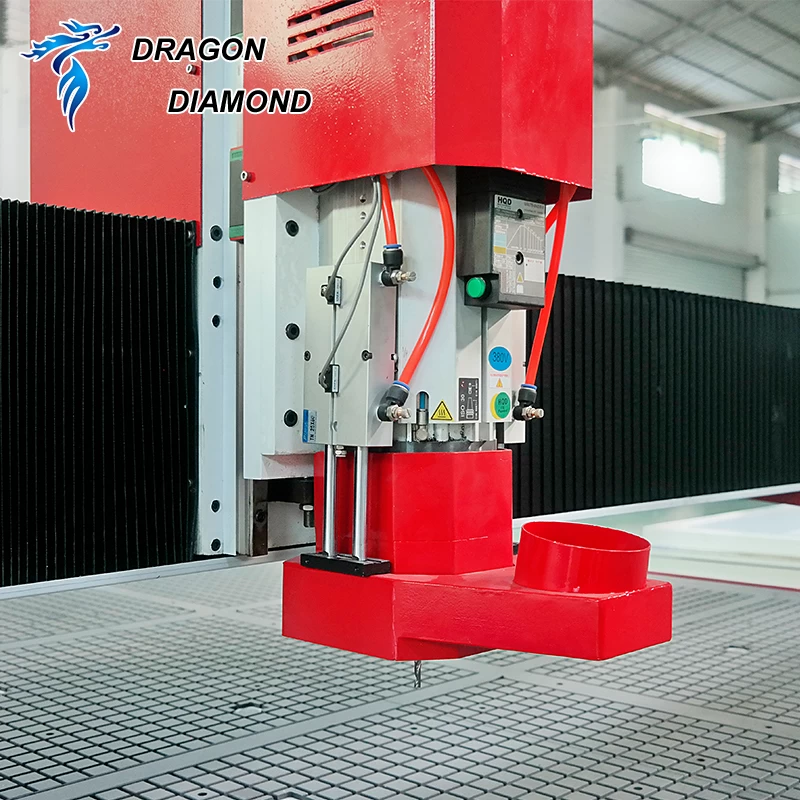

Imported Italian HSD cooling spindle,stable in quality and long working life.
2.Control System
Shanghai Weihong NK260 Controller.
3.Guide Rail and Linear

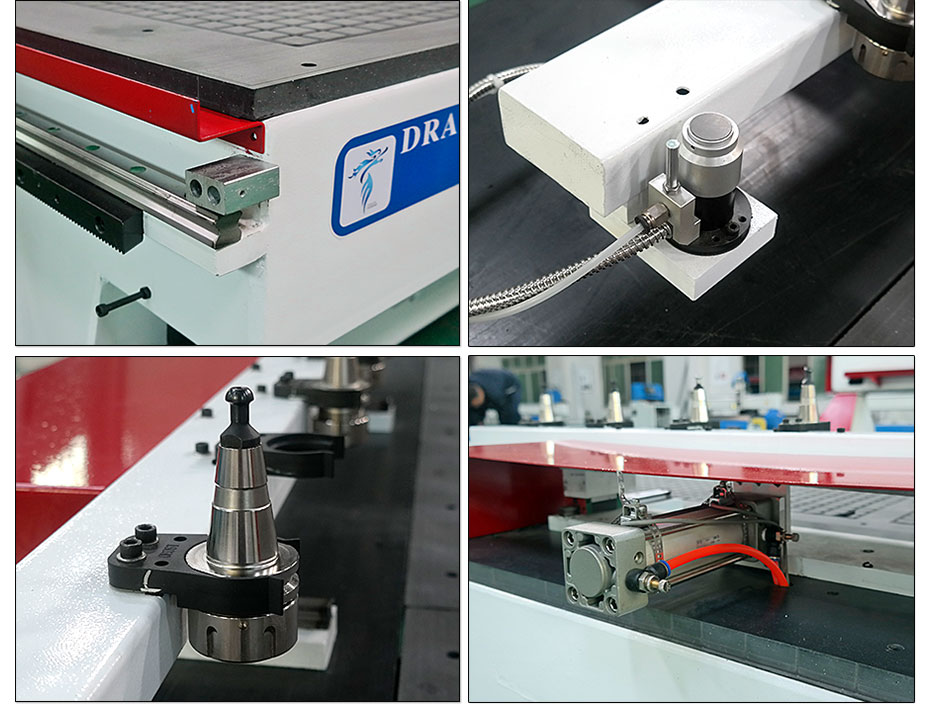

High precision Taiwan HIWIN HGH25 linear guide rail and slider block.

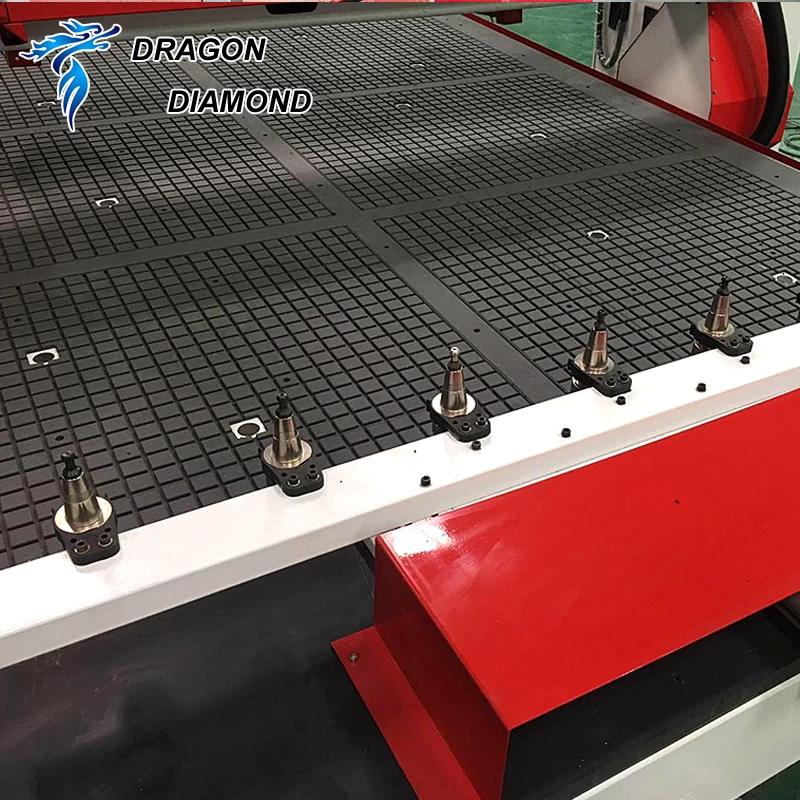

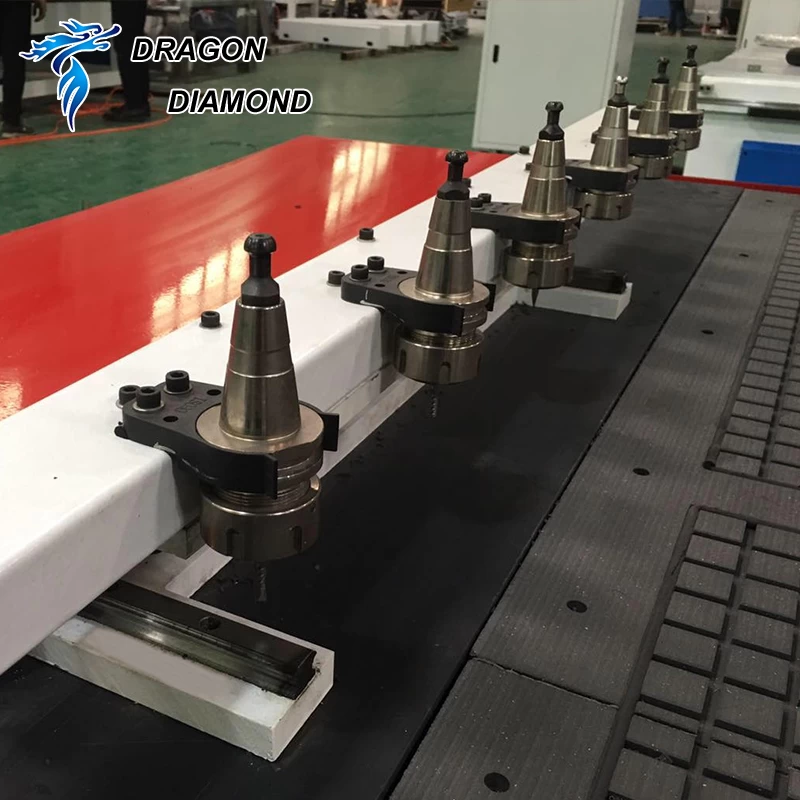

Linear type auto changing system,save more time than manual tool changing.
4.Servo Motor
Yaskawa servo motor,it's an AC drive with higher performing and smooth running.

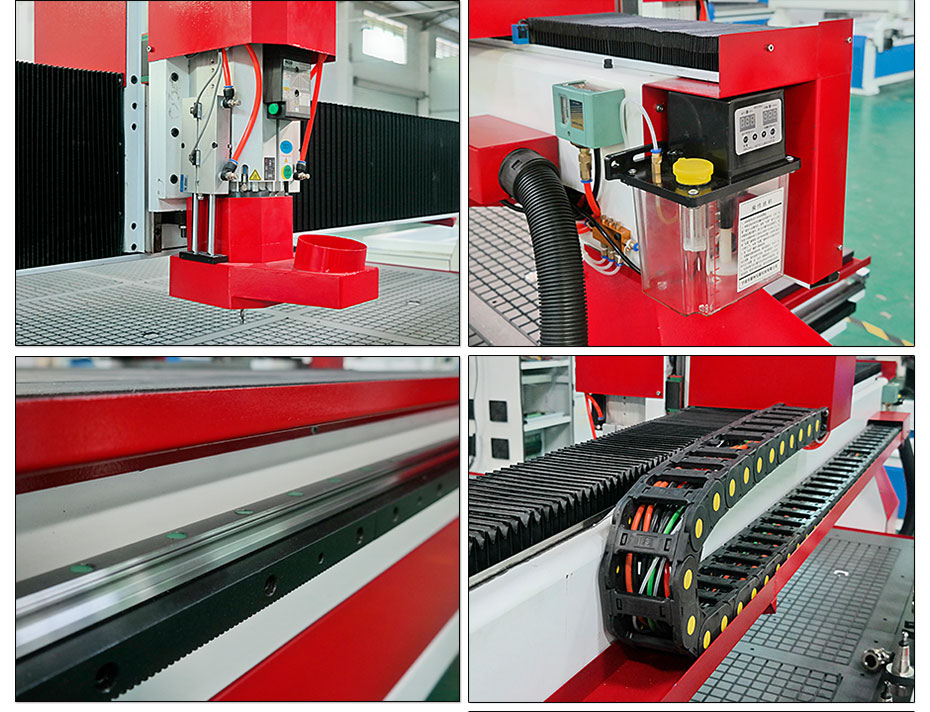

5.Oil Pump
Auto oilling system,easy to operate by pressing one key.
6.Vacuum Table
Vacuum table can absorb the materials,save the plate loading and unloading time.
