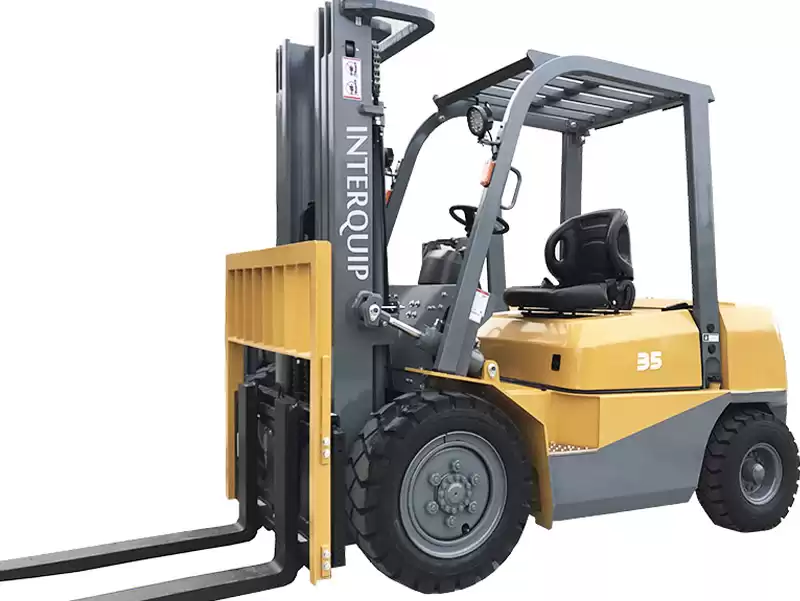

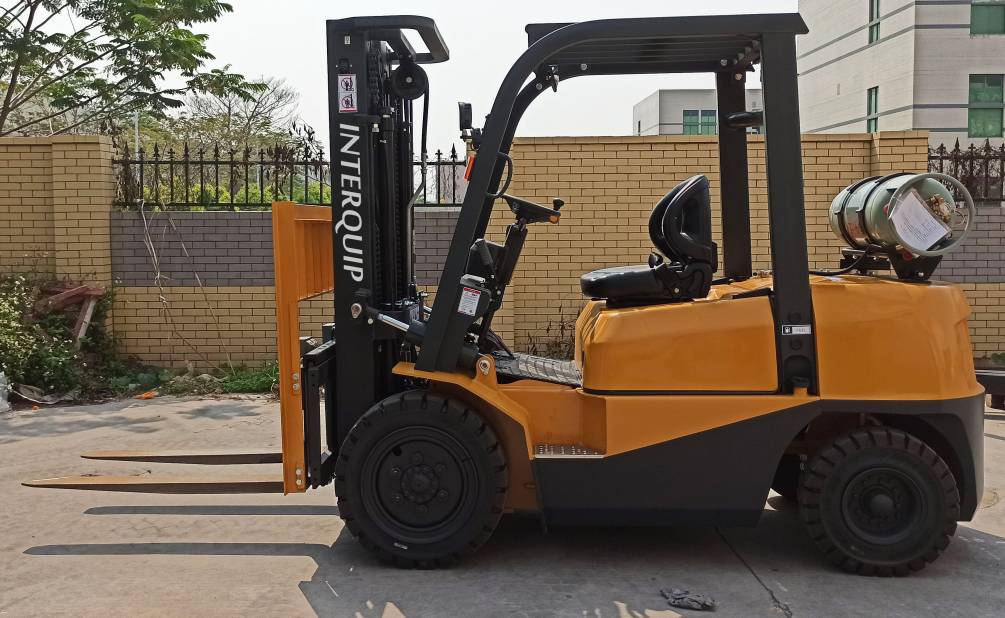

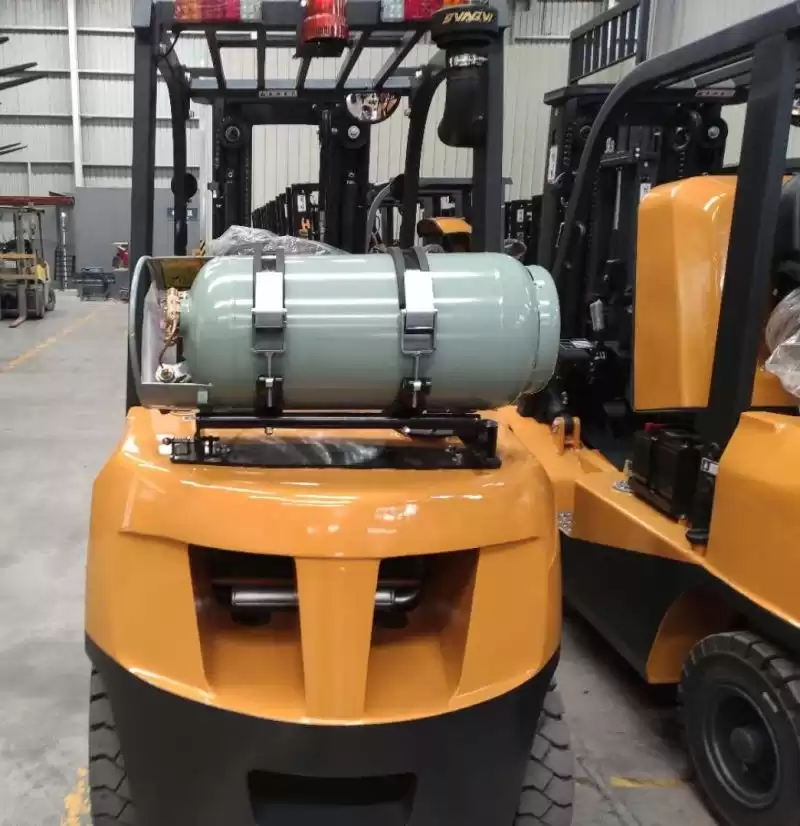

A Series 3.5 Ton LPG&Gasoline/Petrol Forklift Truck
Rated Capacity: 3.5 Ton/ 3500 kg
Engine: Nissan K 25
Lifting Height: 3-6 m (Duplex/Triple)
Tyre: Pneumatic Tyre/Solid Tyre
Specifications:
|
Model
|
UNIT
|
FG35T
|
|
Specifications
|
Power Unit
|
|
LPG & Gasoline
|
|
Operator Type
|
|
Driver/seat
|
|
Transmission Box Type
|
|
Electronic hydraulic transmission
|
|
Rated Capacity
|
kg
|
3500
|
|
Load Center
|
mm
|
500
|
|
Max. Lifting Height
|
mm
|
3000
|
|
Tyre Type
|
|
Pneumatic Tyre
|
|
Tyre Number(Front/Rear)
|
|
2/2
|
|
Tyre Size (Front/Rear)
|
|
28×9-15-14PR/6.5-10-11PR
|
|
Performance
|
Lifting Speed (Loaded/Unloaded)
|
mm/s
|
500/550
|
|
Lowering Speed (Loaded/Unloaded)
|
mm/s
|
480/450
|
|
Travelling Speed (Loaded/Unloaded)
|
km/h
|
19/20
|
|
Max. Gradeability (Loaded)
|
%
|
21
|
|
Max. Drawbar Pull (Loaded)
|
n
|
18
|
|
Mast Tilting Angle (Fwd/Bwd)
|
deg
|
6/12
|
|
Free Lifting Height
|
mm
|
150
|
|
Turning Radius
|
mm
|
2460
|
|
Dimensions
|
Overall length (without fork)
|
mm
|
2760
|
|
Overall Width
|
mm
|
1240
|
|
Overhead Guard Height
|
mm
|
2130
|
|
Fork Size (LxWxT)
|
mm
|
1220×125×50
|
|
Mast Height (Fork lowered)
|
mm
|
2140
|
|
Battery(Voltage/Capacity)
|
V/Ah
|
12/90
|
|
Truck Weight
|
kg
|
4610
|
|
Fuel tank capacity
|
L
|
70
|
|
Engine
|
Brand
|
|
NISSAN
|
|
Model
|
|
K25
|
|
Rated Power
|
kw/rpm
|
37.4/2300
|
|
Rated torque
|
n-m/rpm
|
176.5/1600
|
|
Number of cylinder
|
|
4
|
|
Displacement
|
|
2.49
|
