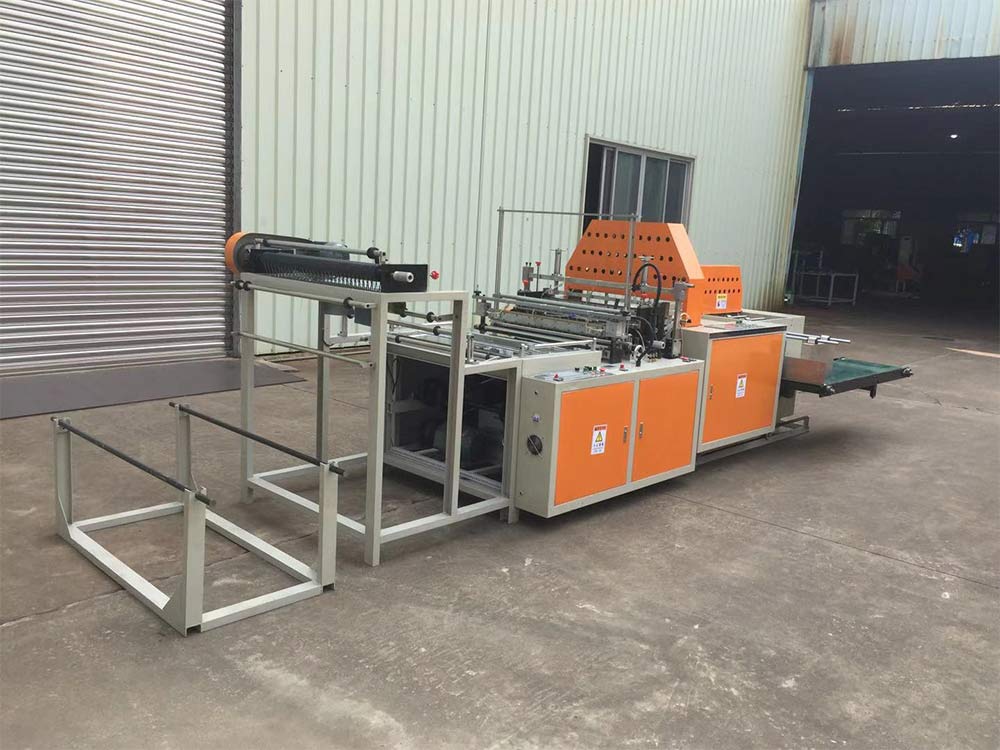

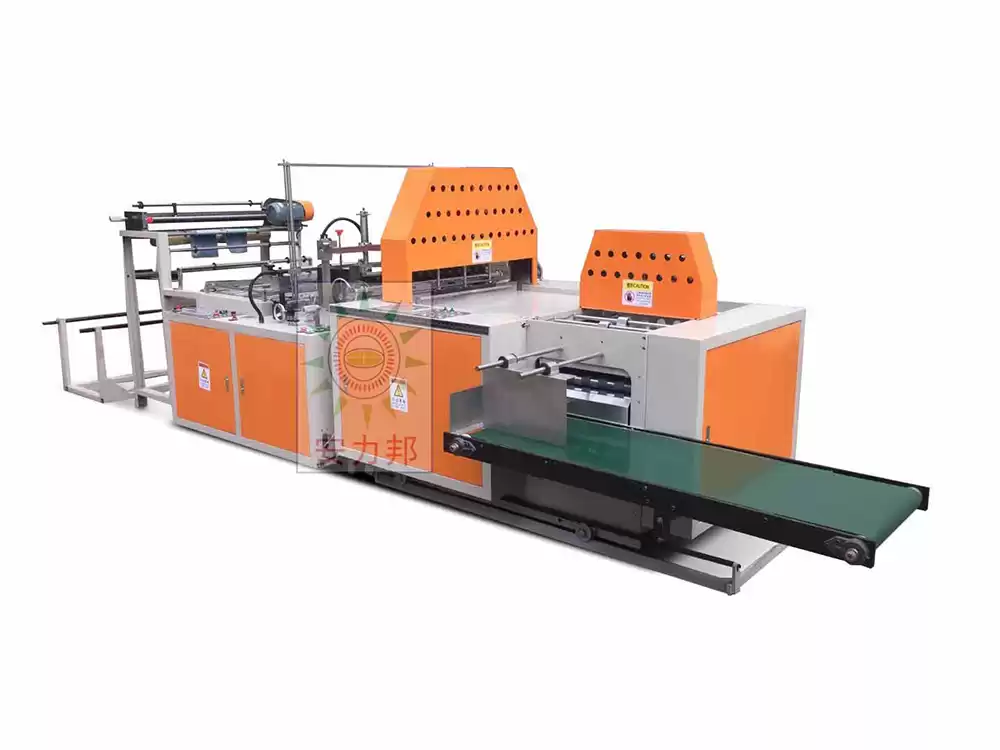

Automatic Triple folded Plastic Bag Making Machine

Simple operation, reasonable design, accurate bag making, stable running

Machine Characteristics

The whole machine adopts full computer touch control system, Length setting controlling with Delta(TW) AC servo motor.
Arbitrary length setting, color photocell automatic tracking, accurate, stable, automatic stop when missing printing mark. With a puncher holder on machine, Hole puncher is optional.
The machine is widely used in various industrial flat packaging pockets.

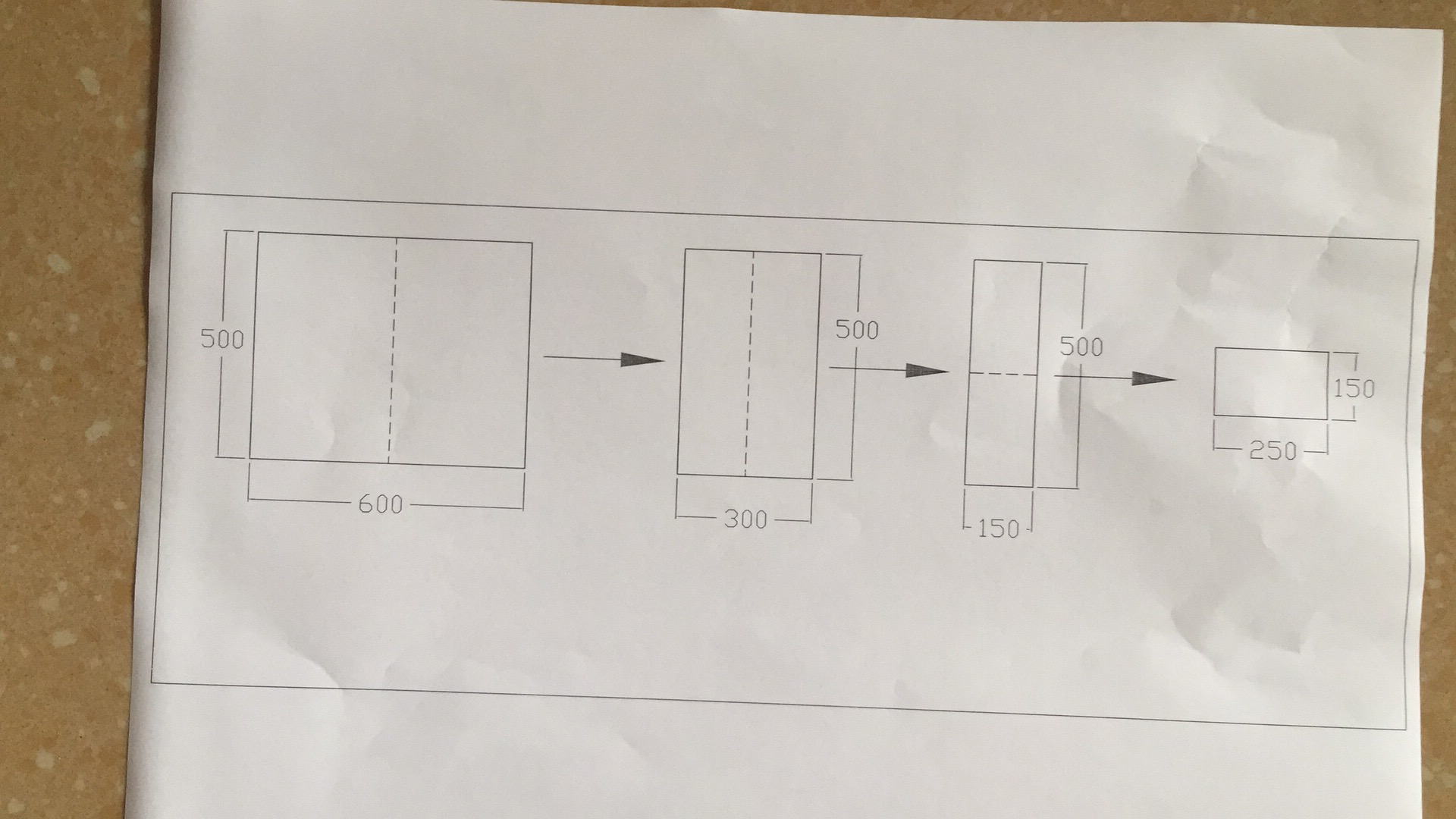

Three-folding machine host frequency conversion motor 1.5KW, three-folding frequency conversion motor 1.5KW, pneumatic control folding bag forming then conveyor belt conveyor finished bags.
Control panel -Touch screen control.

Technical Parameters

Model	Unit	35 inch
Model	Unit	35 inch
Max sealing & cutting width	MM	850
Max sealing & cutting length	MM	1200
Min sealing & cutting length	MM	600
Max sealing & cutting thickness	MM	0.01-0.06
Length error	MM	0.3-0.5
Output	PCS/MIN	50-120
Start AC Motor with brake	KW	6 poles 1.5
DELTA servo system	KW	1.5
Rear feeding AC motor with frequency conversion	W	550
Electric heat	KW	2
Machine standby power	KW	5.1
Output voltage		AC220V/50HZ
Mechanical dimensions (LWH)	CM	Bag Cutting 195150140
Mechanical dimensions (LWH)	CM	Bag Folding 180170120
