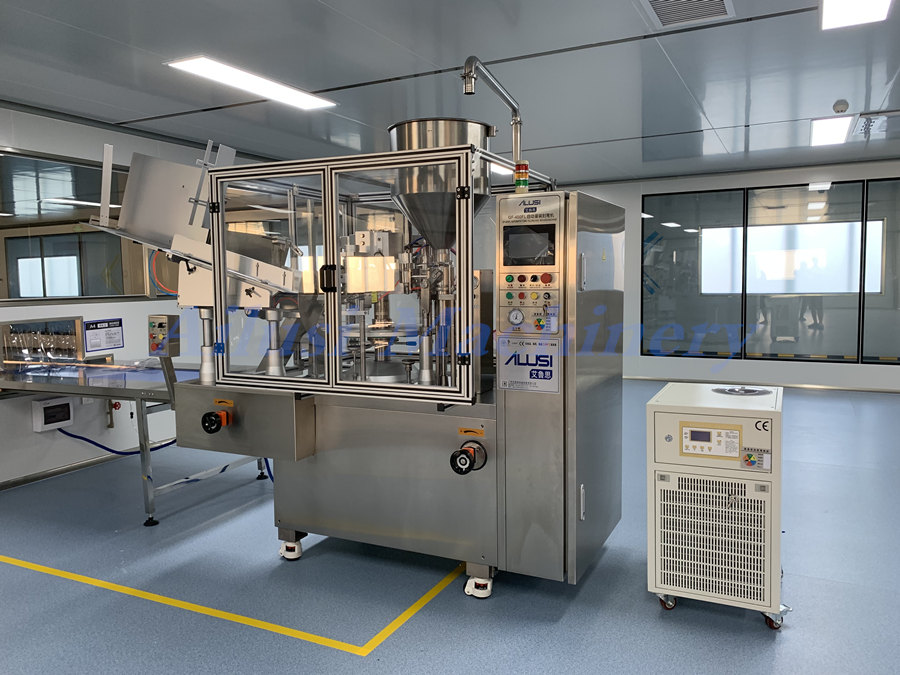

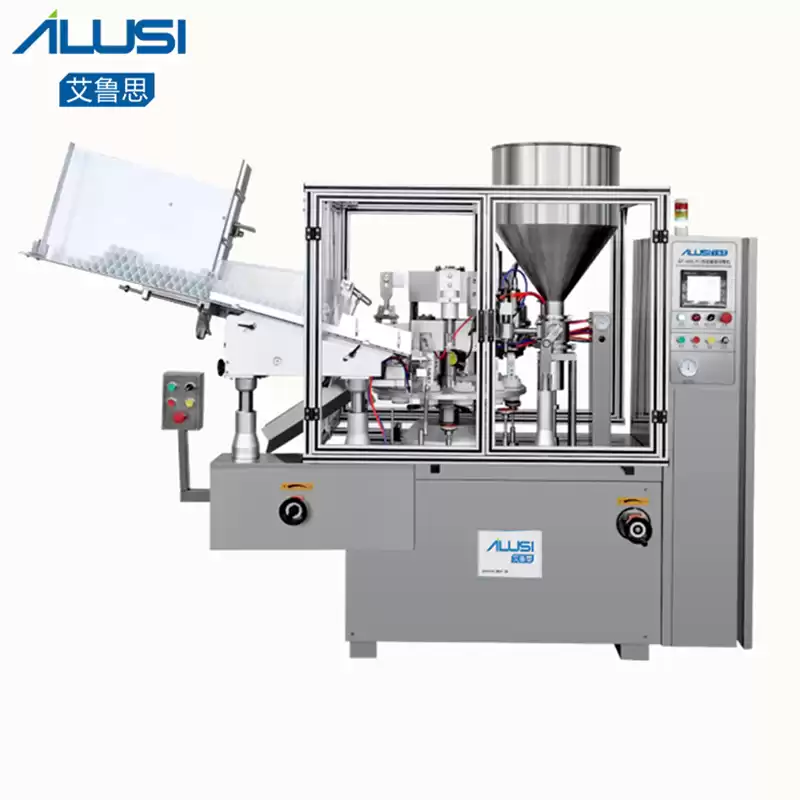

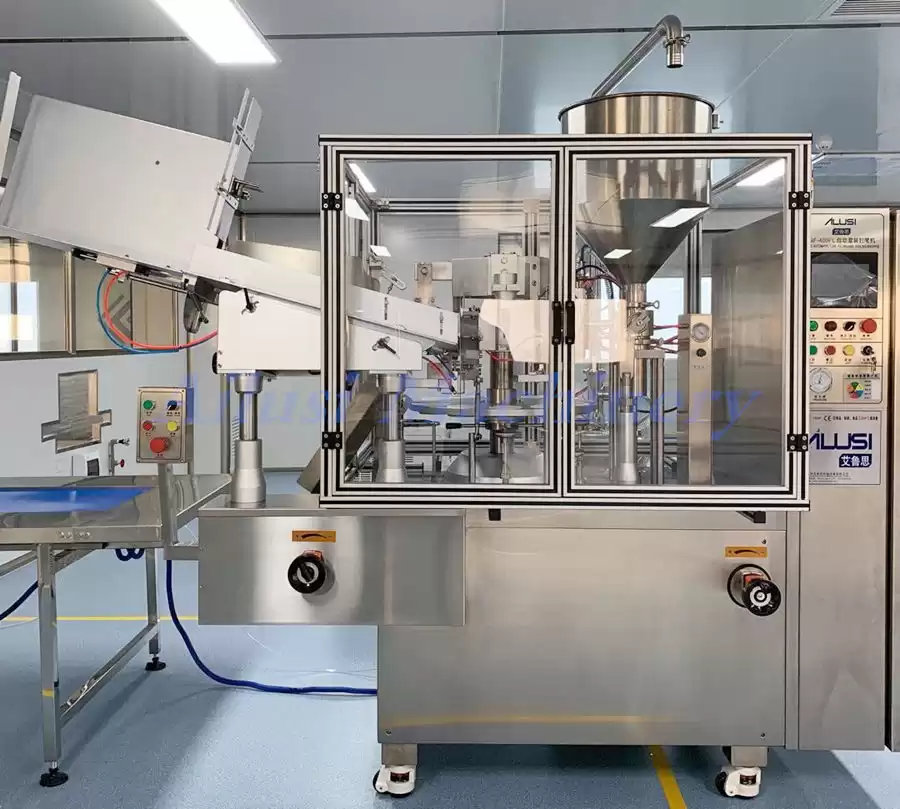

This Tube Packing Machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine.
Main Features:

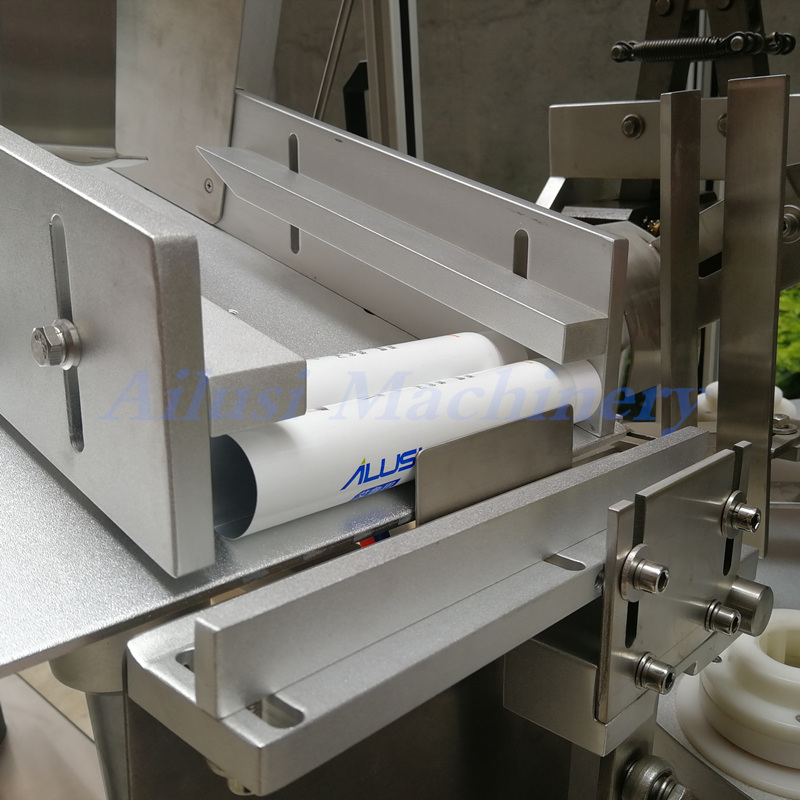

1) Tube Filling Machine according to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

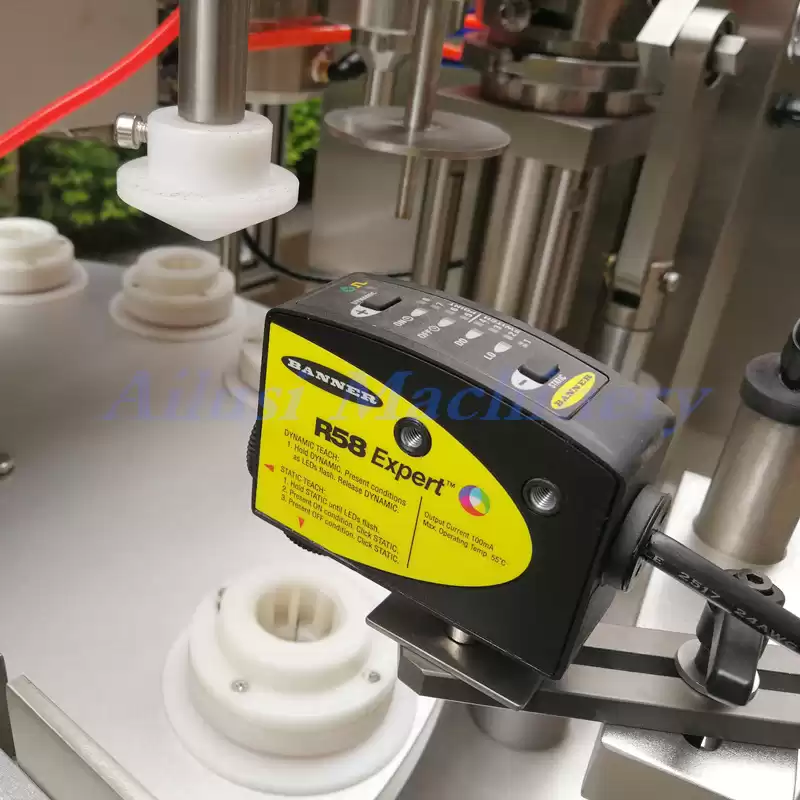

2) The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
3) Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

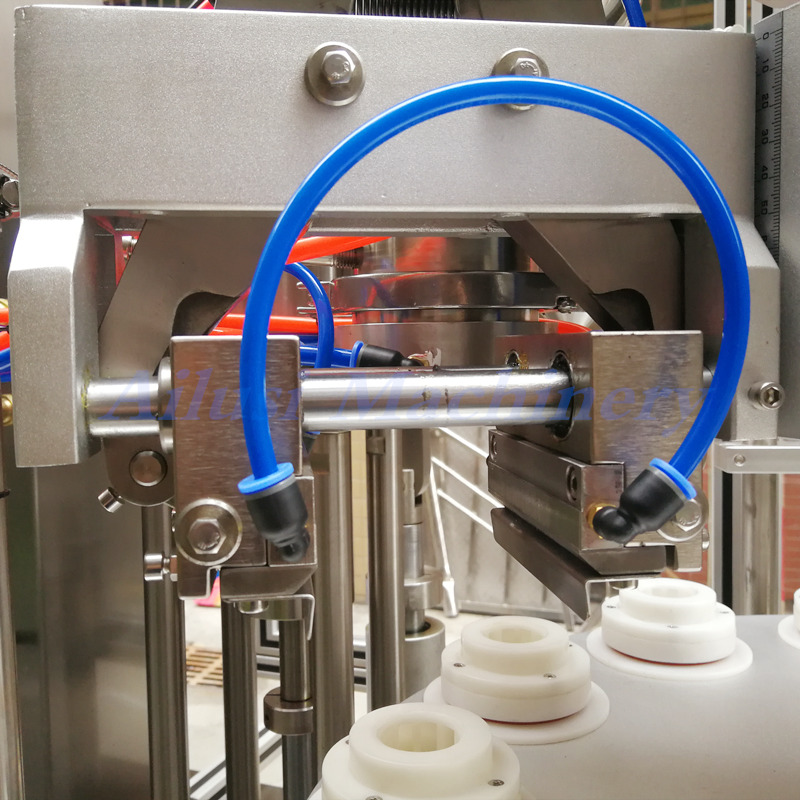

4) Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect

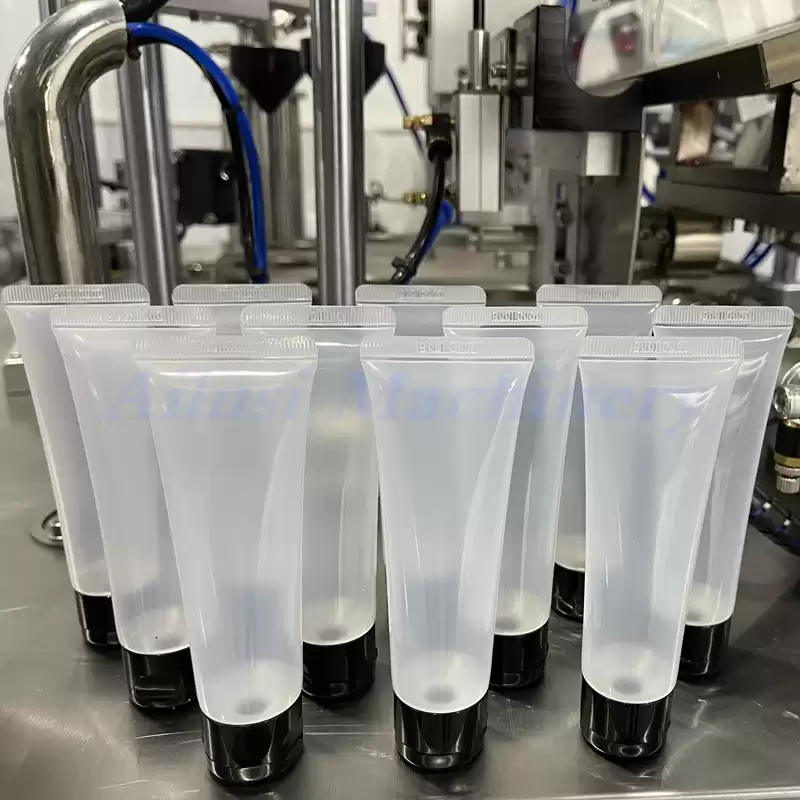

5) Tube filler is suitable for Aluminum, Plastic, LDPE, HDPE etc.
6) All contact parts are high quality 316L stainless steel to meet GMP standard. Double Jacketed Temperature Control Hopper and Agitator are available as options.
7) Recommended with Storage Tank, Feed Pump, Toothpaste Cartoning Machine
|
Function
|
Filling and sealing
|
|
Material
|
SUS316L & SS304
|
|
Tube diameter
|
φ15—φ60
|
|
Tube length
|
60—250（customizable）
|
|
Filling volume
|
5—400ml/pcs（adjustable）
|
|
Product capacity
|
1800—4000 pcs/h（adjustable）
|
|
Working Position
|
12 Pcs. One size one mold.
|

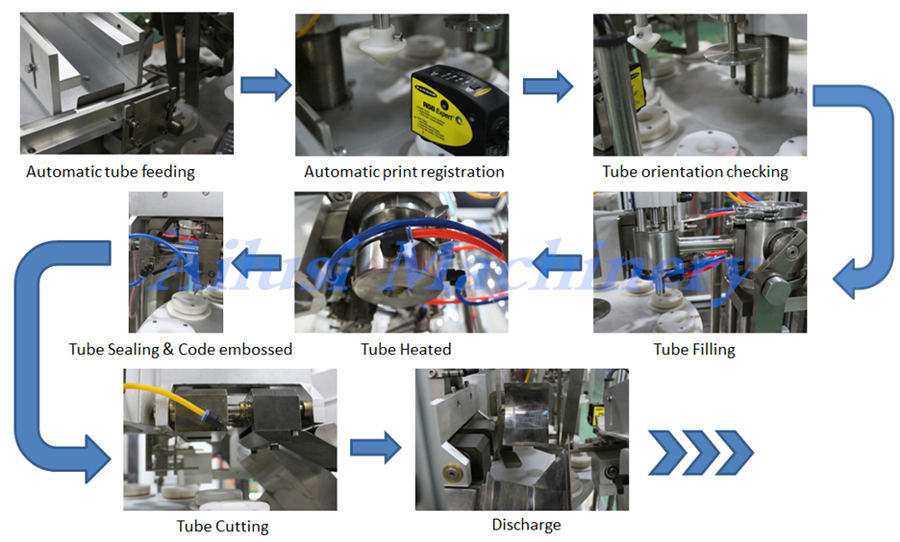

Processing of filling and sealing machine:
Automatic feeding--Automatic print registration--Tube orientation checking--Tube filling-tube heated--Tube sealing&Code embossed--Tube cutting-Discharge
Application:
It can be used for pharmaceuticals, food products, cosmetics, and chemicals.
* Cosmetic: Face Cleaner, Hand Cream, Eye Cream, Sunscreen, Acne cream, Hair removal cream, Body lotion, Whitening Cream, etc.
* Food: Mayonnaise, Cheese, Peanut butter, etc.
* Pharmaceuticals: Ointment, Unguent, Paste, Toothpaste etc.
* Chemicals: Painting, Shoe polish etc.
Package & Delivery:
To ensure the quality of our service, we will follow the standard package upon delivery:
1. All products before delivery should be tested by assembly and commissioning engineers. Our salesman need to send the tested video to the customer to ensure working well of the machines. Precision parts need to be packed in film or carton.
2. All products are packed in wooden boxes. Firmly fix the edge of the foot of the equipment to adapt the machine to the requirements of loading and uploading.
Our Servers:
Ailusi provide Turn-key Project Service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
