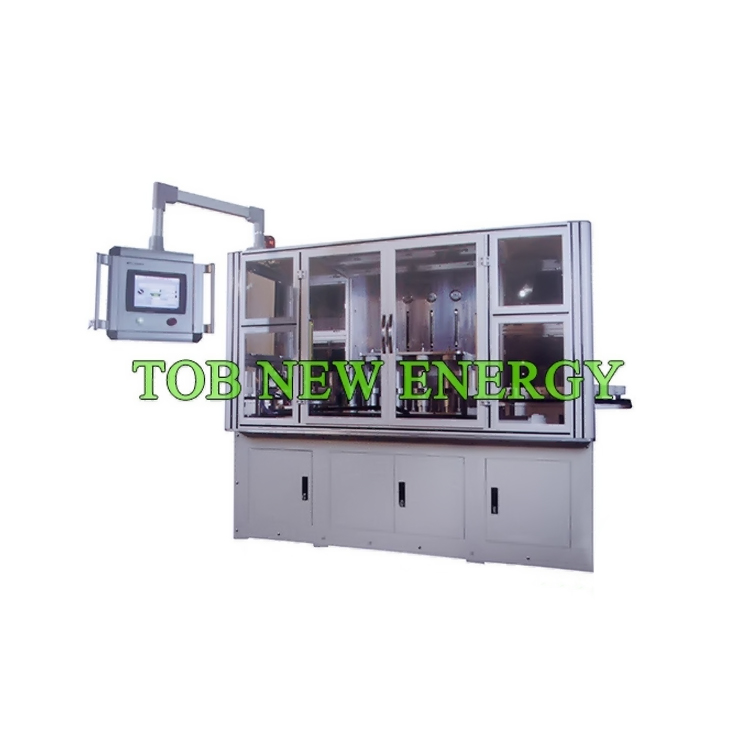

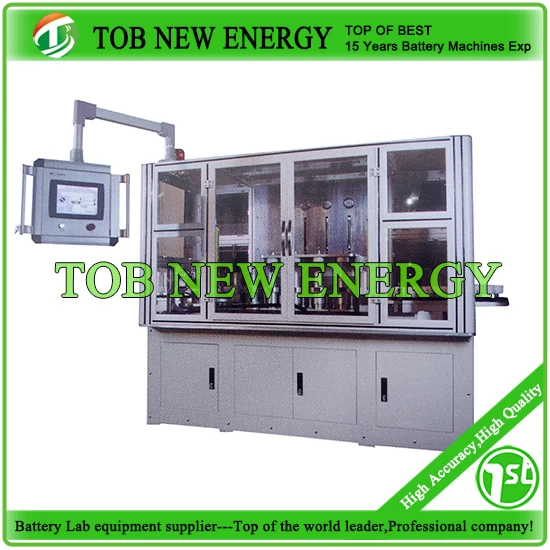

Automatic vacuum liquid injection machine for supercapacitor and lithium ion battery
SPECIFICATIONS
Functional overview
The device is suitable for vacuum liquid injection of supercapactior and lithium ion power battery.
Functional characteristics
1.Adopt annular guide rail as the receiving or discharging mechanism,and coordinate with servo manipulator to realize automation feeding.
2.Equipped with the imported two dimensional bar code scanner.The data can be stored and derived, for the convenience of traceability and quality control on the product.
3.Equipped with the imported precsion weighing device to control the weight of the product before and after liquid injection so as to ensure the quality of liquid injection.
4.Equipped with the imported laser positioning device to automatically look for positions for liquid injection holes.
5.The product’s liquid injection height is adjusted to adapt for the product of different specifications.
6.Adopt the imported PLC.Touch screen displays operation,conveniently and quickly.
7.Equipped with security guard shield and safety light grid,with safe and reliable device operation.
8.Case adopts dust-proof glass cover.The device is top-grade and dust-proof.
Technical parameters
|
Power source
|
AC220V/50HZ
|
|
Air source
|
0.4~0.7MPa
|
|
Supercapacitor dimension
|
Φ60*100~140（H）mm/
79(L)*56(W)*200~230(H)mm（customized）
|
|
Pumping speed of the vacuum pump
|
≥8L/min
|
|
The minimum vacuum
|
-98kPa
|
|
Weighing resolution
|
0.1g
|
|
Precison injection fluid
|
±1%
|
