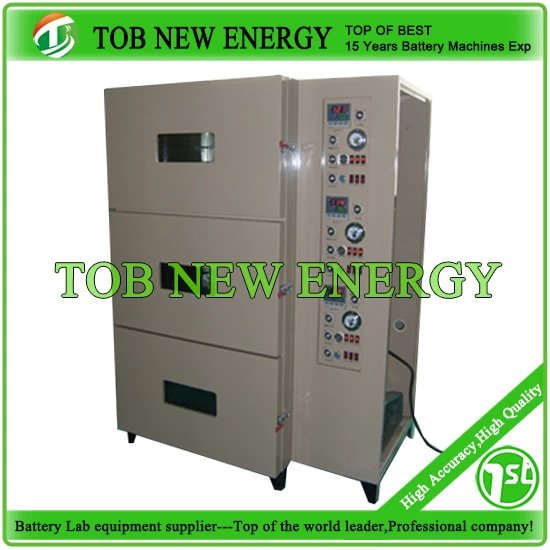

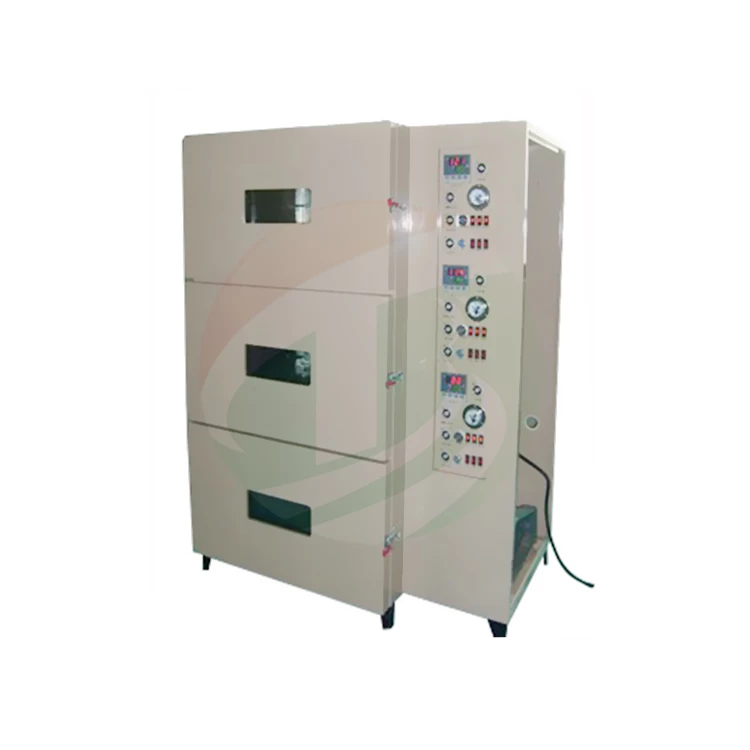

Three Layers Automatic Vacuum Oven For Lithium Battery Material And Electrode Sheet Baking
SPECIFICATIONS
The TOB-SBVO-03APVacuum ovenis specially designed for lithium battery industry production process of vacuum drying equipment, the temperature, vacuum degree, the size of the studio and the barrier height is maximally meet the needs of the lithium battery industry.
Thisvacuum ovenis with Vacuum, pressure, pneumatic automatic programmable control, it is mainly used for Lithium battery materials and electrode sheet vacuum baking for Battery production line.
|
Model
|
Automatic Vacuum Oven For Lithium Battery TOB-SBVO-03AP
|
|
Source voltage
|
AC380V, Three phase 4 wires, 50HZ
|
|
Power
|
4.5kw*3, three layers
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Max current
|
20A
|
|
Working chamber dimension
(H*W*D)
|
300*800*600mm*3layers
|
|
Insulation layer thickness
|
90mm Aluminum silicate fibers
|
|
Working temperature
|
Nichrome wire heated mode, RT+15℃~200℃, With accuracy ±1℃
|
|
Temperature control mode
|
PID adjustment, Intelligent digital display temperature controller
|
|
Vacuum degree
|
≤100pa
|
|
Inner box materials
|
3mm SUS304 Stainless steel
|
|
Outside shell materials
|
1.5mm thickness cold-roll steel sheets
|
|
Structure
|
1 Three working chamber with one vacuum hole, controlled by Solenoid valve separately
2 Open door mode : Three single door, with square observe window
3 With Air switch, over current protection, Over temperature protection.
4 PLC programmable control, 7.0 inch color LCD touch screen display Settings
5 Vacuum, pressure, pneumatic automatic programmable control
|
