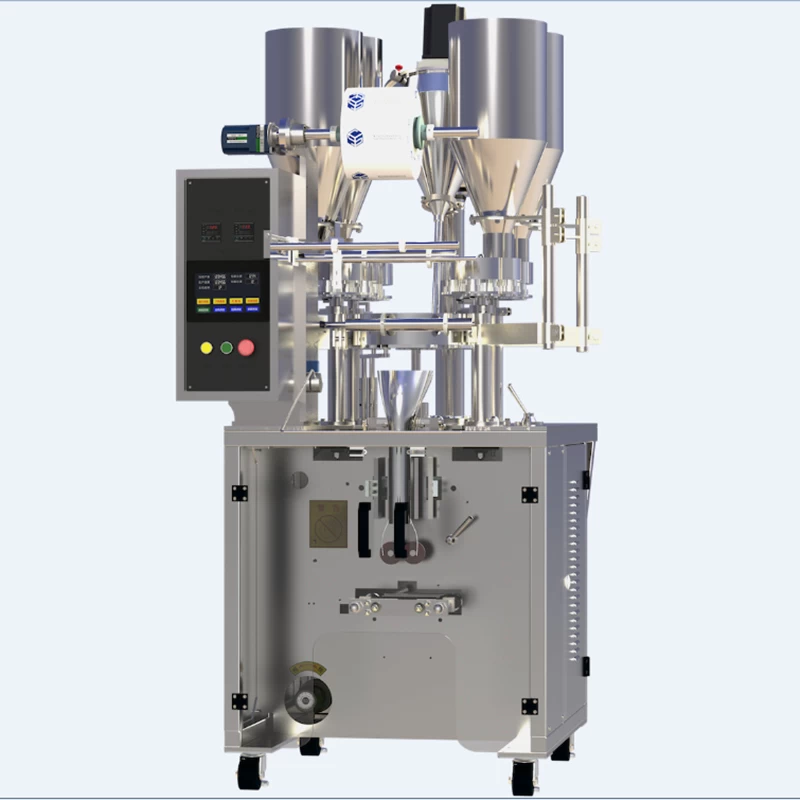

Automatic vertical multi material granule powder sachet packing machine
Customized And OEM Service Available
Detailed introduction
1.This Vertical Multi Material Sachet Packing Machine has a variety of blanking systems, can choose a variety of good flow of particles or powder into the bag at the same time.For example, bear, flower and sugar are packed in one bag by weight.It can be customized to your bag. And can automatically complete the bag-making, measuring, blanking, sealing, cutting, counting, according to customer requirements can be configured to print the batch number and other functions
2.This Granule Packing Machine PLC touch screen operation control, bag length, driving a stepper motor control performance stability * detection accurate adjustment convenient o intelligent temperature controller, PID control, can reduce the error range of temperature control within 1 Š
3.Blanking method: according to the customer demand selection (attached blanking structure)
4.Measuring range: 1-10 g(2-30ml)o for single material
5.Form of sealing: three-side sealing * back sealing * four-side sealing
6.Packaging speed: 30-60 packages per minute (depending on the characteristics of materials)
7.Outer bag size: length: 30-170 (mm)o width: 30-140 (mm)
8.Power source :220V/ 50Hz/ 1.4kw
9.Total weight: about 500 KG
10.Dimensions: 800*1100*1750(mm) (l*w*h)
Electrical configuration
|
NO
|
Name of electrical accessories
|
Brand
|
|
1
|
display
|
Yonghong
|
|
2
|
PLC
|
Yu sheng
|
|
3
|
Temperature control table
|
Hui bang
|
|
4
|
Stepper motor
|
Lei sai
|
|
5
|
switch
|
Chint
|
|
6
|
Proximity switch
|
Kori
|
|
7
|
Solid state relay
|
Meigeer
|
|
8
|
Main motor
|
Thunis
|
|
9
|
Slow down box
|
Jiacheng
|
|
10
|
Color scale sensor
|
Julong
|
|
11
|
Inverter
|
Yonghong
|
