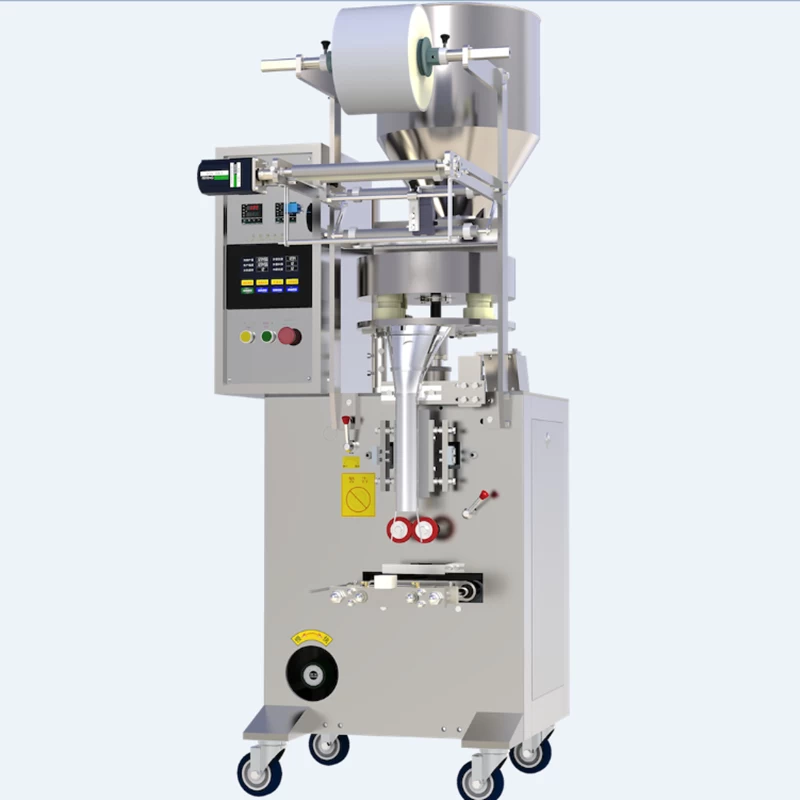

Automatic vertical packing machine aluminum plated plastic film packaging
Customized And OEM Service Available
Detailed introduction
1.This Automatic vertical packing machine aluminum plated plastic film packaging can automatically complete the bag-making, measuring, blanking, sealing, cutting, counting, according to customer requirements can be configured to print the batch number and other functions.Machine is 304/316 stainless steel, in line with GMP factory standard.
2.Adopts PLC touch screen operation control, bag length, driving a stepper motor control performance stability * detection accurate adjustment convenient o intelligent temperature controller, PID control, can reduce the error range of temperature control within 1 Š. Stable operation, low noise, no need of lubricating oil, save electricity.
3.Blanking method: matching according to customer demand (attached blanking structure drawing)
4.Measurement range: 1-100 g(4-300 ml)
5.Packaging speed: 30-60 packages per minute (depending on the characteristics of materials)
6.sealing form: three side sealing x back sealing x four side sealing
7.Size of outer bag: length :30-170(mm) width :30-140(mm)
8.Power source :220V/ 50Hz / 1.4k *
9.Total weight: about 400 KG
10.Dimensions: 740*940*1750(mm) (l*w*h)
Electrical configuration
|
NO
|
Name of electrical accessories
|
Brand
|
|
1
|
display
|
Yonghong
|
|
2
|
PLC
|
Yu sheng
|
|
3
|
Temperature control table
|
Hui bang
|
|
4
|
Stepper motor
|
Lei sai
|
|
5
|
switch
|
Chint
|
|
6
|
Proximity switch
|
Kori
|
|
7
|
Solid state relay
|
Meigeer
|
|
8
|
Main motor
|
Thunis
|
|
9
|
Slow down box
|
Jiacheng
|
|
10
|
Color scale sensor
|
Julong
|
