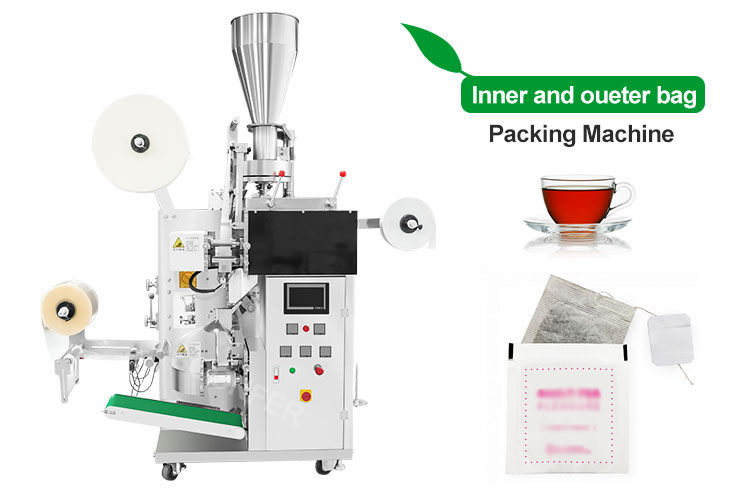

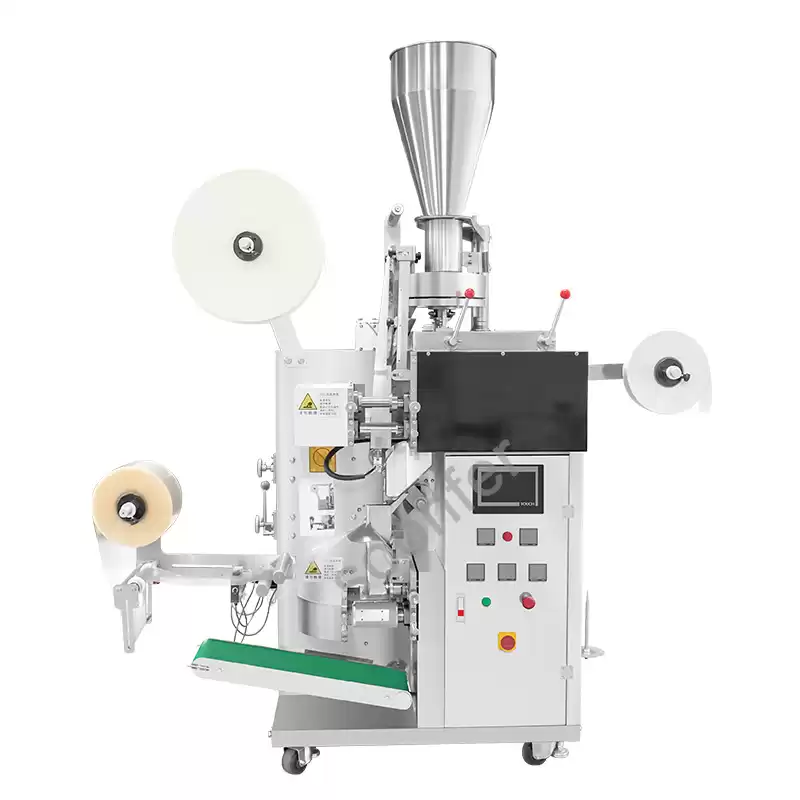

Automatic vertical small pouch inner and outer green tea bag pack packing machine

The automatic tea packaging machine is suitable for the packaging machine of tea, herbal tea, black tea, scented tea, health tea bags and grass roots and other fine particles.



Automatic vertical small pouch inner and outer green tea bag pack packing machine


tea packing machine


Application of tea packing machine

The machine can implement simultaneous packing of inner and outer packs by filling the material into the inner pack first and then putting the inner pack into the outer one.

A tea bag is a square, porous, sealed bag containing dried plant material, which is immersed in boiling water to make a hot drink. Tea bags are commonly made of filter paper or food-grade plastic, or occasionally of silk.Tea bag is commonly used to describe paper or foil packaging for loose leaves.



tea packing machine
Recommend of tea packing machine

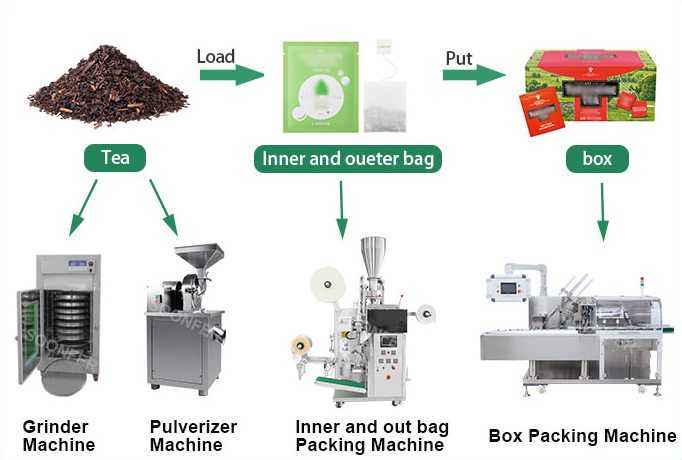

The tea packaging machine can be combined with a dryer, a crusher, and a cartoning machine to form a production and packaging line.

tea bag packing machine


Specification of tea packing machine

Measuring Scope
1-15g
Packing Speed
40bags/min
Inner bag size
L 50-70mm W 45-80mm
Outer bag size
L 80-120mm W 75-95mm
Weight
500kg
Dimension
1750(L)*740(W)*1950(H)mm
Total Power
220V/50HZ/1.9kw
Packing material

Filter paper,thread,composite membrane


Features of tea packing machine

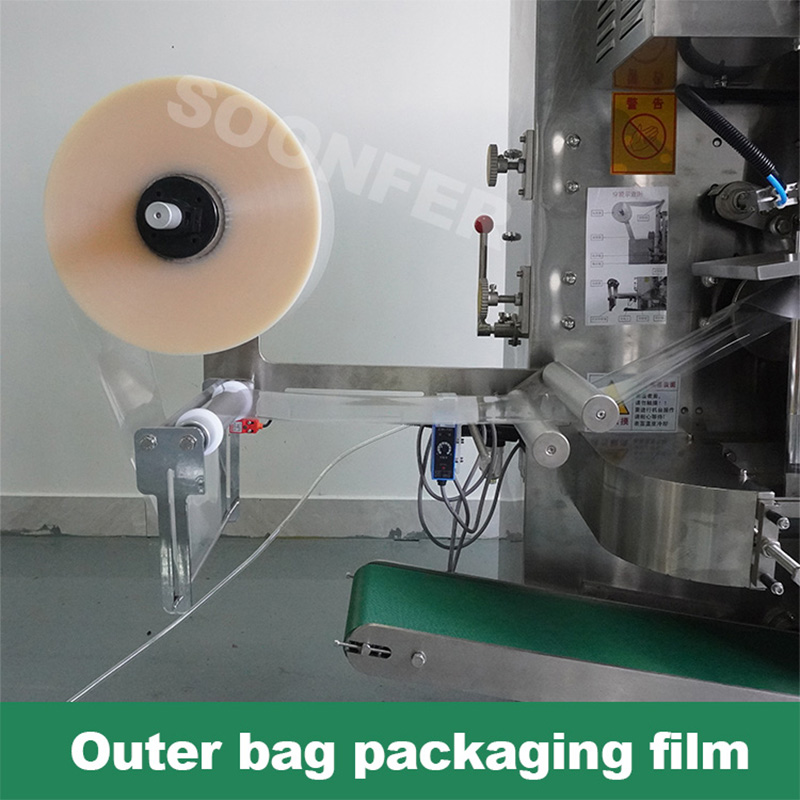

1、Outer sealing paper is controlled by the stepper motor,stable bag length and accurate positioning
2、The machine can automatically finish the load, measuring, bag making,sealing, cutting, counting, finished product conveyor, and other functions.
3、Adopt the importedultrasonic sealing, use the electronic scale metering to cutting-stock, perfect sealing,cutting-stock accuracy.
4、Packing material: filter paper,thread,composite membrane.
