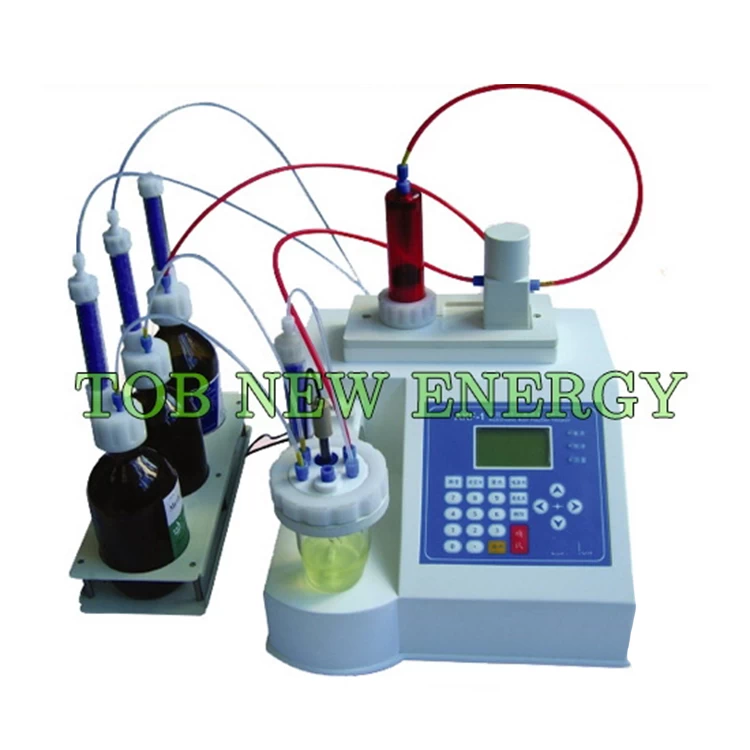

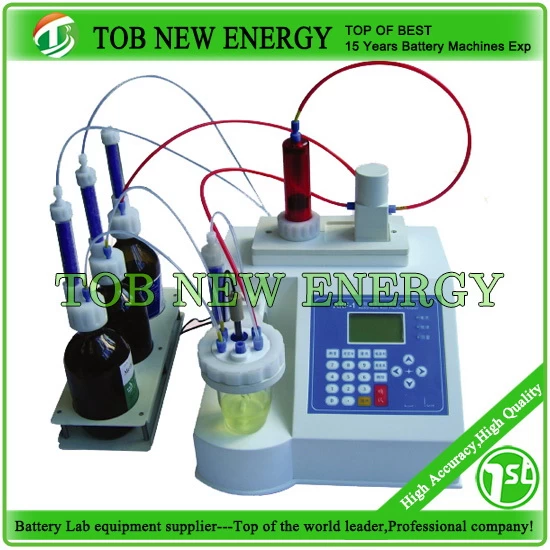

Automatic Volumetry Karl Fischer Moisture Analyzer For Lithium Battery Electrolyte Moisture Analysis
SPECIFICATIONS
1 TOB-AKF-1 Karl Fischer Moisture Analyzer is an Intelligent moisture tester adopting volumetry method. it is mainly used for scientific research, produce, and education field, with high accuracy and simple operation.
2 It can be used for analyzer water in many industries fields such as Medicine, organic solvents, industrial salt, petrochemical industry, chemical fertilizer, agricultural medicine, dyes, food and beverage, surface active agent, cosmetics and so on.
3 This Karl Fischer Moisture Analyzer used for lithium battery industry mainly used for powder materials and electrolyte moisture analyzer
|
Model
|
Volumetry Method Karl Fischer Moisture Analyzer TOB-AKF--1
|
|
Testing range
|
0.003-100%
|
|
Measuring resolution
|
1ug
|
|
Measuring repeatability
|
99.7%, (10mg)
|
|
Max error
|
≤1%
|
|
Testing time
|
Average 2-5min
|
|
Date storage
|
100, can be expanded
|
|
Buret
|
20 ml Auto buret
|
|
Titration control precision
|
0.001ml
|
|
Electrode connect
|
Double platinum electrode
|
|
Display mode
|
LCD, Chinese or English
|
|
Data interface
|
RS-232C, USB, WEB
|
|
Working humidity
|
≤80%
|
|
Working temperature
|
5-40℃
|
|
Source voltage
|
220V / 50HZ, can work with voltage transformer
|
|
Power
|
50W
|
|
Dimension(L*W*H)
|
400*350*280mm
|
|
Weight
|
5.5kg
|
