Auxiliary motor controller (Oil pump/ Hydraulic pump/ Gas pump/ Power steering pump/ DCDC/ Power distribution

Meet various vehicles applications

By the end of June 2018, more than 200,000 units/sets have been used in various vehicle types;

Passenger vehicle (bus/commuter): small sea lion, Coster, 8.5m-12m passenger bus, 18m dual source trolleybus

Trucks: mini van and mini truck under 2.5 tons, 3.5-7.5 tons light trucks, 18-55 tons heavy trucks

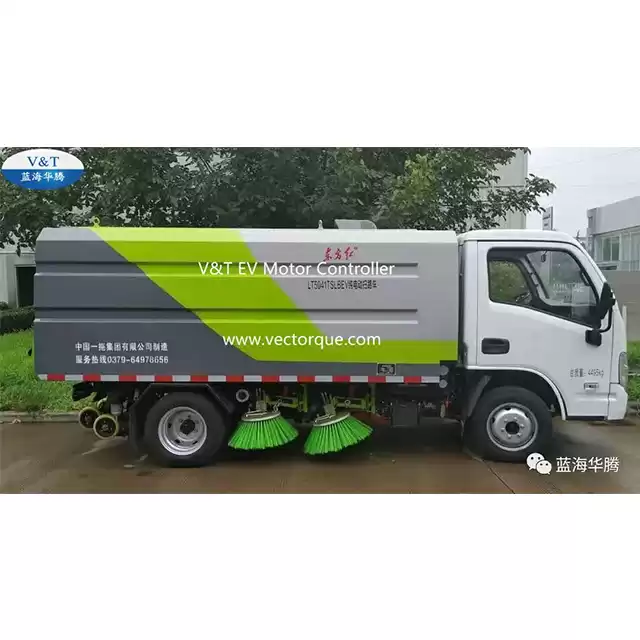

Special-Purposed vehicles: sanitation truck, sprinkler truck, dust suppression truck, dock tractor, tunnel engineering tractor

Passenger car: A-class sedan, SUV


  • PackageStandard Export Package Carton/Wood
  • TransportationExpress · Sea freight · Land freight · Air freight
  • Delivery Time14-30 working days for customized EV motor controller
  • Warranty24 Months
  • CustomizedYES
  • Term of paymentT/T, L/C, D/P
  • Sample freight payerBuyer
  • Sample provideYES
  • AvailabilityOEM/ODM, Minmum Order Request
  • Place of OriginChina
  • Shipping PortShenzhen
  • CertificationCE, EAC, ISO9001, OHSAS18001, TS16949, SGS

V6-H-4D5.5G & V6-H-4D5.5G

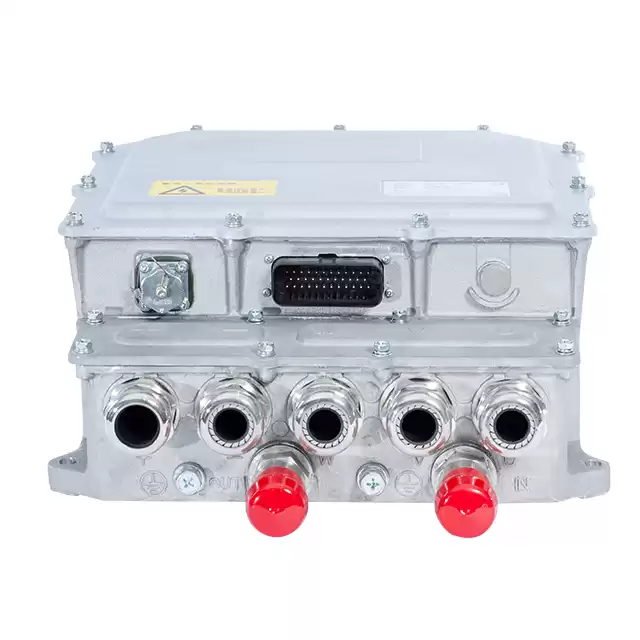

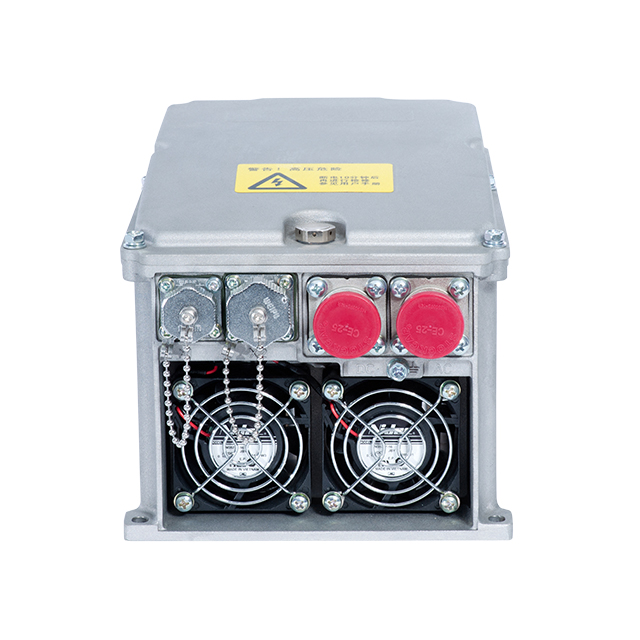

Four-in-one Auxiliary Controller (Oil pump + Gas pump + DC/DC + Power distribution)


Technical Parameter

Adaptable motor type

Permanent magnet synchronous motor、Three phase asynchronous motor

Applicable vehicle type

Medium BusLarge BusLogistics Vehicle

Product type

V6-H-4D5.5G & V6-H-4D5.5G

Rated input voltage

DC 540V

Rated power

5.5kW & 5.5kW & 3kW

Input voltage range

DC ;350V~750V

Rated output current

13A & 13A , DC ;27.5V/110A

Maximum output current

19.5A & 19.5A , DC 130A

Output frequency range

0~300Hz

Protection level

IP67

Cooling type

Water cooling

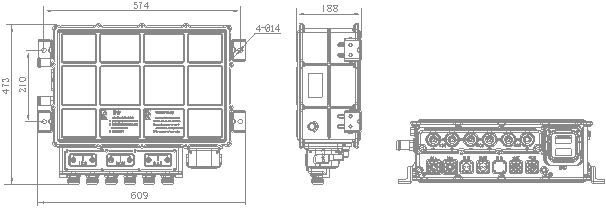

Outline dimension

609*473*188(mm)

Weight

35kg



Outline dimension



Application












Shenzhen V&T Technologies Co.,Ltd. is committed to R&D, manufacturing, inverters, servo drives, electric vehicle motor controllers, etc. Please browse online now for more information.
